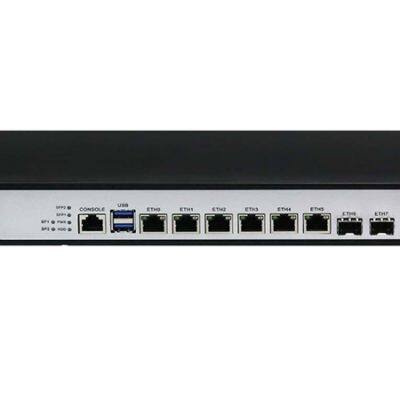

Cyber security appliance Network application Intel J6413 CPU 6x 2.5G RJ45 and 2x SFP LAN
Network cyber security appliance, 1u chassis, rackmoutable. Its motherboard with Intel J6413 CPU, 6x 2.5G RJ45 LAN, 2 channles LAN Bypass, 2x SFP Gbe LAN, one SATA and one mSATA interface, single or redundant power supply.
Available models:
| Model NO | CPU | Max. RAM | Storage | LAN ports (Initial) | Max.LAN ports (Scalability) | Bypass | NMCs |
| F64817 | J6413 processor | 32GB | SATA, CF, mSATA | 6x 2.5G + 2x SFP | 16x by NIC (SFP, RJ45) | 2 groups | 2 NMCs |
| F64811 | J6413 processor | 32GB | SATA, CF, mSATA | 6x 2.5G + 2x SFP | None | 3 groups | None |
| F64612 | J6412 processor | 32GB | SATA, CF, mSATA | 6x 2.5G | None | 4 groups | None |

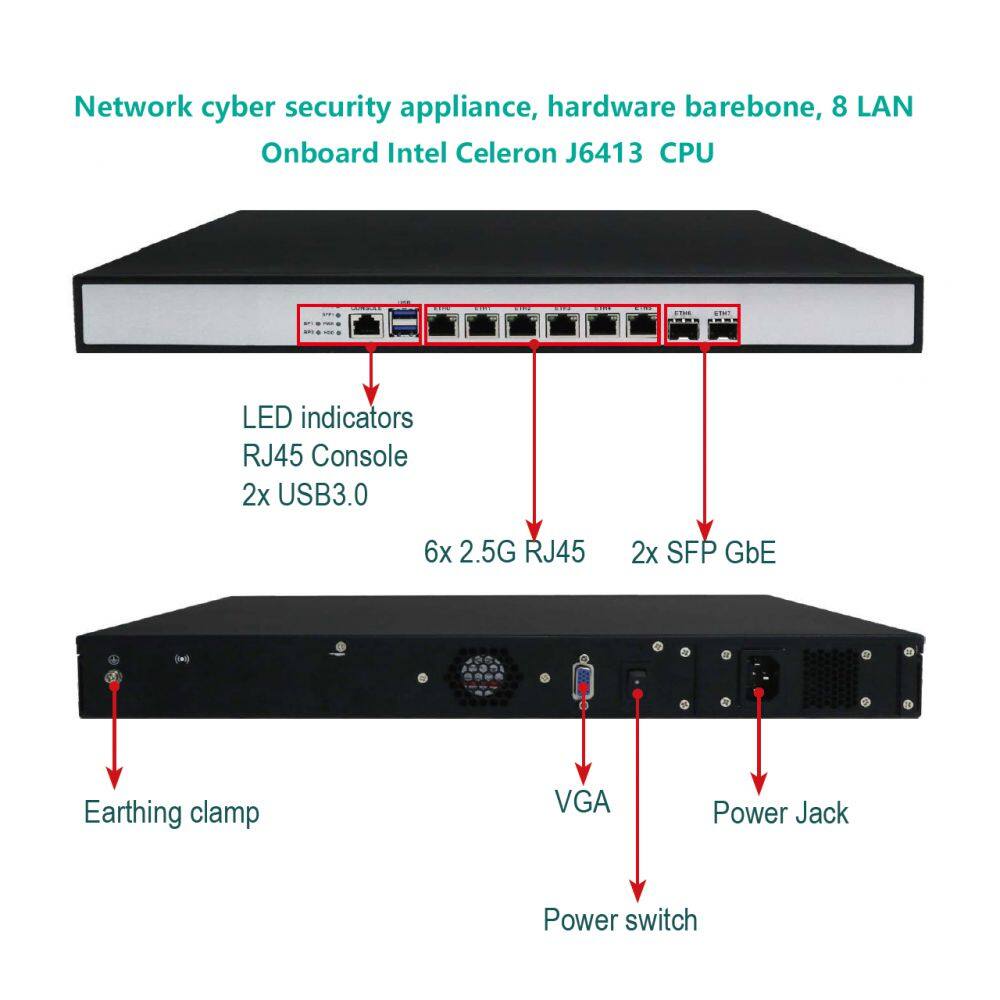

1u rackmount Network security appliance, 8 LAN
Onboard Intel Celeron Quad-core J6413 processor, 1.8GHz, 1.5MB L2 cache
One 260-pin 3200MHz so-DIMM slot, up to 32 GB
Six Intel 2.5G RJ45 ethernet ports, Intel I225-V Controller, two channels bypass
Two SFP 1G optical ports
One SATA interface and one mSATA interface
Two USB3.0, One CF TypeII
One RJ45 console for RS232 communication
CPU Onboard Intel Celeron J6413 processor CPU
System memory One so-DIMM slot, Max 32GB
Interface One SATA connector and one mSATA interface
Hard Drive One 2.5/3.5" HDD tray
CF slot One CFII slot
LAN Port Six 2.5G RJ45 network interfaces
Ethernet Controller Intel® Ethernet Controller I225-V
BYPASS Two channels Gen3.0 BYPASS
Optical ports Two GBE SFP ports
NMC slots None
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
USB Two USB3.0
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED

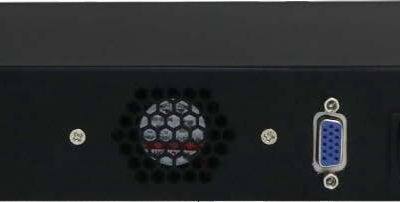

Video Built-in one VGA interface, support hot plug(Internal)
Power consumption Built-in 65W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Chassis Color Black or OEM
Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 295x430x44.5 mm
Weight 6.0 kg
