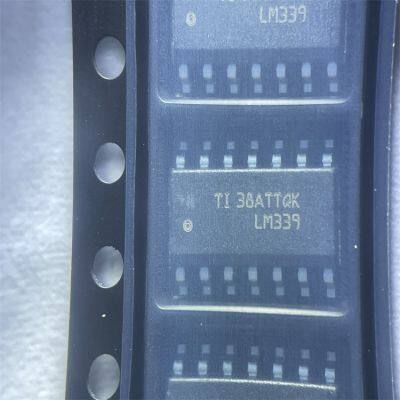

LM339DR Texas Instruments Analog Comparators Quad Differential

LM339DR

Manufacturer: Texas Instruments

Product Category: Analog Comparators

RoHS: Details

Mounting Style: SMD/SMT

Package / Case: SOIC-14

Number of Channels: 4 Channel

Output Type: Open Collector

Response Time: 1.3 us

Comparator Type: Differential

Supply Voltage - Min: 2 V

Supply Voltage - Max: 30 V

Operating Supply Current: 500 uA

Output Current per Channel: 6 mA

Vos - Input Offset Voltage: 5 mV

Ib - Input Bias Current: 250 nA

Minimum Operating Temperature: 0 C

Maximum Operating Temperature: + 70 C

Series: LM339

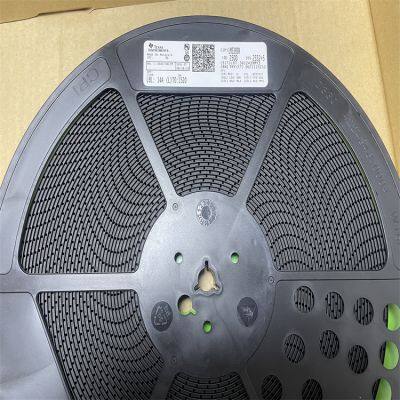

Packaging: Reel

Packaging: Cut Tape

Packaging: KXXReel

Brand: Texas Instruments

Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V

Features: Standard comparator

GBP - Gain Bandwidth Product: -

Height: 1.58 mm

Input Type: Differential

Ios - Input Offset Current: 50 nA

Length: 8.65 mm

Maximum Dual Supply Voltage: +/- 15 V

Minimum Dual Supply Voltage: 1 V

Operating Supply Voltage: 2 V to 30 V

Product: Analog Comparators

Product Type: Analog Comparators

Reference Voltage: Yes

Shutdown: No Shutdown

factory pack quantiy: 2500

Subcategory: Amplifier ICs

Supply Type: Single, Dual

Technology: Bipolar

Type: Differential Comparator

Voltage Gain dB: 106.02 dB

Width: 3.91 mm

Unit Weight: 0.004233 oz
