Laboratory dry thermostat metal bath

1

Dry thermostat metal bath

Product Introduction:

A dry thermostat is a product manufactured using semiconductor refrigeration technology or heating film technology controlled by a microcomputer. The instrument can be equipped with multiple modules and can be widely used for sample preservation, enzyme preservation and reaction, denaturation treatment of nucleic acids and proteins, PCR reaction, pre denaturation of electrophoresis, and serum coagulation.

Product features:

1. Multiple modules for customers to choose from.

2. The LCD display data is clear at a glance.

3. Easy to learn and operate, with a wide range of temperature usage and correctable temperature deviations.

4. Adopting metal modules for uniform heat conduction and easy replacement.

5. Power off protection and automatic operation upon startup.

6. The powerful programmable function of running multi-point programs.

7. Automatic fault detection buzzer alarm function.

Technical parameters:

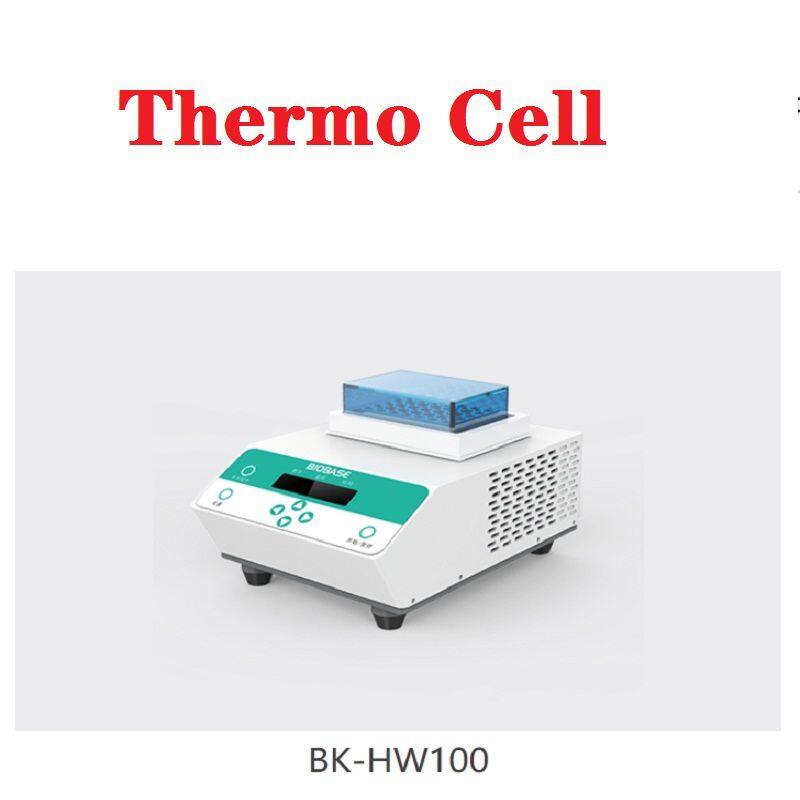

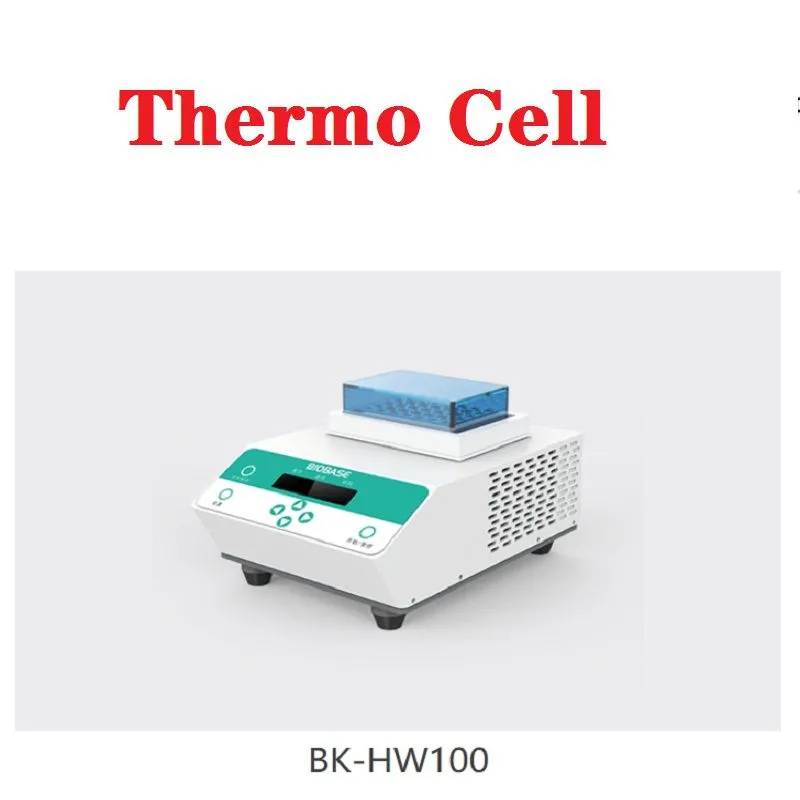

Model: BK-HW100

Temperature setting range: 10 ℃ -105 ℃

Temperature control range: Room temperature+5 ℃ -100 ℃ (heating film) Set temperature and real-time display of current control temperature

Time setting range: 1min-99h59min (constant temperature time countdown display)

Temperature fluctuation: ≤ ± 0.5 ℃

Module temperature uniformity: ≤ ± 0.5 ℃

Temperature control accuracy: ≤ ± 0.3 ℃

Temperature display accuracy: 0.1 ℃

Heating rate: ≤ 12 minutes (20 ℃ to 100 ℃)

Temperature deviation correction: equipped with temperature deviation correction

Power outage recovery: After power outage recovery, the instrument can automatically resume operation according to the original set program

Multi point temperature control: Programmable function to control multiple temperature points, with up to 5 temperature points and constant temperature time settings and continuous operation

Project storage: 10 (ten groups of projects can be switched and modified)

Standard module: 1 (B01) customer can choose to configure according to their needs

Screen display: LCD2002 display screen

Power supply/power: AC 220V 50Hz 150w

Safety and fault alarm: power on self-test, over temperature protection, fault alarm (built-in temperature control switch for over temperature protection)

Bare metal size: 300 * 215 * 195mm

Bare metal weight: approximately 7kg

Shell material: ABS shell

Mixing function: None
