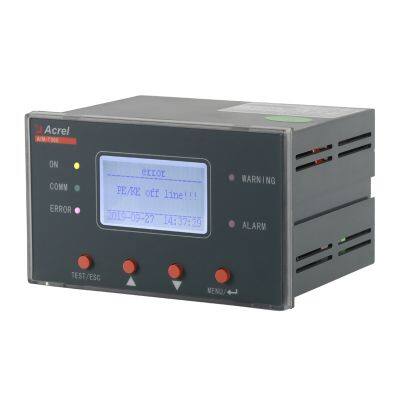

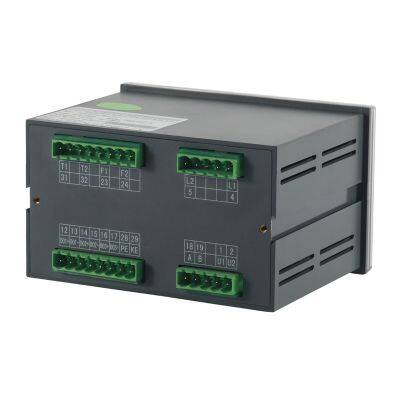

Acrel ndustrial Isolated Monitoring Device AIM-T500 for unearthed system AC 690V DC 800V Real-time measurement of leakage
Negotiable
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- T/T
You May Like
-
Acrel electrical transducer power supply DC24V/12V low power consump BA50-AI/I in AC0-600A out 4-20mA/0-20mA
-
Acrel electrical sensor BA50-AI/V in AC0-600A out 4-20mA/0-20mA power supply DC24V/12V low power consump
-
Acrel power supply DC24V/12V low power consump BA20-AI/I in AC0-200A out 4-20mA/0-20mA electrical sensor
-
Acrel power supply DC24V/12V Strong overload capability, low power electrical current transducer BA20-AI/V input AC0-200A
-
Acrel in AC0-50A out 4-20mA BA10-AI/I electrical transducer power supply DC24V/12V Strong overload capability, low power consum
-
Acrel electrical transducer BA10-AI/V in AC0-50A out 1-5V/0-5VA power supply DC24V/12V low power consumption
Product Description

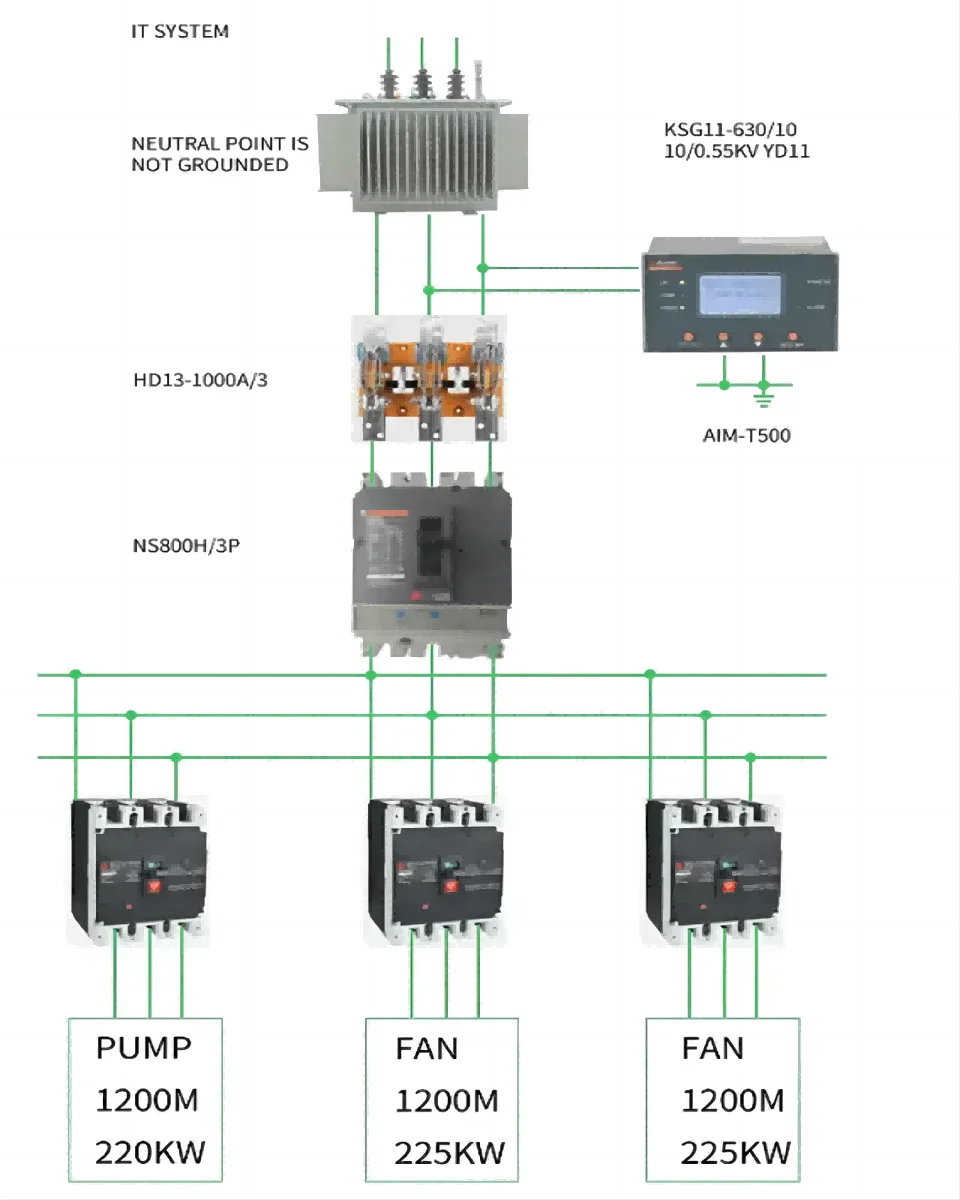

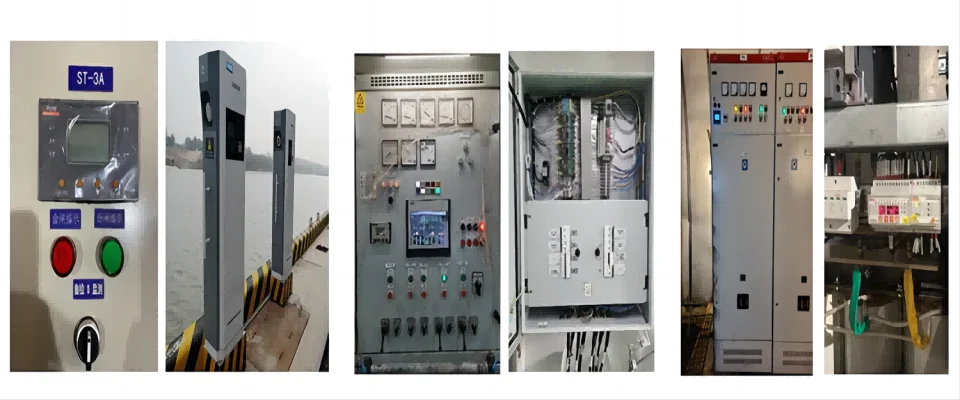

AIM-T500 insulation monitoring device is designed and developed by Acrel gathering the design experience of electric power meter industry for many years to monitor the insulation condition of low voltage IT distribution system (ungrounded system). The product adopts advanced micro controller technology, with high degree of integration, compact size and easy installation, and it integrates intelligence, digitalization and networking. The device, with many functions such as insulation fault warning, fault alarm, event recording and so on, can be used in the mines, glass factories, electric furnaces and test facilities, metallurgical plants, chemical plants, and exploded dangerous places, computer center, emergency power supply and other places to monitor the insulation status of IT system in real time. When insulation fault occurs, it will alarm and remind the staff to check the fault. The products conform to the requirements of enterprise standard Q/VDCL-26-2017 IT System Insulation Monitor.
Features
Items | Value | |
Accessory power supply | AC85~265V; DC100~300V；50/60Hz | |
Power dissipation | ＜8W | |
System voltage | AC0~690V; DC 0~800V; 40~460Hz | |
System application | IT system (online), Other system (offline) | |
Insulation monitoring | Measuring range | 1k~10MΩ |
Alarm range | 10k~10MΩ | |
Resistance accuracy | 1~10k,1k; 10k~10M, ±10% | |
System leakage capacitance | <500μF | |
Response time (Ce=1μF) | <5s | |
Internal parameters | Measuring voltage | <50V |
Measuring current | <270μA | |
Internal DC impedance | ≥180kΩ | |
Relay output | Error, Alarm, Warning | |
SOE | 20 records (fault type, fault value, fault time) | |
Alarm type | LCD, LED indicator | |
Communication | RS485, Modbus-RTU | |
Impulse voltage / Pollution Level | 8kV/Ⅲ | |
EMC/ Radiation | IEC61326-2-4 | |
Environment | Working temperature | -10 ~+65℃ |
Storage temperature | -20~+70℃ | |
Relative humidity | <95%, without condensation | |
Altitude | ≤2500m | |
