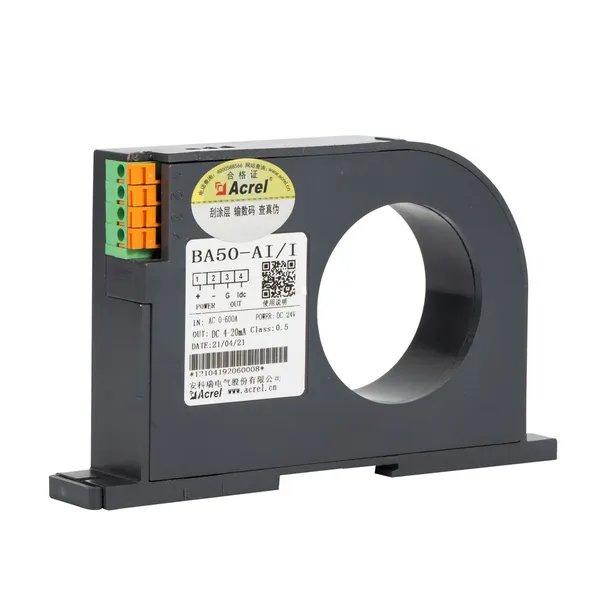

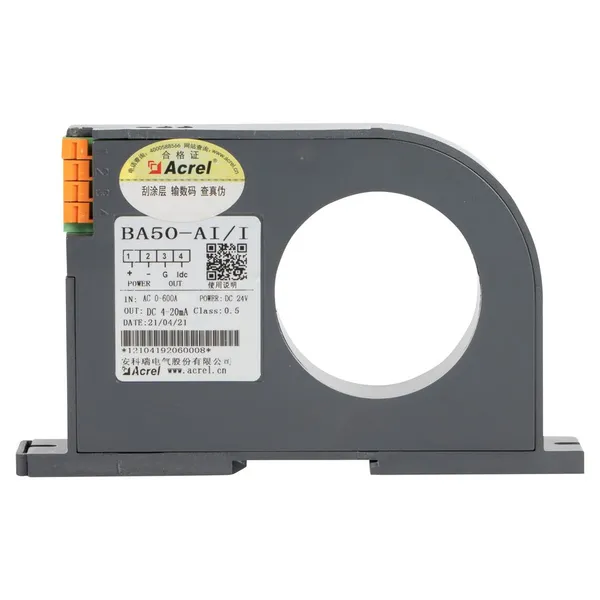

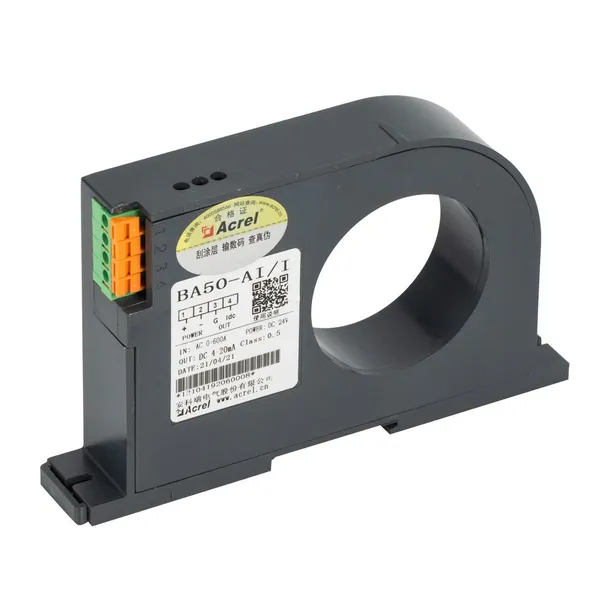

Acrel electrical transducer power supply DC24V/12V low power consump BA50-AI/I in AC0-600A out 4-20mA/0-20mA

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Payment Terms:T/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Introduction

BA Series AC current sensors transmit the AC current signal to standard DC analog signal (4-20mA or 0-5V) by accurate constant current technology and Temperature Linearity Compensation technology. They can all work under DC24V and 12V, and they have good capacity of overload, high accuracy, excellent isolatiion and low consumption. They are applied widely in the field of industrial automatization and comply IEC60688:1992 and IEC1851987.

Product overview

Features

Type		BA05	BA10	BA20	BA50
Input	Hole diameter	Φ5mm	Φ10mm	Φ20mm	Φ50mm
	Current range	AC 0~10A	AC 0~50A	AC 0~200A	AC 0~600A
	Overload	Continual 1.2 times; Instantaneous 10 times/5s
	Frequency	25Hz~5KHz
Output	Range	DC 4-20mA; 0-20mA; DC 1-5V, 0-5V
	Load resistance	Output current: ≤400Ω(12Vpower); ≤800Ω(24Vpower)
		Output voltage:≥1kΩ
	Ripple factor	<0.5% peak value
Accuracy		0.5
Response time		≤350ms
Power supply	Voltage	DC 12V or DC 24V
	Comsumption	≤0.5VA (DC12V) ; ≤1VA (DC 24V)
Insulation resistance		≥ 100MΩ
Isolation		AC 3kV/min between input and connectors
Temperature drift		≤ 200ppm
MTBF		>50000h
ENV	Work T:	-20℃ ~ +55 ℃
	Storage T:	-20℃ ~ +70 ℃
	Relative humidity:	5% ~ 95% (no condensation)
	Altitude:	<2500m
Mounting		35mm standard DIN rail


Type	Input	Output	Option
BA05-AI	AC 0.5~10A	DC 4-20mA; 0-20mA	-T: RMS measurement -1: DC12V power -2: DC24V power (If no T, sensors measure avarage value)
BA05-AV	AC 0.5~10A	DC 1-5V, 0-5V
BA10-AI	AC 8~50A	DC 4-20mA; 0-20mA
BA10-AV	AC 8~50A	DC 1-5V, 0-5V
BA20-AI	AC 40~150A	DC 4-20mA; 0-20mA
BA20-AV	AC 40~150A	DC 1-5V, 0-5V
BA50-AI	AC 60~600A	DC 4-20mA; 0-20mA
BA50-AV	AC 60~600A	DC 1-5V, 0-5V
