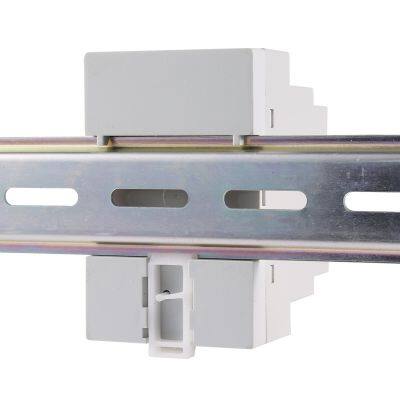

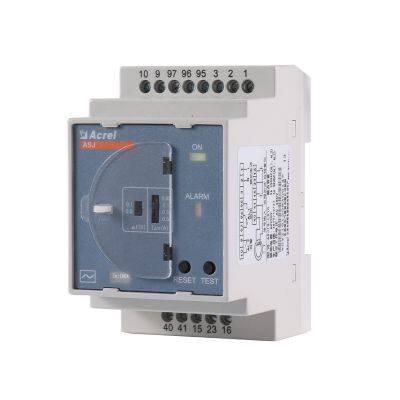

Acrel ASJ10-LD1C AC type residual current relay Two limit non-driving time can be set Rail installation

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Payment Terms:T/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

ACREL ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating current 50Hz, the rated voltage 400V or below.

ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.

Parameters

Technical Parameter		Indicator
Technical Parameter		AC type	A type
Power supply	Voltage range	AC110V、AC220V （±10%）	AC/DC85~265V
Power supply	Power dissipation	≤5W
Input	Rated residual operating current I△n	0.03、0.1、0.3、0.5(A)	0.03、0.05、0.1、0.3、0.5、1、3、 5、10、30(A)note 3
	Limit non-driving time △t	0.1、0.5(s)	0、0.06、0.1、0.2、0.3、0.5、0.8、 1、4、10(s)note
	Rated residual non-operating current I△no	50%I△n	50%I△n
	Performance characteristics	Sinusoidal AC	Sinusoidal AC and pulsating DC
	Frequency	50Hz±5Hz	50Hz±5Hz
	Operating range	-20% ~ -10%I△n	-20% ~ -10%I△n
Output	Output mode	One is normally open and another is for transformation	One is normally closed or open, and another is for transformation
	Contact capacity	5A 250VAC 5A 30VDC	AL1:8A 250VAC; 5A 30VDC AL2:6A 250VAC; 5A 30VDC
	Reset mode	Local reset or remote reset	Local reset, remote reset or automatic reset
Installation and use environment	Temperature	Run temperature：-20℃ ~ +55℃，Storage temperature：-30℃ ~ +70℃
	Humidity	≤95%RH，no condensation, and no corrosive gas places
	Elevation	≤2000m
	Class of pollution	Grade three
	Installation category	Type Ⅲ

Note 3: ASJ10L-LD1A rated residual operating current IΔn is 10mA~30A continuously adjustable; Note 4: ASJ10L-LD1A limit non-driving time Δt is 0~10S continuously adjustable.

Type	Function
ASJ20-LD1C	AC type residual current Over current alarm Rated residual operated current can be set Limited non-driving time can be set 2 relays output(1 NC contact, 1 normal changeover contact) With local/remote "test" and "reset" functions
ASJ20-LD1A	A type residual current measurement Current percentage light bar indication(30%, 50%, 70%, TRIP) Rated residual operated current can be set Limited non-driving time can be set 2 relays output(1 NO contact, 1 normal changeover contact) With local/remote/automatic "test" and "reset" functions
ASJ10-LD1C	AC type residual current Over current alarm Rated residual operated current can be set Limited non-driving time can be set 2 relays output(1 NC contact, 1 normal changeover contact) With local/remote "test" and "reset" functions
ASJ10-LD1A	A type residual current measurement Current percentage light bar indication(30%, 50%, 70%, TRIP) Rated residual operated current can be set Limited non-driving time can be set 2 relays output(1 NO contact, 1 normal changeover contact) With local/remote/automatic "test" and "reset" functions
