Manual double opening bar valve Pneumatic electro-hydraulic rod valve Single layer double layer bar gate valve

1, Overview

Bar valve is a new type of gate developed according to building materials, mining, metallurgy and other industries of medium and small solid, massive material conveying control, feeding process needs, bar valve is suitable for ≤50mm material control.

2, The characteristics of

Simple, easy to operate, no jam, overcome the slab gate valve for material particles caused by opening and closing force big, even not close in faults, and the adoption of single bar bar valve operation, because the surface is easy to operate, flexible, overall for the high quality for high quality steel welding structure, good rigidity, not deformation, long service life, no maintenance, is small and medium crystal, the ideal equipment of controlling block material.

3, The structure

Mainly by the framework, composition of the rods, when the rods inserted into the frame, is a set of rods parallel grating, a block to block material at the side of the gate, if take a grating in a larger gap, material can enter the other side of the gate, the gap pull rods how much should be determined by the needs of the process.

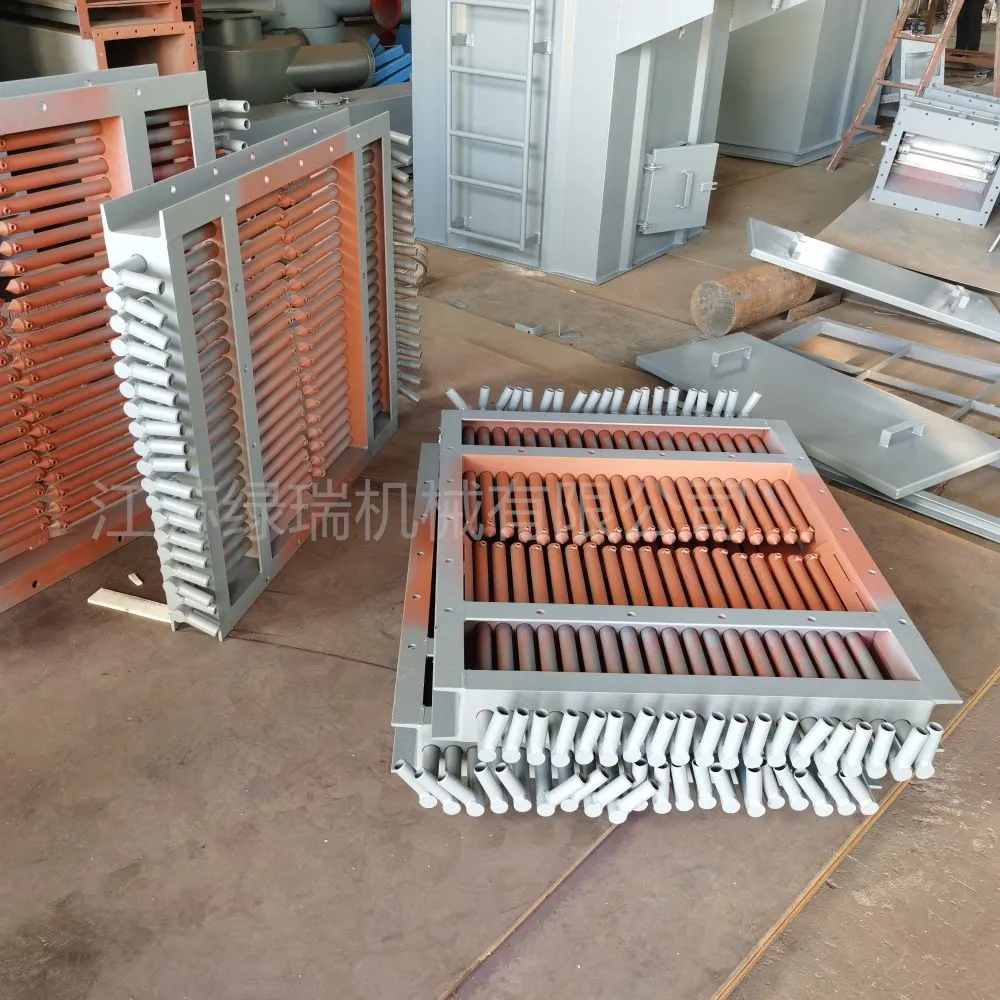

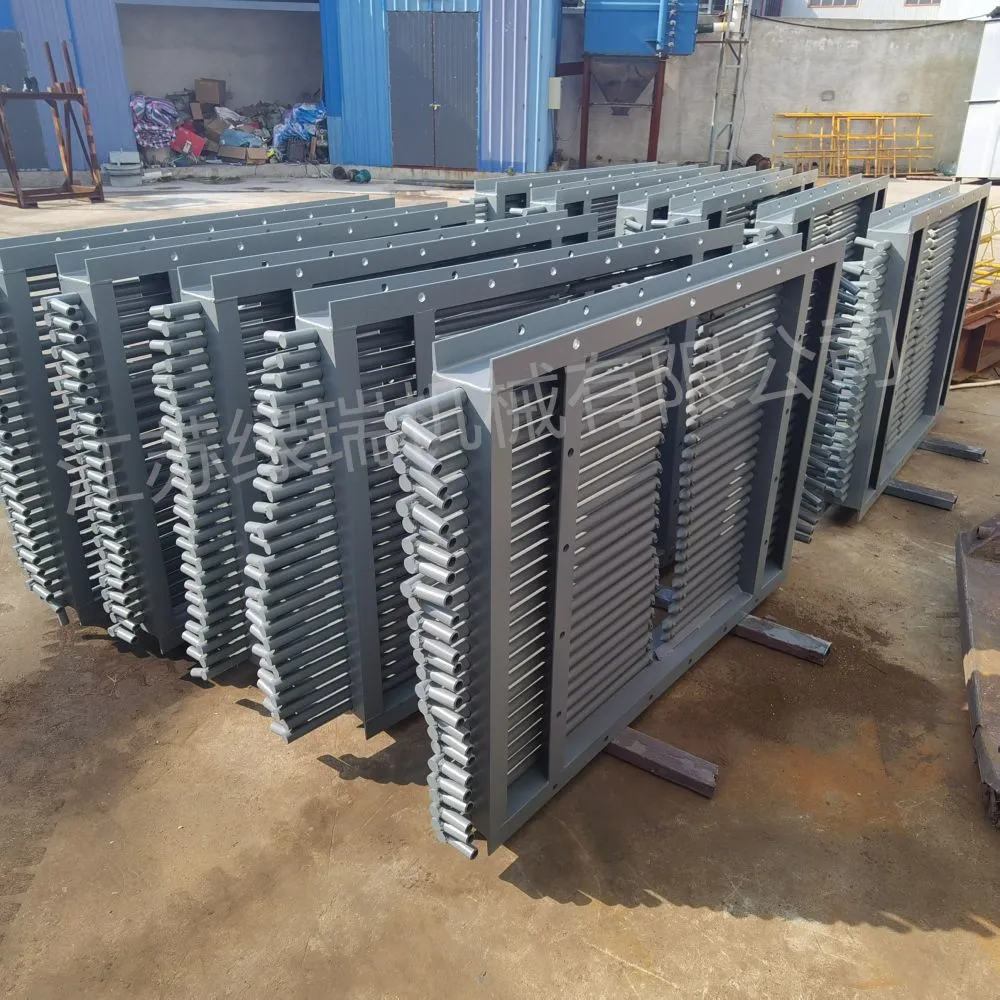

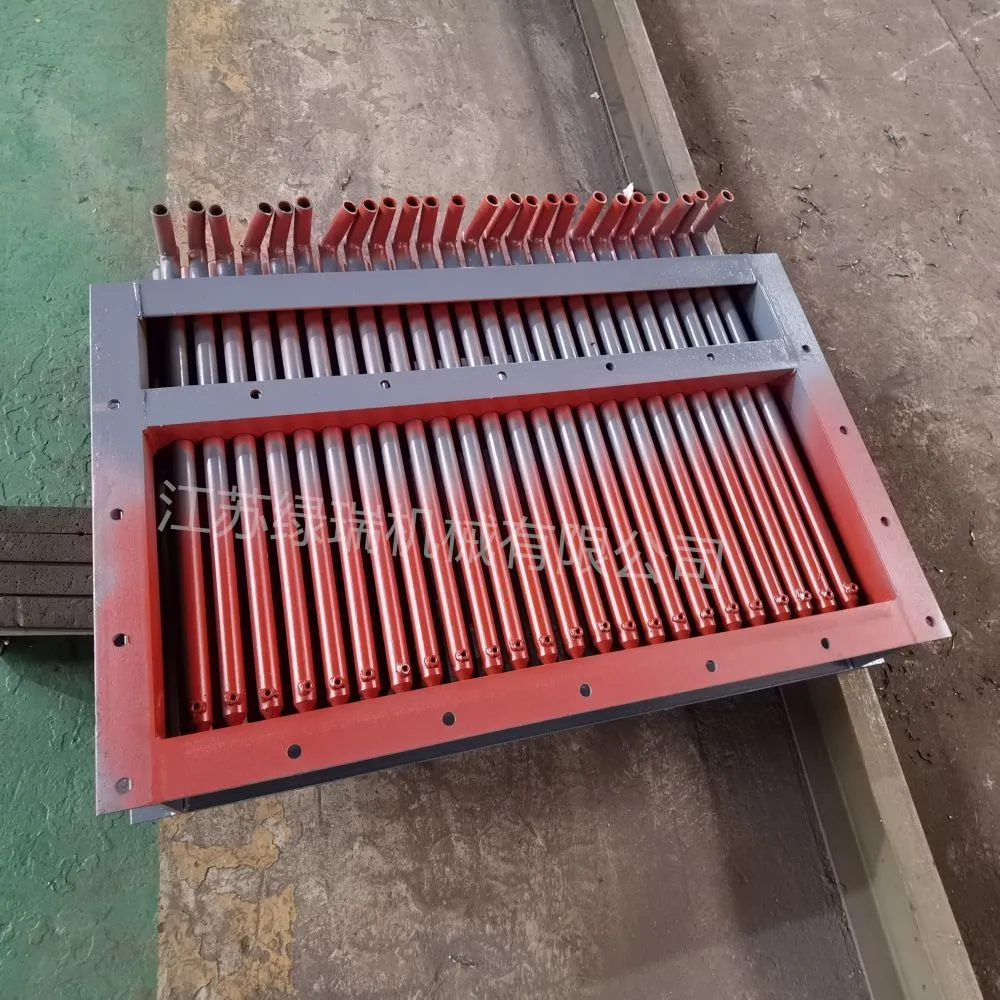

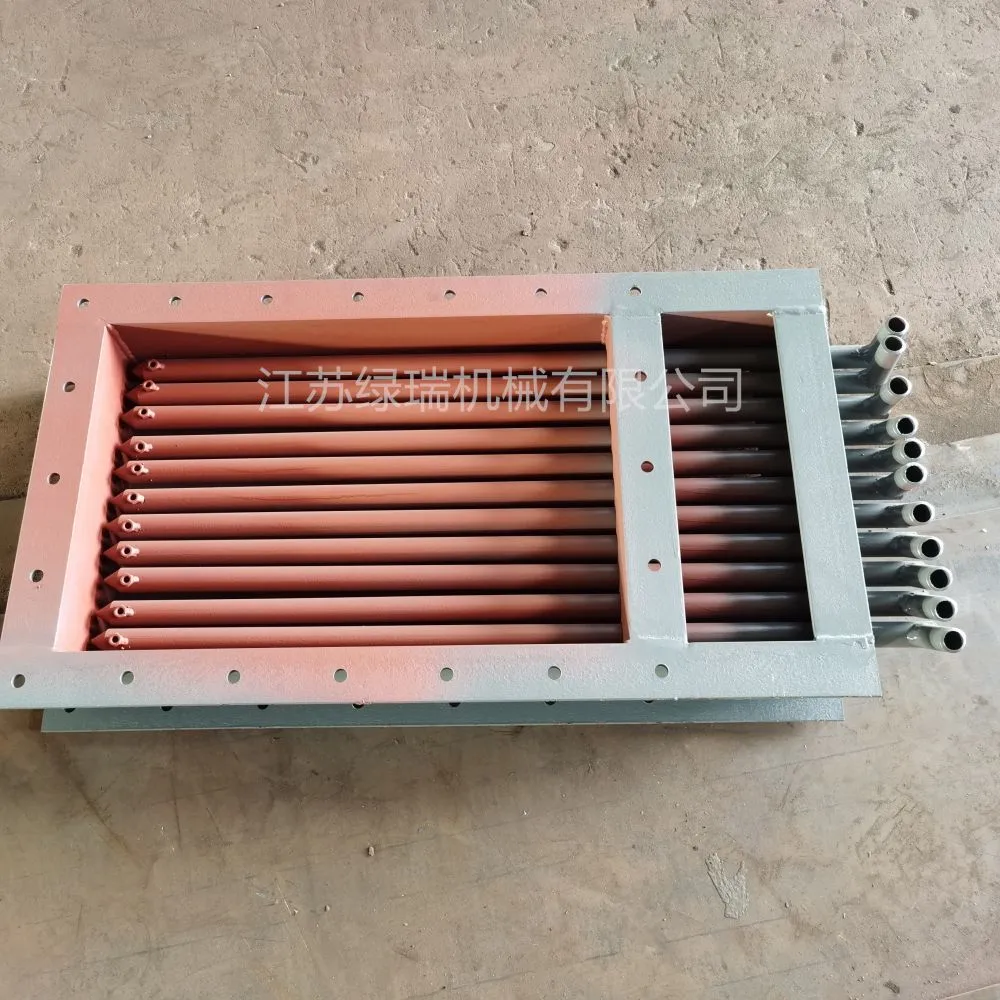

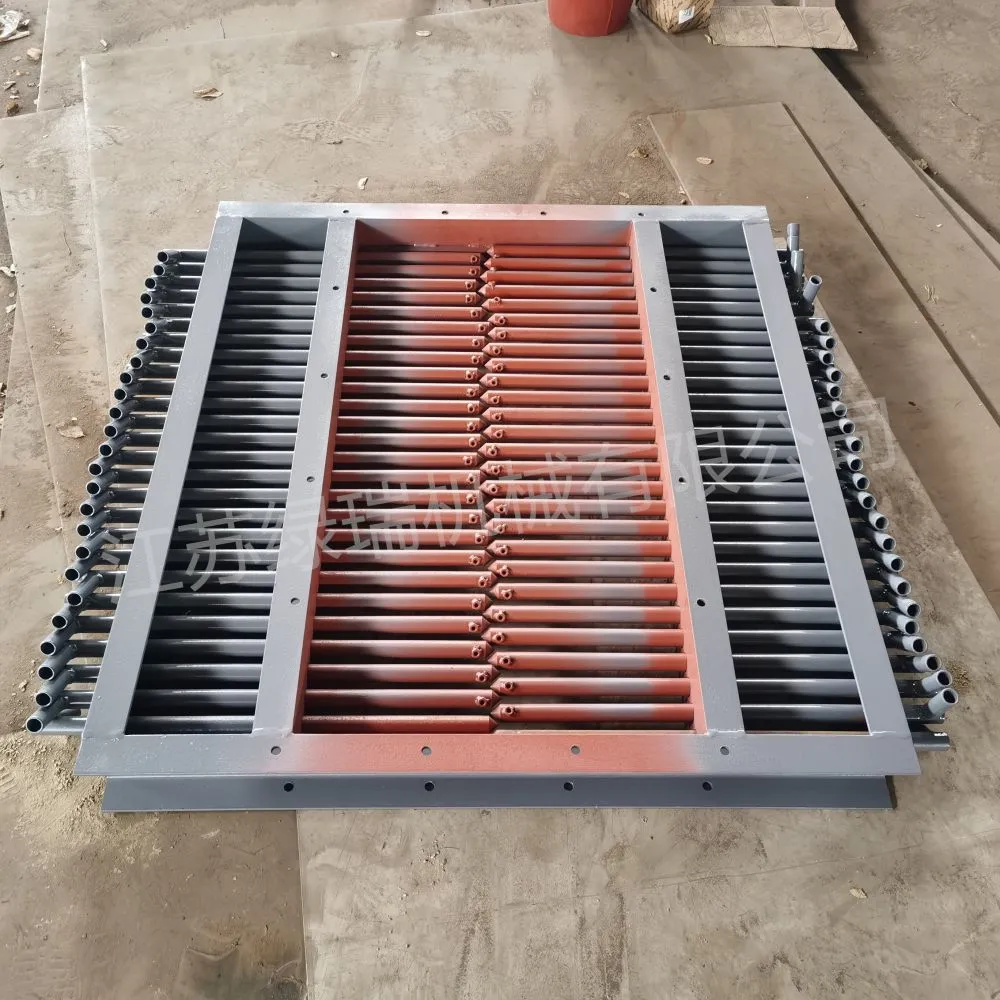

4.Product Photograph
