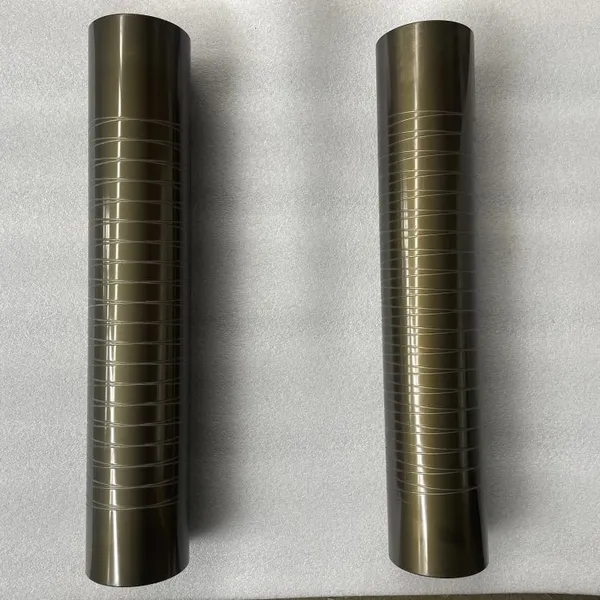

Precision Conveyor Roller 207mm x 30mm Crown 0.5 Hardened Aluminum Hard Anodized

Name: Precision Conveyor Roller 207mm x 30mm Crown 0.5 Hardened Aluminum Hard Anodized
Brand: zhele
Availability: InStock

FOB Price

50 - 500 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	zhele	Place of Origin:	China	Model Number:	zhele 013
Material:	Aluminium	Length:	1m	Structure:	Flexible
Coatings:	Black Oxide

Product Description

Customized nbr rolls rubber roller grinding machine from China

Custom Mask Making Machine Use Anodized Conveyor Aluminum Alloy Guide Roller

Flim blowing machine custom steel textile printing machine roller of printing and packaging industry

China Make Direct Factory Aluminum Alloy Guide Roller Professional Printing Roller

Cheap wholesale aluminum self cleaning screw roller

1.Introductions of aluminum guide roller

We adopt high quality aluminum alloy as the body material,use extrusion molding and make ribs structure inside.The outside diameter can be made from 25mm to 320mm. Under the treatment by computer balancing correction process,the dynamic balance of the
aluminum roller will be smaller than 2g.With using of sophisticated equipment and special tools,the roll surface gloss can be 0.8, concentricity can reach 0.02mm.
Special treatment in the shaft axle and the using of imported bearings will make sure the the aluminum guide roller work very well at high speed with no deformation.

2.Advantages Of ZHELE Aluminum Guide Rollers:

＊Good material
The aluminum material is well selected, has good chemical properties, is not easy to age, and has a long service life.
＊Delicate and smooth
The overall surface is smooth, polished processing, can improve work efficiency.
＊Multiple choices
Variety of styles, fair prices, complete specifications.

Size Chart of This Design

External dia. ΦD	Internal dia. ΦD1	Processing length L	Unilateral thickness H	Ribs R	Dia. of sahft hole ΦD2
Φ30mm	Φ23.5mm	200~1200mm	3.25mm	-	The dia.& depth of the shaft hole can be customized
Φ40mm	Φ31mm	200~1200mm	4.50mm	-
Φ50mm	Φ42mm	250~1500mm	4.00mm	R4.1mm*8(6)
Φ60mm	Φ52mm	300~1800mm	4.00mm	R4.1mm*8(6)
Φ70mm	Φ61mm	300~1800mm	4.50mm	R4.1mm*8(6)
Φ75mm	Φ61mm	300~1800mm	7.00mm	R4.1mm*8(6)
Φ80mm	Φ71mm	300~1800mm	4.50mm	R4.1mm*8
Φ90mm	Φ81mm	300~2000mm	4.50mm	R4.1mm*8
Φ100mm	Φ91mm	300~2500mm	4.50mm	R4.5mm*8
Φ120mm	Φ110mm	300~2500mm	5.00mm	R4.5mm*8
Φ150mm	Φ137mm	400~3500mm	6.50mm	R5.0mm*9
Φ160mm	Φ145mm	400`3500mm	7.50mm	R5.0mm*9
Φ170mm	Φ155mm	450~3500mm	7.50mm	R5.0mm*9
Φ180mm	Φ165mm	450~3500mm	7.5mm	R5.0mm*9
Φ200mm	Φ185mm	450~3500mm	7.50mm	R8.0mm*10
Φ220m	Φ205mm	450~3500mm	7.50mm	R8.0mm
