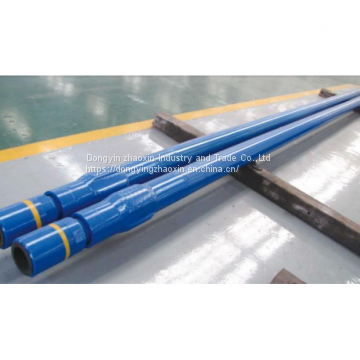

API downhole mud motor / downhole drilling motor
- 20000 Piece / Pieces per Month
- tianjin or qingdao or shanghai or lianyungang
- T/T
You May Like
-
Oil well drilling and gas mud motor
-
API Drilling Mud Motor For Oil Well Drilling /LZ Series Downhole Mud Motors Drilling Tool
-
4 3/4'' Downhole Motor/downhole drilling mud motor/petroleum downhole motor
-
Chinese factory price Downhole Mud Drilling Motor API Downhole drilling Mud Motor for HDD Oil drilling
-
Hammer union weco 2"1502
-
Oil wellhead polsihed rod stuffing box
Product Description
Downhole motor is a kind of downhole dynamic drilling tool upon the power of drilling mud. Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss at both inlet and outlet of the pump, to push the rotor into rotating, and to transmit the torque and speed onto the bit. The downhole motor property mainly depends upon its property parameters.
ADVANTAGES OF DOWNHOLE MOTOR
Increased rate of penetration.
Better hole deviation control.
Reduction in drill string failure rate.
Reduction in wear and tear of the swivel, Kelly, and rotary drives.
Reduction in fuel cost, since compared to rotary drilling, less energy is required to power a downhole motor.
1. Material: High manganese steel
2. Standard: API
3. Features: Big torque, high effective, wide flow rate range, running stable and long using time.
4. Specifications: Fit for 3 1/2"--17 1/2" well hole, including straight body, single- bent and
double-bent construction.
The specifications and main parameters
Spec. | Hole Size | Input Flow Rate | Pressure Loss | Bit Speed | Working Torque | Delay Dynamic Torque | Output Power | Max Drilling Weight | Joint Thread | Length | ||
Unit | mm | In | L/S | Mpa | r/min | N.m | N.m | KW | KN | In | In | mm |
5LZ73×7.0 | 83-121 | 3 1/4-4 3/4 | 2-4 | 3.2 | 80-160 | 615 | 1077 | 5.8-11.5 | 25 | 2 3/8REG | 2 3/8REG | 3423 |
9LZ89×7.0 | 105-143 | 4 1/8-5 5/8 | 3-8 | 3.2 | 147-392 | 504 | 882 | 8.64-23 | 30 | 2 7/8REG | 2 7/8REG | 2911 |
5LZ95×7.0 | 114-150 | 4 1/8-5 7/8 | 5-12 | 3.2 | 140-320 | 710 | 1240 | 10.5-25 | 40 | 2 7/8REG | 2 7/8REG | 3920 |
5LZ120×7.0 | 152-200 | 6-7 7/8 | 8-16 | 3.2 | 80-180 | 1850 | 3200 | 23-47 | 106 | 3 1/2REG | 3 1/2REG | 5039 |
5LZ165×7.0V | 245-244 | 8 1/8-9 5/8 | 18-30 | 3.2 | 111-167 | 4440 | 7770 | 57.6-86.4 | 160 | 4 1/2REG | 4 1/2REG | 7408 |
5LZ165.5×7.0V | 215-244 | 8 1/8-9 5/8 | 18-30 | 4.0 | 120-180 | 5135 | 8987 | 72-108 | 180 | 4 1/2REG | 4 1/2REG | 7748 |
5LZ172×7.0V | 215-244 | 8 1/8-9 5/8 | 18-30 | 4.0 | 120-180 | 5135 | 8987 | 72-108 | 180 | 4 1/2REG | 4 1/2REG | 7391 |
5LZ172.5×7.0V | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 115-180 | 6452 | 11299 | 86.4-151.2 | 200 | 4 1/2REG | 4 1/2REG | 8031 |
7LZ172.5×7.0V | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 75-180 | 6527 | 11420 | 59.5-108.6 | 160 | 4 1/2REG | 4 1/2REG | 8631 |
5LZ185×7.0 | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 184 | 5436 | 8154 | 80-140 | 240 | 4 1/2REG | 6 1/2REG | 8120 |
5LZ185.5×7.0 | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 173 | 5939 | 8908 | 80-140 | 240 | 4 1/2REG | 6 1/2REG | 8120 |
5LZ197×7.0 | 244-311 | 9 1/8-12 5/8 | 20-40 | 3.2 | 61-122 | 14118 | 14118 | 57.6-115.2 | 240 | 5 1/2REG | 6 5/8REG | 7998 |
5LZ197.5×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 4.0 | 85-160 | 12640 | 12640 | 72-144 | 260 | 5 1/2REG | 6 5/8REG | 8598 |
7LZ203×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 3.2 | 70-155 | 12289 | 12289 | 57.6-126.7 | 240 | 5 1/2REG | 6 5/8REG | 7798 |
5LZ203.5×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 4.0 | 70-155 | 8778 | 15362 | 72-158.4 | 260 | 5 1/2REG | 6 5/8REG | 8598 |
5LZ244×7.0 | 311-445 | 12 1/2-17 1/2 | 50-75 | 3.2 | 91-136 | 15124 | 26468 | 144-216 | 360 | 6 5/8REG | 7 5/8REG | 8635 |
7LZ244.5×7.0 | 311-445 | 12 1/2-17 1/2 | 50-75 | 4.0 | 91-136 | 18905 | 33085 | 180-270 | 450 | 6 5/8REG | 7 5/8REG | 9235 |

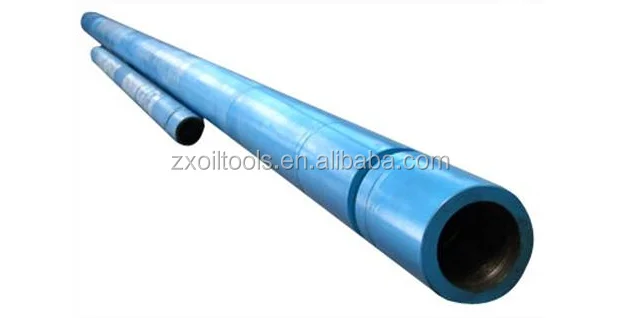

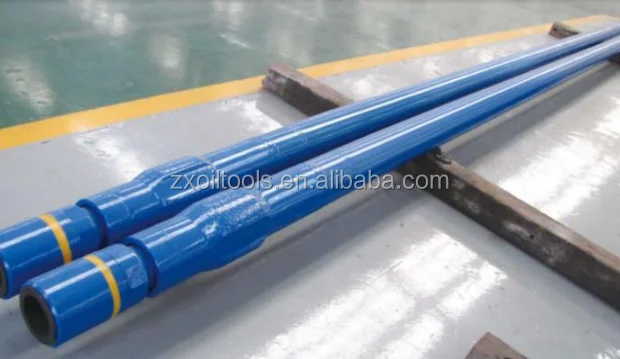

Product show :
For more information, you can contact me :
Contact person : Alisa Ma
Mob : +86-13706368719
Looking forward to cooperating with you!
