Dresspackaging integrated machine
- 23 Piece / Pieces per Month
- Medical medicinepackaging linkage line Pharmaceuticals industrypackaging production line
- Bakery and confectioneryopen the carton machine
- Foodstuffpillow packaging machinery Bag pillow charter flight
- Logistics industrybox and palletizing production line Beverage industrybox and palletizing assembly line
- Articles of everyday usemultifunctional packaging equipment Combined packaging machine
- Triangle package packaging line Black teatriangle packaging linkage line
Product Details
Brand Name: | Hesheng | Model Number: | Combination packaging machine | Function: | Other |
Application: | Other | Packaging Material: | Other |
Product Description
【basic introduction 】
Combined packaging machine: to complete two or more automatic packaging processes of equipment through the combination of the packaging machine with different functions, which can meet different packaging requirements according to the actual situation.
【features 】
⊕ Seal and shrinkage machine: automatic membrane sealing, after heating, make the shrinking film shrink and wrap the product, seal and shrink once.
⊕ Box sealing machine: automatically complete the box sealing and express delivery sheet process.
⊕ Closing and pasting single machine: automatic bagging, sealing and veneer in a single step.
【equipment parameters 】
〔〔Pillow packaging machine + shrinking machine——HS-102-ZS〕〕
『Pillow packaging machine』
Power supply: 220V, 50 / 60Hz
Power: 4.75KW
Packaging Film Width: Max.590mm
Bag length and size: 60-320mm
Wide material size: 10-200mm
High content size: 5-35mm
Packaging speed: 30-150 pack / min
Film type: PVC, POF and other thermal shrinkage film
Dimensions: L480 * W117 * H150cm
Weight: 760kg
『shrinker』
Power supply: 380V, 50 / 60Hz
Power: 13.5KW
Overall dimension: L260 * W60 * H170cm
Size of furnace channel: L230 * W25 * H20cm
Weight: 380kg
〔〔Semi-automatic cuff wrapping machine + air jet shrinking machine——HS-103-TS〕〕
『Cover film machine』
Power supply specification: 220V, 50 / 60Hz
Power: 1.5KW
Working air pressure: 5-7 kg / cubic meter. 2 cm 3
Packaging size (Max): L550 * W400 * H380mm
Seal length (Max): 650mm
Packaging speed: 0-10bags / min
Height: 800 ± 50mm
Applicable shrinkage film: PVC, PE
Machine size: L925 * W1040 * H1920mm
Net weight: 300kg
『shrinker』
Power supply: 380v, 50-60 HZ
Power: 24KW
Size of furnace channel: L1800 * W600 * H500mm
Product size: W550 * H450mm
Delivery speed: 0-15m / min
Delivery material: mesh belt. Chain roller.teflon
Delivered load: max.50kg
Machine size: L2500 * W900 * H1750mm
Overall weight: 450kg
Applicable shrinkage film: PE.POF.PVC

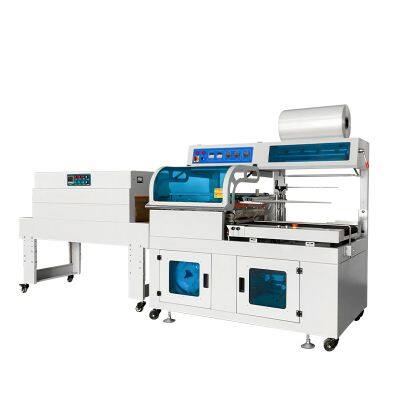

〔〔L-type sealing machine + thermal shrinkage machine——HS-FQ550+HS-SS4020C〕〕
『Seal cutting machine』
Power supply: 220V, 50 / 60Hz
Power: 1.5KW
Use gas source: 5-7 kg / cubic meter 2 cm 3
Packaging speed: 15-30bags / min
Package size L + H: <600mm (H <150mm)
Package size W + H: <500mm (H <150mm)
Sealing knife size: L650 * W550mm
Machine size: L1750 * W900 * H1450mm
Overall weight: 350kg
Applicable shrinkage film: POF, PE
『shrinker』
Power supply voltage: 380V, 50 / 60Hz
Power: 9KW
Size of shrinkage furnace: L1200 * W400 * H200mm
Product size: W350 * H150mm
Delivery speed: 0-15m / min
Delivery material: mesh belt, chain roller, Teflon
Delivery load: Max.20kg
Machine size: L1600 * W560 * H660mm
Overall weight: 80kg
Application: POF, PVC, PE, PP
〔〔Side sealing and cutting machine + heat shrinkage machine——HS-FQ550B+HS-SS5030〕〕
『Seal cutting machine』
Power supply: 220V, 50 / 60Hz
Power: 1.5KW
Use gas source: 5-7 kg / cubic meter 2 cm 3
Packaging speed: 15-30bags / min
Packaging size (L + H): No
Packaging size (W + H): <500mm
Seal knife size (L * W): unlimited * 550mm
Machine size: L1750 * W900 * H1450mm
Overall weight: 350kg
Applicable shrinkage film: POF, PE
『shrinker』
Power supply specification: 380V, 50 / 60Hz
Power:: 11KW
Delivery speed: 0-15m / min
Delivery material: mesh belt, chain roller, Teflon
Delivery load: Max.20kg
Size of shrinkage furnace: L1200 * W500 * H300mm
Product size: W450 * H250mm
Overall weight: 90kg
Applicable shrinkage film: PVC, POF
Overall machine size: L1600 * W660 * H760mm
〔〔Vertical sealing machine + thermal shrinkage machine——HS-FQ5545C+HS-SS5030〕〕
『Seal cutting machine』
Power supply: 220V, 50 / 60Hz
Power: about 3KW
Packaging speed: 15-30bags / min
Sealing knife size: L550 * W450mm
Opening size: 180mm
Air pressure: 0.5 MPA
Delivery load: Max.15kg
Applicable actile applicable: POF
Machine size: L1630 * W900 * H1470mm
Overall weight: 300kg
『shrinker』
Power supply specification: 380V, 50 / 60Hz
Power:: 11KW
Overall machine size: L1600 * W660 * H760mm
Delivery speed: 0-15m / min
Delivery material: mesh belt, chain roller, Teflon
Delivery load: Max.20kg
Size of shrinkage furnace: L1200 * W500 * H300mm
Product size: W450 * H250mm
Overall weight: 90kg
Applicable shrinkage film: PVC, POF
〔〔Touch screen type stick single machine + e-commerce box sealing machine——HS-TB102+HS-FX4030-A〕〕
『cartoning sealing machine』
Power supply voltage: 220V, 50Hz
Seal length range: 130mm-unlimited
Seal width range: 80-300mm
Seal height range: 90-400mm
Applicable width of the adhesive tape: 30-50mm
The reserved length of the tape on both sides: within 6cm
Drive mode: left and right drive
Applicable tape type: PVC, BOPP
Overall dimension: L152 * W63 * H139cm
『Paste machine』
Power supply specification: 220V, 50 HZ
Order speed: 25-30 times / min
Order accuracy: ± 1mm
Face single length range: 20-300mm
Face single width range: 30-120mm
Carton Height: Max.300mm
Carton width: Max.400mm
Overall dimension: L150 * W68 * H144cm
Overall weight: 200kg
Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
