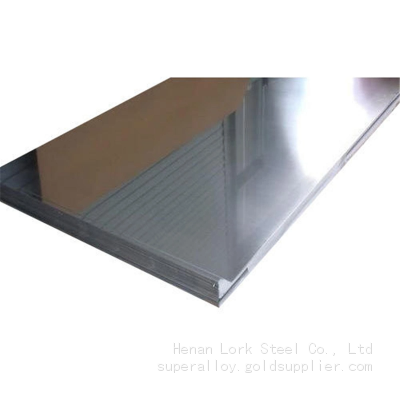

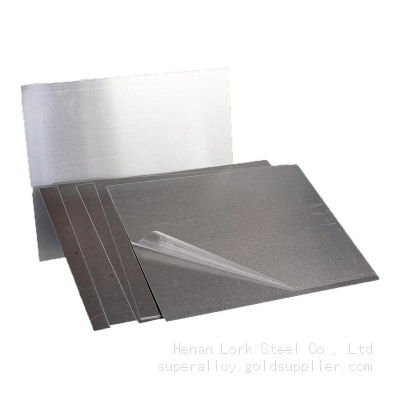

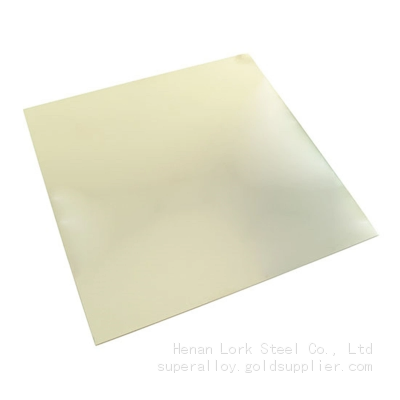

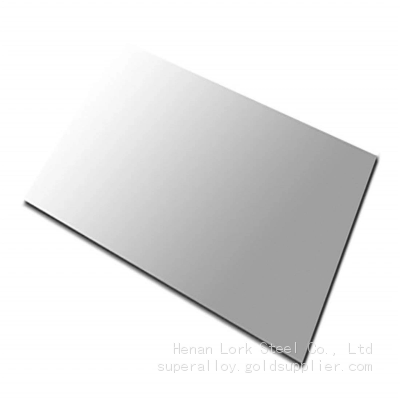

Lork Uns N10675 Hastelloy B3 Nickel Sheet/Nickel Strip/Nickel Plate in Stock
- 10000 Kilogram / Kilograms per Month
- T/T
- 10 days
-
Lork Ns3403 N06985 2.4619 Hastelloy G3 Bar for Manufacture of Process Equipment
-
Lork Black Finish Monel 400 Nickel Alloy Round Bar for Frames
-
Lork High Hardness DIN 2.4375 Monel K500 Nickel Based Alloy Plate for Sea Water Pump Shafts
-
Lork Wholesale Spot Brushed Round Monel R405 Nickel Based Allooy Bar for Fasteners
-
Lork Hot Selling Ni-Cu Alloy Monel 404 Nickel Plate for Chemistry and Petrochemical Yield
-
Lork Good Creep Oxidation Resistance Monel 502 Nickel Alloy Bar for Propeller Shafts
Product Details
Brand Name: | LORK | Place of Origin: | China | Model Number: | Hastelloy B3 Plate |
Type: | Nickel Plate | Application: | *Chemical Processing *Food Processing *Pharmaceutical Industry *Oil & Gas *Power Generation *Pulp & Paper Industries | Ultimate Strength (≥ MPa): | 580 |
Elongation (≥ %): | 57.5 | Powder Or Not: | Not Powder | Resistance (μΩ.m): | Stablize |
Ni (Min): | Bal. |
Product Description
MATERIAL DESCRIPTION
HASTELLOY B3 alloy (UNS N10675) exhibits extremely high resistance to pure hydrochloric, hydrobromic, and sulfuric acids. Furthermore, it has greatly improved structural stability compared with previous B-type alloys, leading to fewer concerns during welding, fabrication, and service.
Like other nickel alloys (in the mill annealed condition), it is ductile, can be formed and welded, and resists stress corrosion cracking in chloride-bearing solutions. Also, it is able to withstand fluoride-bearing media and concentrated sulfuric acid, both of which result in damage to zirconium alloys.
HASTELLOY B3 alloy is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and coated electrodes. It is used in numerous chemical process industry (CPI) applications, especially in the construction of reaction vessels for pure, reducing acid service.
Other Designations:
Equivalent materials to HASTELLOY B-3 are:
ASTM B333
ASTM B335
ASTM B366
ASTM B564
ASTM B619
ASTM B622
CHEMICAL COMPOSITION
Hastelloy B3/UNS N10675 Chemical Compositions:
Element | Content (%) |
Nickel, Ni | 65 min |
Molybdenum, Mo | 27-32 |
Cobalt, Co | 3 max |
Manganese, Mn | 3 max |
Tungsten, W | 3 max |
Iron, Fe | 1-3 |
Chromium, Cr | 1-3 |
Aluminum, Al | 0.5 max |
Copper, Cu | 0.2 max |
Niobium, Nb | 0.2 max |
Tantalum, Ta | 0.2 max |
Titanium, Ti | 0.2 max |
Vanadium, V | 0.2 max |
Zirconium, Zr | 0.1 max |
Phosphorus, P | 0.03 max |
Sulfur, S | 0.01 max |
Carbon, C | 0.01 max |
MECHANICAL PROPERTIES
Hastelloy B3/UNS N10675 Mechanical Properties (Minimum value at 20ºC)
Properties | Metric | Imperial |
Tensile strength (0.125in.) | 0.88 GPa | 129 ksi |
Yield strength (0.125in.) | 0.44 GPa | 64.5 ksi |
Elongation at break (0.125in.) | 57.50% | 57.50% |
APPLICATION
Hastelloy B3/UNS N10675 Application:
Chemical processes
Vacuum furnaces
Mechanical components in reducing environments
