ChinaHome > Products > Ceramic Valve > Pneumatic O Type Ceramic Lined Ball Valve FRQ641TC

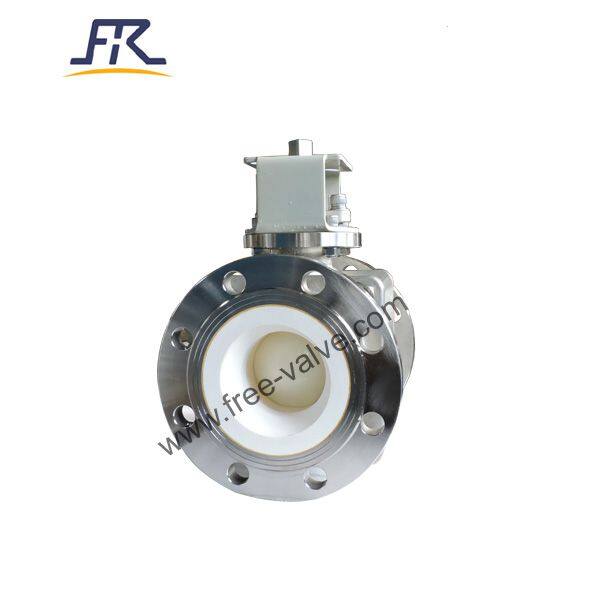

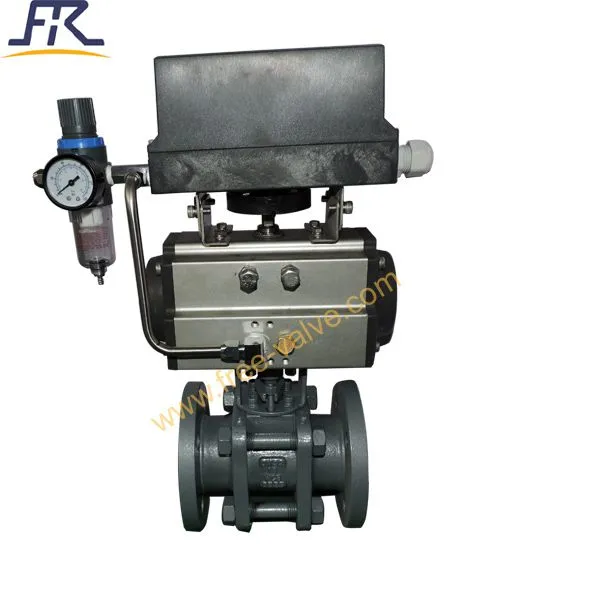

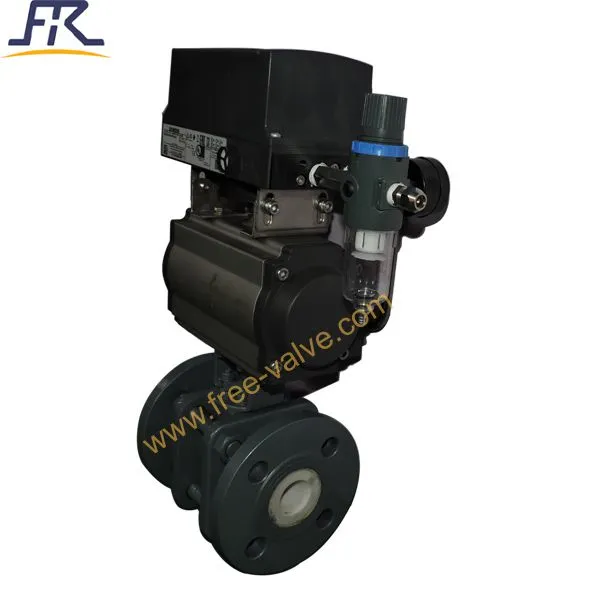

Pneumatic O Type Ceramic Lined Ball Valve FRQ641TC
- 200 Set / Sets per Month
- Shanghai Port
- T/T L/C D/P D/A
- 25 days
Product Details
| Brand Name: | FREE-VALVE | Place of Origin: | China | Model Number: | FR341TC |
| Material: | Casting | Application: | General | Structure: | Ball |
| Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Manual |
| Port Size: | NPS1” to NPS 6” | Media: | Other, Abrasive and corrosive medium | Temperature of Media: | Medium Temperature |
Product Description
FREE-VALVE brand pneumatic O type ceramic lined ball valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids .
Features:
1.The hardness of the ceramic material can be higher than HRC80.
2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.Customized actuation types are installed on the ceramic ball valve, the manual lever or worm gear, as well as with pneumatic and electric actuators.
4.Carbon steel valve body material make you reduce the maintaining cost compare to stainless steel ball valve body material.
5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
6.The valve body is be casting type or forged type .
Technical Specification
Nominal Pressure 1.0MPa,Class150
Size Range :DN10~DN200 NPS1” to NPS 6”
Connection type:Flange end
Working Temperature ≤200℃
Operating Type:Manual operation, Pneumatic ,Electric
Sealing surface material:Engineering ceramic
Valve body material :WCB
Ball material:Engineer ceramic
Pressure test GB/T13927, API598
Face to Face GB/T12221, ASME B16.10
Application

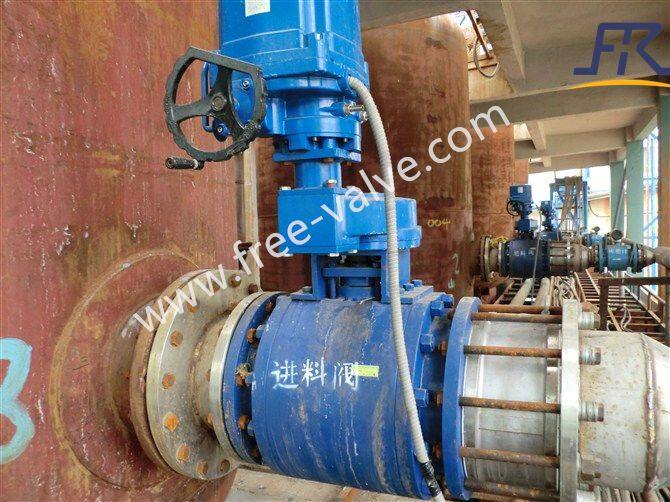

FREE-VALVE brand pneumatic O type ceramic lined ball valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment,Glue industry,chemical industry and food industry.
Model：FRQ641TC
Price terms:FOB,CIF,FCA,CFR
Price:100-500USD/set
Origin:China
Brand:FREE-VALVE
