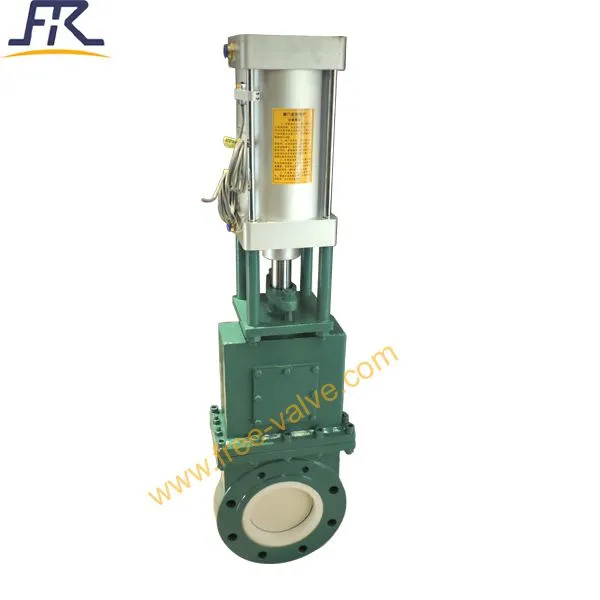

Pneumatic Split Type Ceramic Lined Knife Gate Valve

 FREE-VALVE brand split type ceramic lined knife gate valves are designed as 2PC structure.Valve seat is made by anti abrasive engineer ceramic .To avoid touching between medium and metal material from valve body , valve inner body is lined by PTFE. So this can ensure the purity of the medium without any metal touching with medium and the valves are widely installed at Lithium battery powder processing application .

Features:

1) Valve body is made as 2PC structure .wafer connection type ,short face to face dimension ,easy to install，small space occupation.

2) Double packing sealing structure is design. There is purge between first and second packing ,so it is easy to clear the leaking medium caused by failure of first packing .

3) The material of valve seat is engineering ceramic ,and valve disc is engineering plastic ,The valve body cavity is lined with PTFE sheet with inherent lubrication .In this way, when the medium flows through the valve, the metal part of the valve cavity is avoided to contact the powder medium and mix the medium, so as to ensure the purity of the medium.

4) Wear-resistant engineering ceramics are used to make the valve seat, with good erosion resistance and wear resistance. Valve disc PEEK has good wear resistance and self-lubricating property.

Technical Specification

1) Size Range: NPS2~NPS12,DN50~DN300

2) Pressure Range: PN6~PN16

3) Applicable Temperature.: 0~200℃

4) Connection Type: Wafer

5) Sealing material: engineering ceramics

6) Body Material: WCB, CF8, CF8M, CF3M

7) Pressure test:GB/T13927, API598

8) Face to Face: GB/T12221, ASME B16.10

9)Operating type: Pneumatic

Application

The split type ceramic lined knife gate valve of FREE-VALVE brand adopts  special design. When the powder medium flows through the valve body, the medium does not contact with the metal part of the valve body, so as to ensure the purity of the medium. Therefore, the valve can be widely used in lithium battery processing systems or similar operating conditions.

Model：FRZ673TC

Price terms:FOB,CIF,FCA,CFR

Price:100-500USD/set

Origin:China

Brand:FREE-VALVE
