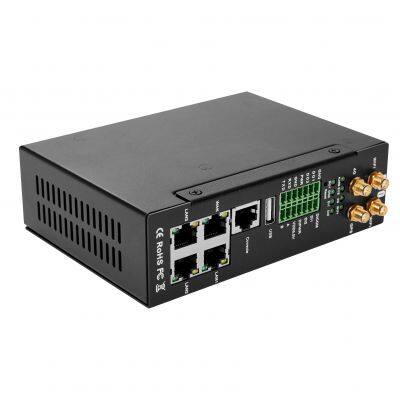

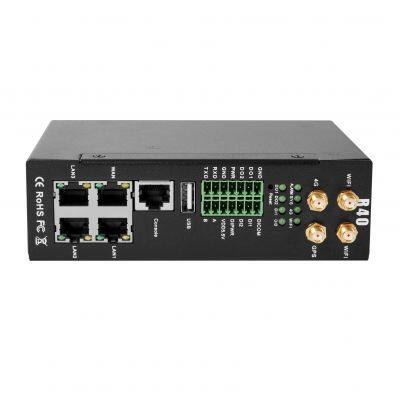

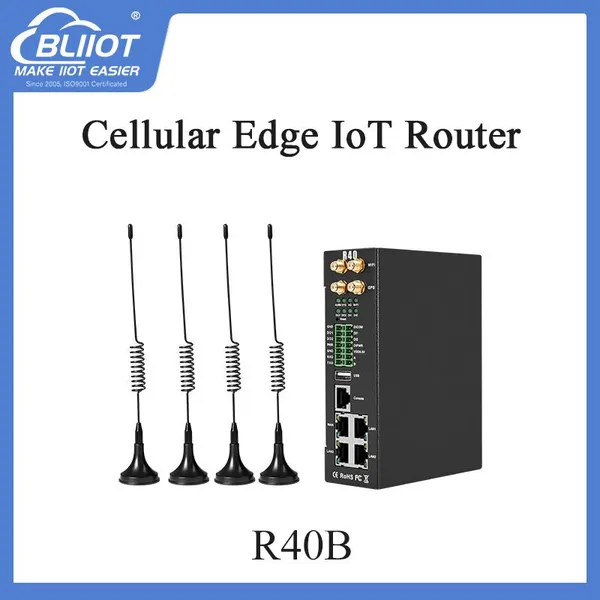

BLIIoT R40B Serial RS485/RS232 Dual SIM Modbus MQTT Edge Computing Router

Name: BLIIoT R40B Serial RS485/RS232 Dual SIM Modbus MQTT Edge Computing Router
Brand: BLIIOT
Availability: InStock

FOB Price

USD $209 - $265 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T PayPal
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

BLIIOT

Place of Origin:

China

Model Number:

R40B

Product Description

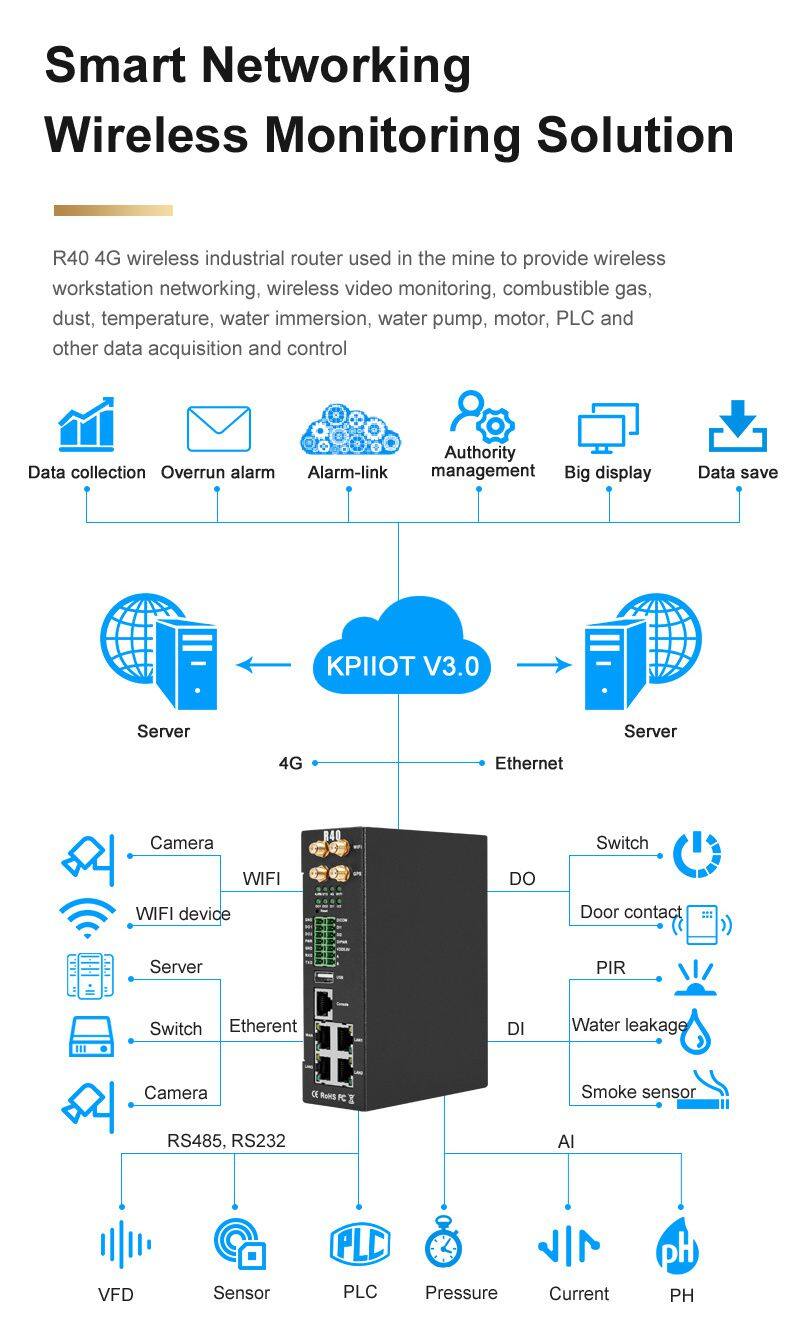

The R40B industrial router communicate via 4G and WiFi, it comes with Digital input, Digital output, Analog input, Ethernet ports, Serial ports, which can perform as Modbus master to collect data from sensors and detectors and upload the data to cloud platform for remote monitoring and event alarms.

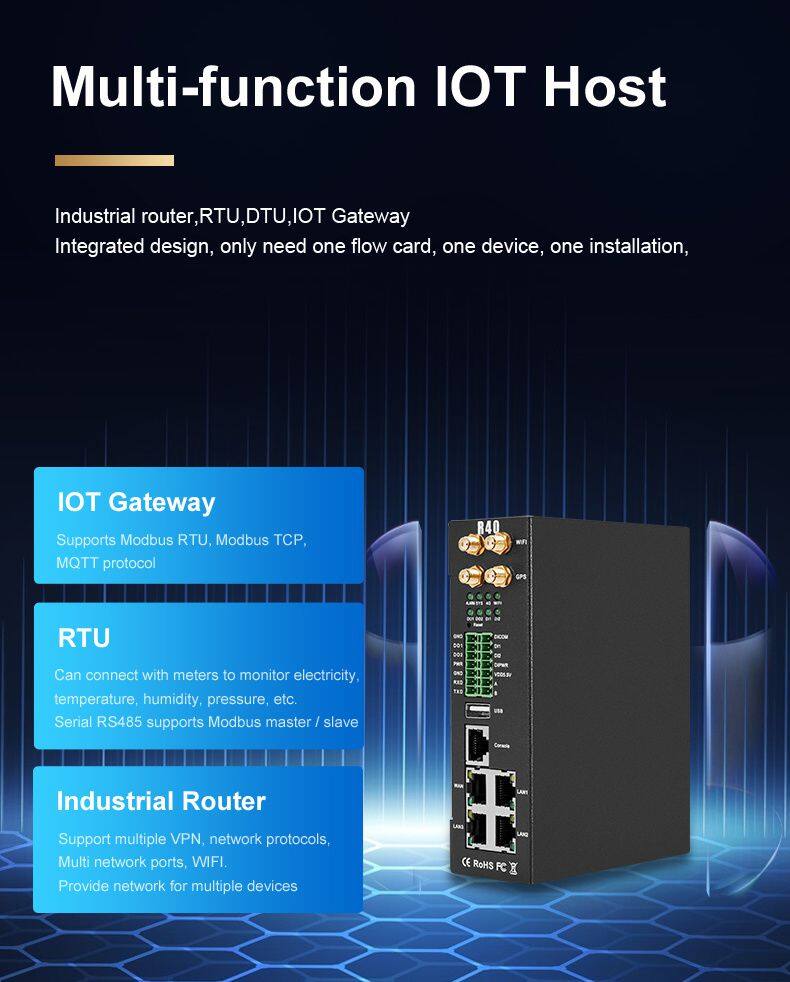

The IoT router integrates the functions of IoT gateway, RTU and industrial router, users only need one IoT router to meet the needs of data acquisition, remote control, event alarm and remote monitoring. It is an ideal solution for smart cities.

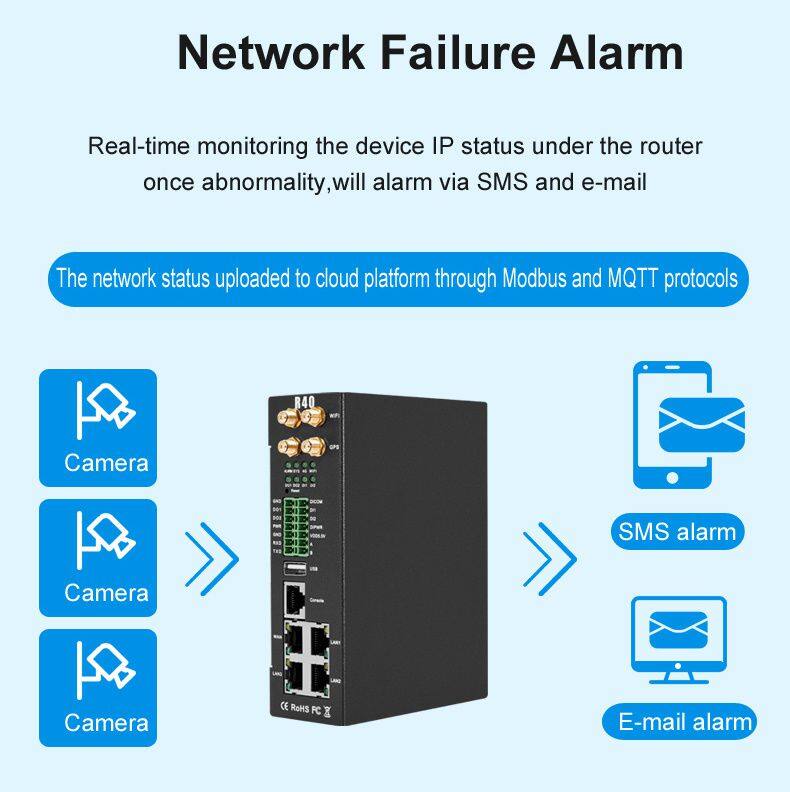

The M2M cellular routers support monitoring the online status of network devices connected to the LAN port, which can be reported to the platform through MODBUS or MQTT.

Item	Parameters	Description
Power Supply	Input voltage	9~57VDC
	Input current	Normal: 240mA@12V, max: 800mA@12V
	Connection	5.08mm terminals
	Protection	Anti-reverse connection Protection
WAN	Qty	1
	Interface Spec	RJ45,10/100Mbps, Automatically adapted to MDI/MDIX
	Protection	ESD ±30kV(contact), ±30kV(air) EFT 40A(5/50ns) Lightning strike 24A(8/20µs)
LAN(POE)	Qty	3
	Interface Spec	RJ45,10/100Mbps, Automatically adapted to MDI/MDIX
	POE(optional)	Supports 3 POE power output compatible IEEE802.3at/af Single POE maximum output power 30W With power management function Voltage range 48~57V
	Protection	ESD ±30kV(contact), ±30kV(air) EFT 40A(5/50ns) Lightning strike 24A(8/20µs)
Serial Port	Qty	2
	Type	1 RS485, 1 RS232
	Baud rate	1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400
	Data Bit	5, 6, 7, 8
	Parity Bit	None, Even, Odd
	Stop Bit	1, 2
	Working mode	Data transparent transmit, Modbus RTU to TCP, Modbus master, Modbus slave
	Protection	ESD(contact): 8KV Surge: 4KV(8/20us) ESD ±8kV(contact), ±15kV(air) EFT 4KV, 40A(5/50ns)
Console	Qty	1
	Type	CONSOLE
	Interface Spec	RJ45
	Protection	ESD:±8kV(contact), ±15kV(air)
USB (Reserved)	Qty	1
	Type	USB2.0(HOST)
	Protection	ESD ±8kV(contact), ±15kV(air)
WIFI	Antenna qty	2
	Antenna type	SMA
	Protocol	802.11a/b/g/n (mixed)
	Mode	AP mode, client mode
	Frequency	2.4G
	Channel	Channel 1 - 13
	Security	Open, WPA, WPA2
	Encryption	AES, TKIP, TKIPAES
	Connection number	16(Max)
	Speed	300Mbps(Max)
	Transmit Distance	Outdoor non-blocking/opening, covering up to 20 meters
	SSID Broadcast Switch	Support
Cellular Network	Antenna Port Qty	1
	Antenna Port Type	SMA
	4G(L-E)	GSM/EDGE:900,1800MHz WCDMA:B1,B5,B8 FDD:B1,B3,B5,B7,B8,B20 TDD:B38,B40,B41
	4G(L- AU)	GSM/EDGE:850,900,1800MHz WCDMA:B1,B2,B5,B8 FDD:B1,B2,B3,B4,B5,B7,B8,B28 TDD:B40
	4G(L-A)	WCDMA:B2,B4,B5 FDD:B2,B4,B12
	4G(L-V)	FDD:B4,B13
	4G(L-J)	WCDMA:B1,B3,B8,B18,B19,B26 FDD:B2,B4,B12 TDD: B41
	4G(L-CE)	GSM/EDGE:900,1800MHz WCDMA:B1,B8 TD-SCDMA:B34,B39 FDD:B1,B3,B8 TDD:B38,B39,B40,B41
SIM	Qty	2
	Interface Spec	Drawer interface, supports 1.8V/3V SIM/UIM (NANO)
	Protection	In-built 15KV ESD Protection
GPS (optional)	Antenna qty	1
	Antenna type	SMA
	Tracking Sensitivity	> -148 dBm
	Horizontal Accuracy	2.5m
	Protocol	NMEA-0183 V2.3
Digital input	Qty	2
	Type	Switch contact signal (dry node) or level signal (wet node)
	Range	1: High level, 5~30VDC, close signal 0: low level 0~1VDC open signal
	Pulse frequency	Max 100Hz
	Protection	Isolation voltage 3750Vrms
Digital output	Qty	2
	Type	SINK output
	Load voltage	Max 50VDC
	Load current	500mA(single), 625mW
	Protection	EFT: 40A(5/50ns)
Analog input	Qty	4
	Type	0~5V,4~20mA,0~20mA
	ADC Resolution	16bit
	Protection	EFT: 40A(5/50ns)
Indicator light	ALARM	Alarm indicator light
	SYS	System running status indicator
	4G	4G status indicator
	WiFi	WiFi status indicator
	DO1, DO2	Digital output indicator light
	DI1, DI2	Digital input indicator light
System	CPU	MIPS CPU, Clock Speed 580Mhz
	Storage	16MB (Scalable to 32MB)
	RAM	128MB (Scalable to 256MB)
Software	Network Protocol	PPP, PPPoE, TCP, UDP,DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS,SNMP etc.
	VPN	Ipsec, OpenVPN, L2TP
	Firewall	DMZ, DoS defense, IP packet, Domain name and MAC address filtering, port mapping, access control
	Remote Management	Support web remote configuration
	System Log	Support
	Firmware Upgrade	Support serial port local TFTP/web firmware upgrade
Certificate	EMI	EN 55022: 2006/A1: 2007
	EMS	IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8
	MTBF	100,000 hours
	Others	CE, FCC, ROHS, 3C
Working Environment	Working temperature	-40~85ºC
	Storage temperature	-40~105ºC
	Humidity	5~95%RH
Others	Enclosure	Metal
	Size	H145mm * L110mm * W45mm
	IP level	IP30
	Net weight	790g
	Installation	Wall-amount/Rail-amount
