Manufacturer of Dongfeng Tianlong 33 square cleaning and suction truck for large-scale pipeline dredging and suction trucks for export

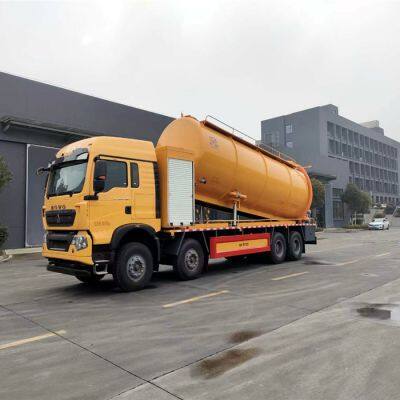

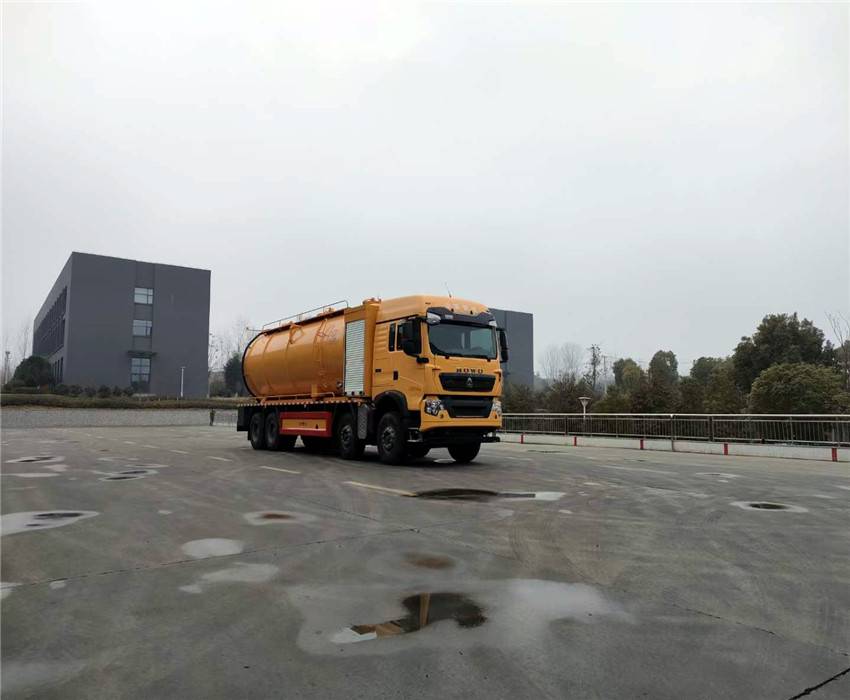

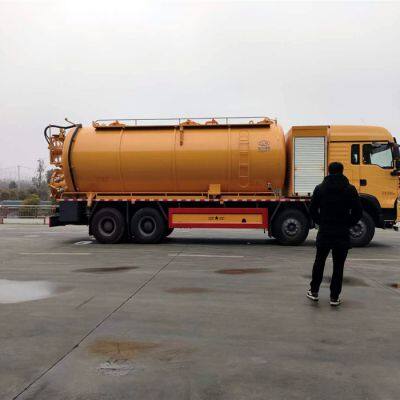

Large scale cleaning and suction truck Dongfeng Tianlong 33 square meters cleaning and suction truck 10 square meters clean water tank 23 square meters dirty water tank

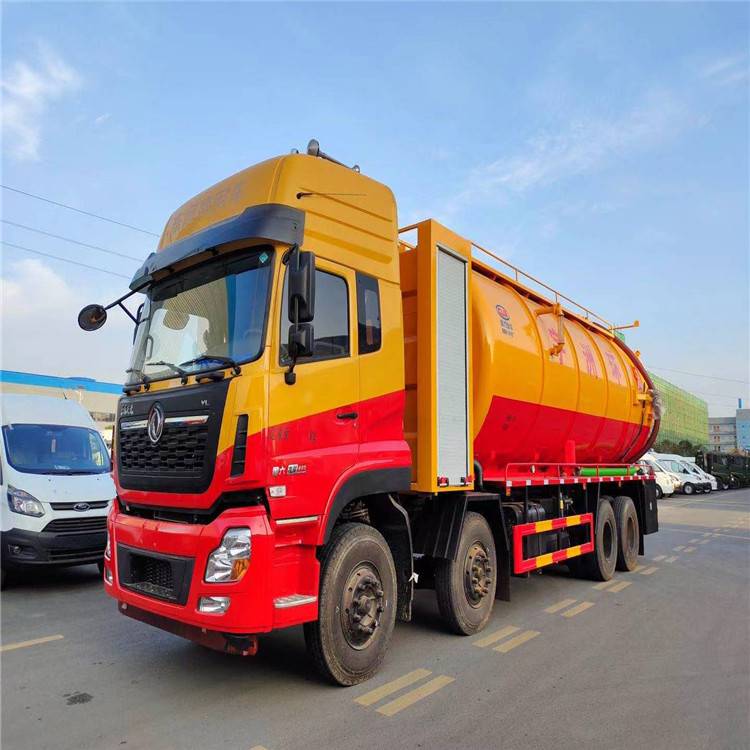

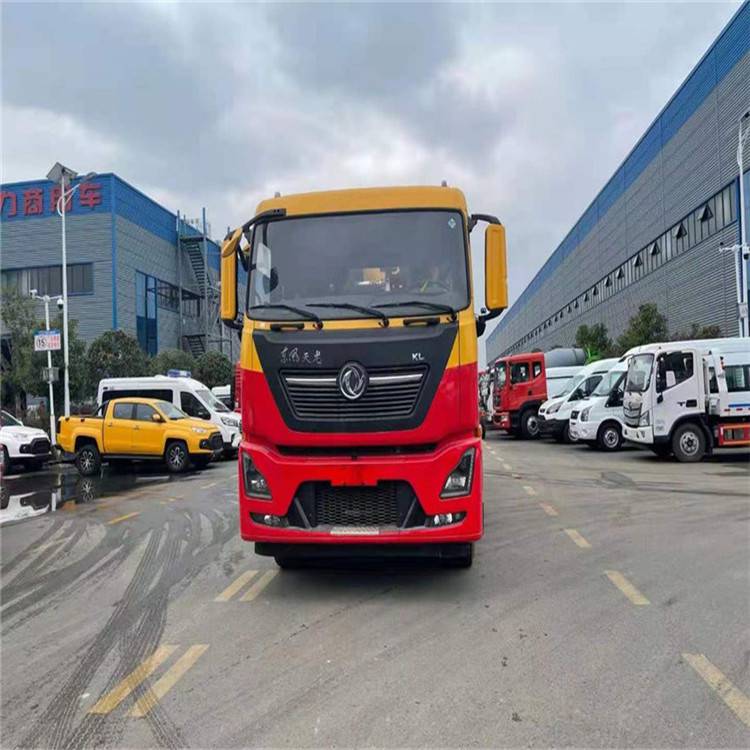

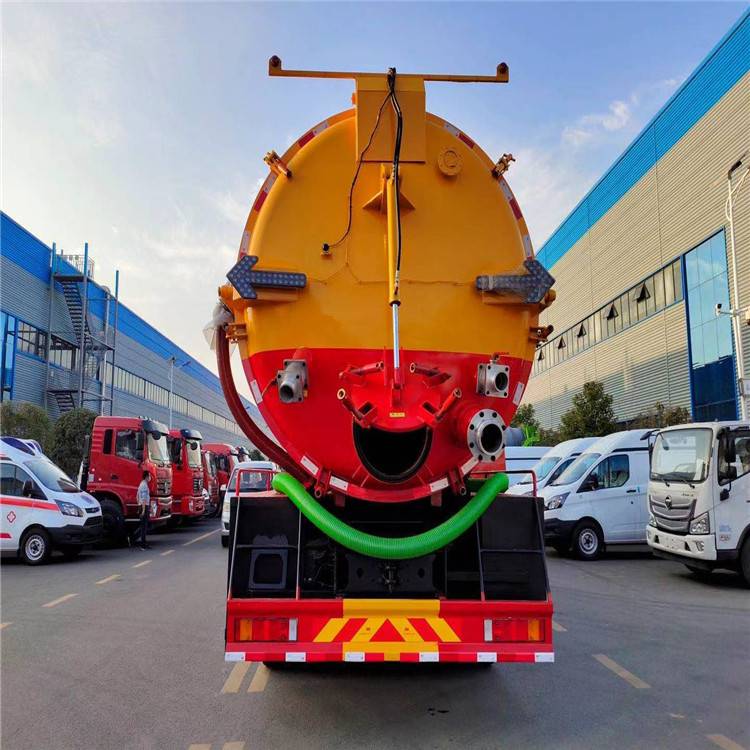

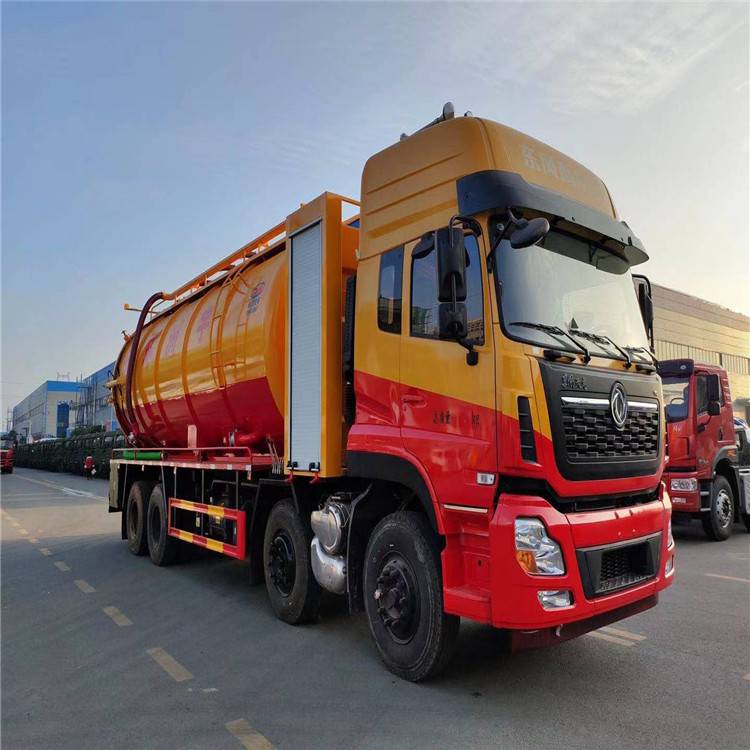

The Dongfeng Tianlong cleaning and suction vehicle adopts the Dongfeng Tianlong chassis, engineering yellow cab (color optional), Dongfeng 465 horsepower National VI engine, original double-layer beam, Faust 9-speed transmission, 4350+13501100 steel wire tires, original ABS, with directional assistance, clutch booster, air brake, and air conditioning. The total volume of the tank is about 33 cubic meters (the volume of the water tank and the sewage tank can be freely distributed). It is made of high-quality steel plates from Wuhan Iron and Steel Group, with a wall thickness of 8. The anti wave plate is reasonably designed in the middle of the tank, and the sewage tank is lined with a butterfly shaped head (with reinforcement ribs). The inside of the tank is covered with stainless steel plates, which are corrosion-resistant to the bottom of the tank and facilitate unloading. The tank is equipped with a ladder. The double top design of the left and right oil cylinders (with buffer support rods) makes the lifting and lowering of the tank more reliable, and the vehicle has strong stability. The water inlet of the box is a ball valve type fire hydrant (convenient for opening and closing, durable), with a fire interface, a thickened liquid level pipe, and a pagoda style hand washing valve

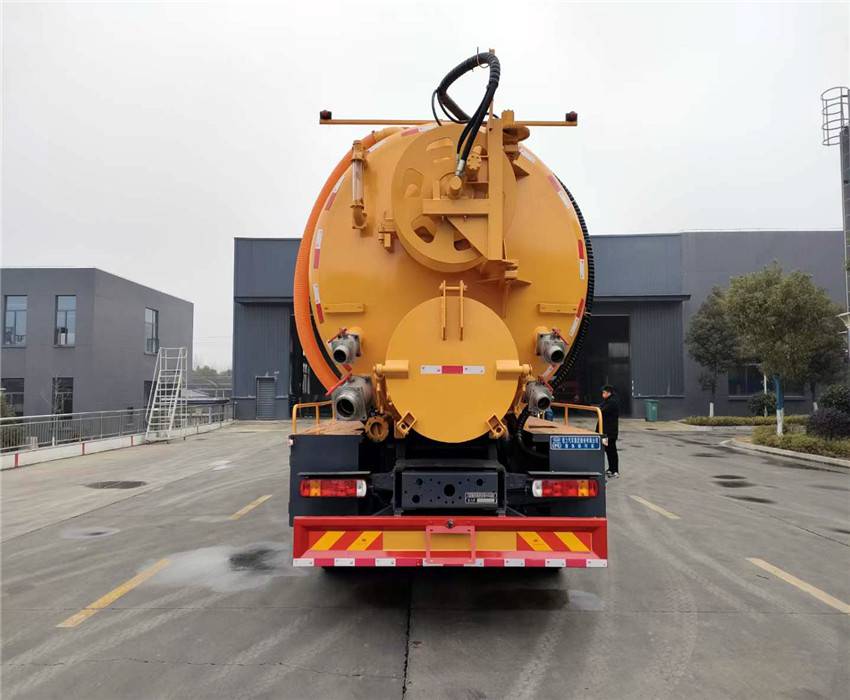

Dongfeng Tianlong 465 horsepower National VI engine, original double-layer beam, DDI 465 horsepower 6-cylinder engine, Shaan Gear 12 speed transmission, 2050+4400+1350 wheelbase, 5.5T/13T front and rear axles, 295 vacuum tires, original ABS, with directional assistance, clutch booster, air brake, and air conditioning. Upper configuration: The volume is about 33 cubic meters, the water volume is about 10 cubic meters, and it is sewage. The tank head is 8mm thick. The anti slip platform at the top of the tank is equipped with a floating anti overflow valve. The high-pressure cleaning part adopts a 330L flow rate high-pressure pump, and the high-pressure pipe from the pump outlet to the winch adopts a 32mm through-hole pipeline. The hydraulic reel is used, which swings left and right, and the pipe is released and collected. The rear head can rotate the hydraulic winch. The high-pressure pipe is 100 meters long, 25mm diameter, and high-pressure double-layer steel wire pipe with a pressure resistance of 22mpa.

Rear protective ground clearance (mm): 480; Effective volume of tank (cubic meters), external dimensions of tank (mm): Tank size (straight section length x diameter) (mm): 7100 x 2350. The front half of the tank is a clean water tank, and the back half is a sewage tank. The suction tank and water tank are two independent containers that cannot be fully loaded at the same time. The tank can be lifted*** Function and device description: The vehicle is equipped with a power take-off and vacuum pump for suction of dirt; Equipped with high-pressure water pump and high-pressure water pipe for cleaning; Optional top cover structure, optional rolling shutter door, and optional vehicle appearance style
