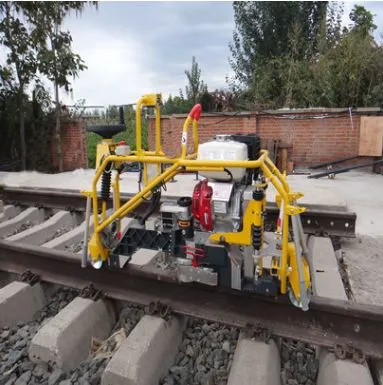

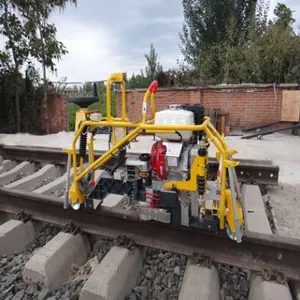

Digital Rail Track Profile Grinding Machine
Negotiable
/ Bag
2 Bags(Min.Order)
- 500 Bag / Bags per Month
- T/T
You May Like
-
Li-Battery Electric Railway Grinding Machine/ Rail Grinder
-
Internal Combustion Rail Waist / Rail Web Grinding Machine / Grinder
-
Hydraulic Rail Tamping Machine for Railway Ballast Tamping
-
Automatic Remote Control Rail Tamping Machine
-
Hydraulic Rail Turnout Tamping Machine
-
Portable Rail Ballast Tamper
Product Details
Brand Name: | linkage | Place of Origin: | China | Model Number: | NGM-5.1 |
Product Description
Product Description
NGM-5.1 Rail Profile Grinding Machine
This machine is mainly used for forming and grinding operations of railway rail welding joints and rail surface repairs. The
development and application of the CNC feed unit realizes the intelligent control of the grinding wheel feed. Significantly
improve the profiling accuracy and polishing efficiency.
development and application of the CNC feed unit realizes the intelligent control of the grinding wheel feed. Significantly
improve the profiling accuracy and polishing efficiency.
BENIFITS
● Angle of the grinding head is set using an adjustment wheel, lowering/raising of the grinding stone is electrically contlled ● Equipped with spark protection device ● Equipped with electric control system prevents over grinding by limiting the lowering of the grinding stone ● Grinds the whole head of rail in one single operator, no need to turn the machine or to handle it
Specification
Model | NGM-5.1 |
Type | Rail Profile Grinding Machine |
Material | Stainless Steel |
Dimensions (L x W x H) (mm) | 1500 * 450 * 750 mm |
Engine | HONDA GX270 |
Power | 5.1 kW |
Grinding wheel specifications | φ125x65 mm |
Feeding accuracy | 0.1 mm |
Turning angle of grinding stone | ±90° |
Spindle revolution | 4100r/min |
Grinding stone feeding stroke | 42 mm |
Profile wheel span | 1000 mm |
Weight | 100 kg |
Weight of supporting rod | 14 kg |
