Automatic Wire Cutter and Stripping Machine

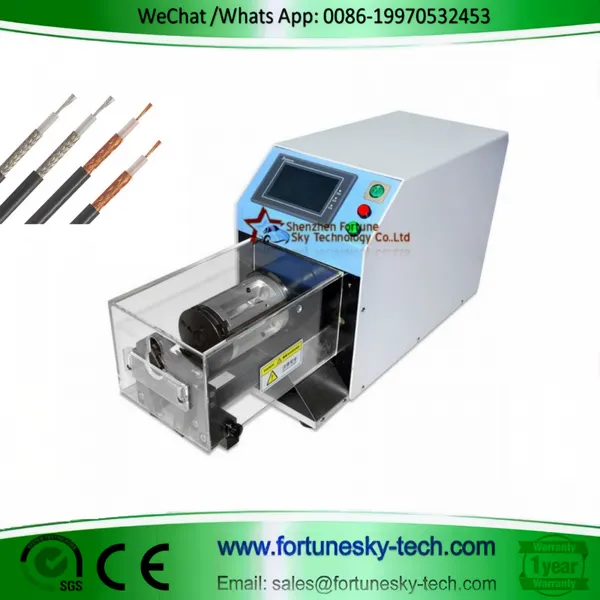

The 4806 Rotary Coaxial Cable Stripping Machine is a high-performance solution for processing coaxial cables and special single wires. This innovative machine utilizes advanced features to ensure exceptional accuracy, speed, and efficiency in multi-layer stripping applications.

Designed for Precision and Efficiency:

• Rotary Turret Technology:  The rotating turret system  enhances processing speed and accuracy  when stripping multiple cable layers.

• Multi-Layer Stripping:  Capable of stripping up to 9 layers of various  sizes and sheath wires without blade changes,  minimizing downtime and maximizing efficiency.

• Digital Control and Display:  The user-friendly touchscreen interface allows for  precise setting and monitoring of cutting diameters and stripping lengths.

Additional Features:

• Durable Construction:  Employs high-quality materials,  including imported tungsten steel blades and  centering sheets, ensuring long-lasting performance.

• Self-aligning Clamping System:  Provides secure and consistent cable grip  during the stripping process.

• Adjustable Productivity:  Delivers a stripping rate of 500-700 pieces per hour,  adaptable to different cable types and lengths.

• User-Friendly Operation:  Offers both manual and sensor-activated opening  modes for convenient cable loading and unloading.

Technical Specifications:

• Device Name: 4806 Rotary Coaxial Cable Stripping Machine

• Maximum Cable Diameter: 0.81mm - 6.99mm

• Cutting Unit Depth: 0.01mm

• Stripping Length: 48mm

• Stripping Layers: 9

• Drive Mode: Motor/Ball Screw Drive (Imported from Japan)

• Display: Touchscreen

• Blade Material: Tungsten Steel (Imported from Switzerland) (2 Blades)

• Centering Sheet Material: Tungsten Steel (Imported) (2 Sheets)

• Clamping Means: Self-aligning, Motor Driven, Programmable Clamping Force

• Productivity: 500-700 pcs/h (Cable Type and Length Dependent)

• Open Mode: Manual/Sensor

• Power Supply: 220V / 50Hz

• Power Consumption: 250W

• Net Weight: 25kg

• Dimensions: 525 x 186 x 278 mm

• Working Environment: 0-50°C, Moderate Dryness, Vibration-free Work Surface

The 4806 Rotary Coaxial Cable Stripping Machine is a powerful and versatile solution for various coaxial cable and single wire processing needs.  This high-precision machine offers exceptional efficiency, minimizes downtime, and  delivers consistent, high-quality results.
