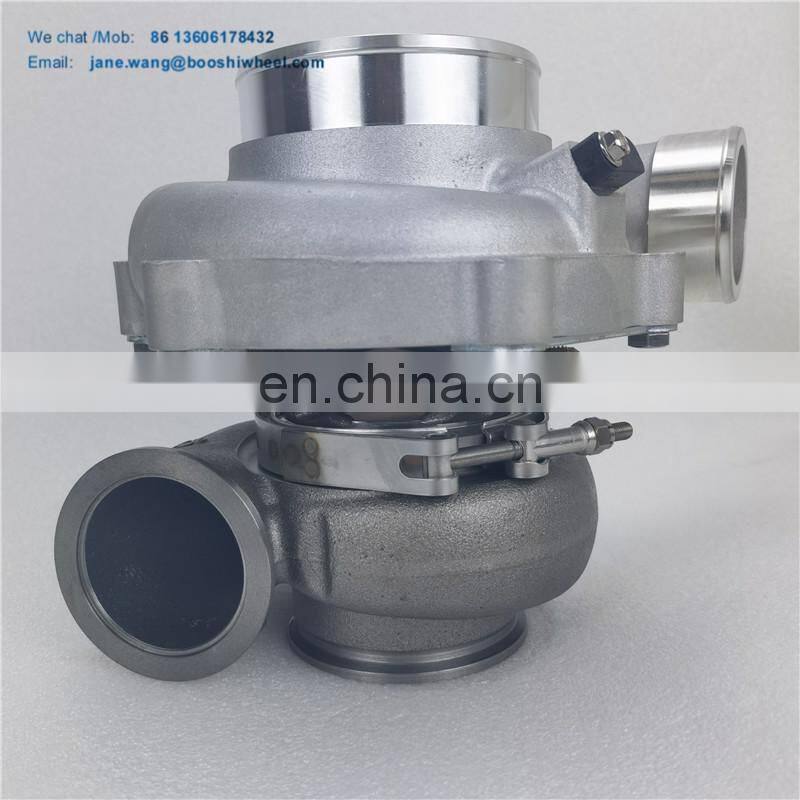

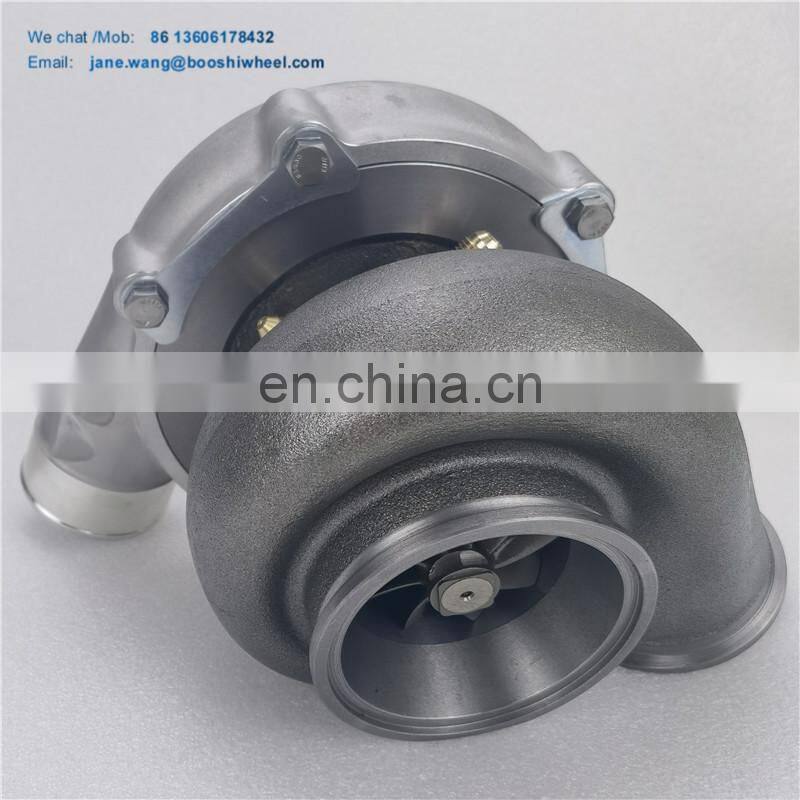

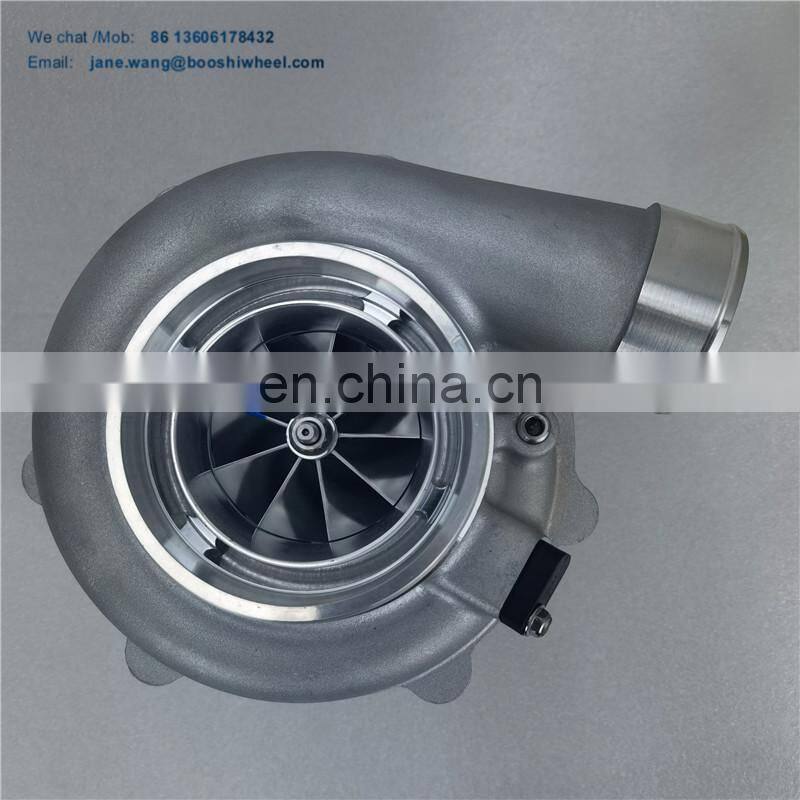

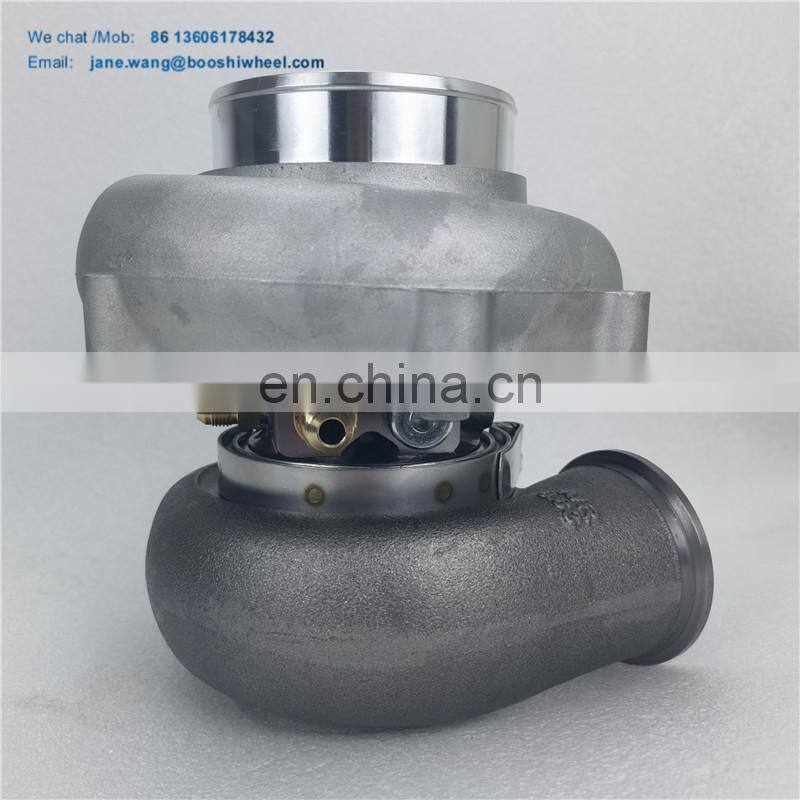

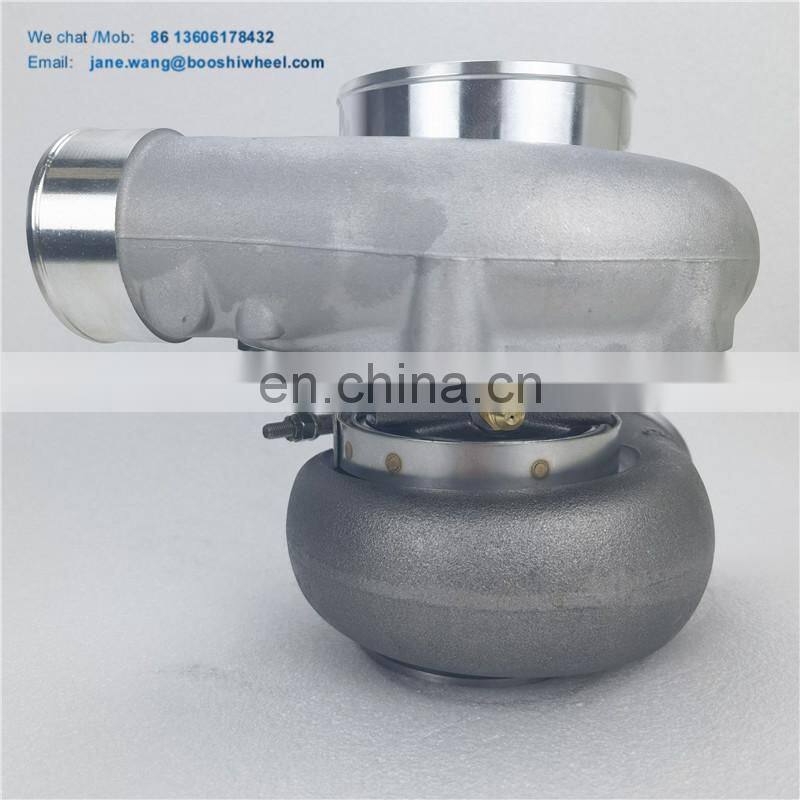

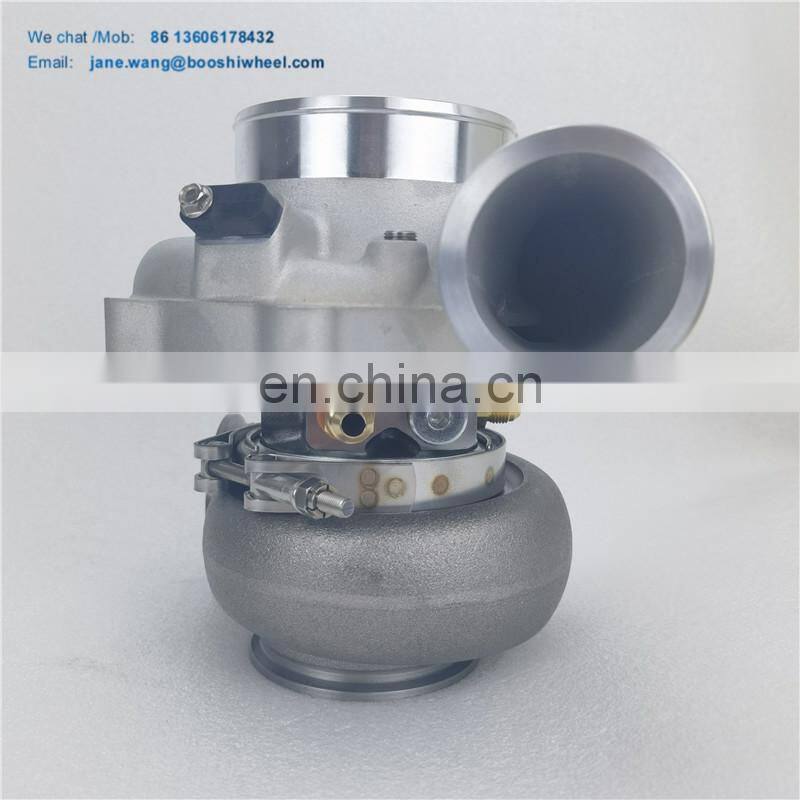

performance turbocharger G35-1050 Standard rotation 880695-5002S 880695-5002 880695 AR 0.83 V-Band Cast iron Turbine turbo

• Horsepower: 700 - 1050HP
  Displacement: 2.5 - 5.5L
• Garrett^® G Series Compressor Aerodynamics for maximum HP.
• Fully machined Speed Sensor and pressure ports.
• New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
• Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
• Oil restrictor and water fittings included.
• Reverse rotation.
• Compressor side: TRIM 65 A/R 0.75
• Compressor Air Inlet: Hose 4.00" (101.60mm)
• Compressor Air Outlet: Hose 2.00" (51.15mm)
• Bearing housing: Water and Oil cooled system.

• Product Description:
• Garrett® G35-1050 REVERSE Rotation Supercore (Turbo without turbine housing).
•


  Product Features:
• New G Series compressor wheel aerodynamics
• Fully machined speed sensor and pressure ports
• Standard and reverse rotation configurations available
• Oil restrictor and water fittings included with purchase
• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Mar-M turbine wheel material rated up to 1050° C | 1922° F
• Product Specifications:
• Compressor Wheel Inducer: 68mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
• Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
• Oil feed fitting with .035" restrictor: ATP-OIL-021
• Oil drain flange: Product Code: ATP-FLA-010
• Oil drain gasket: Product Code: GRT-GSK-008
• Oil drain fasteners: Product Code: MIA-FST-034
• Boost Pressure Port Fitting: ATP-FTG-198

NOTE: Alternate coolant and oil fittings and flanges are available.
