Cable structure photovoltaic bracket
- 100000 Set / Sets per Month
Product Details
| Application: | Industrial |
Product Description

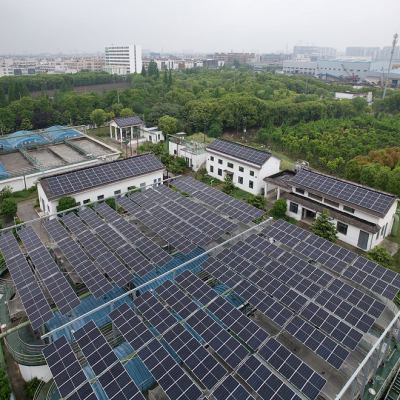

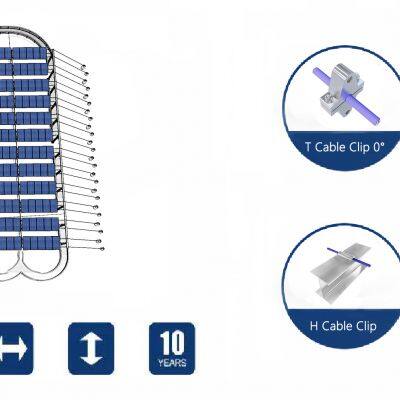

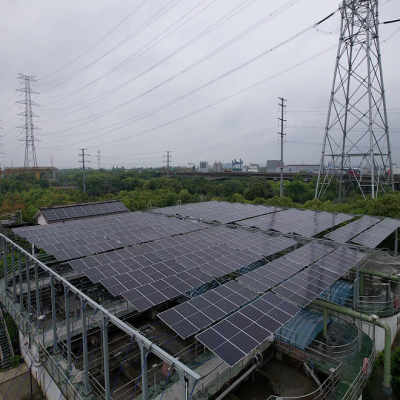

Cable Structure is suitable for sewage treatment plants, rivers, highways, streets, barren mountains, wasteland, beaches, ponds, rivers, landfills and other long-span applications, which adopts prestressed wire rope tensioned between two fixed points,
The fixed points at both sides are supported by a rigid structure and a cable-stayed steel strand on the outside, which can achieve a large span of 10~60m and adopts well to the environment, convenient construction, good ventilation, and significantly improve space utilization, economic benefits are obvious.
Technical Parameters
| Installation site: | Open Ground |
| Installation angle: | 10°, 15°, 20° |
| Module layout: | Vertical or horizontal |
| Max wind speed: | 45m/s |
| Material: | Galvanized aluminum magnesium Q235 steel |
| Colour: | Natural or customized |
| Standard: | BS6399, JISC 8955, Eurocode 1, DIN 1055,AS/NZS 1170 and other standards |
| Warranty: | 10 years |
