Truck O Liner wheel alignment machine

Truck-O-Liner wheel alignment machine E3 is used to detect the alignment parameters of the truck wheels, suspension system and steering system, and compare them with the original design parameters, guiding the body shop technician to make corresponding adjustments to the wheel alignment parameters to make them meet the original design requirements, so as to achieve ideal vehicle driving performance, ensure the stability and safety of the truck driving, and reduce uneven wear and fuel consumption of the car tires.

Wheel alignment machine E3 benefits:

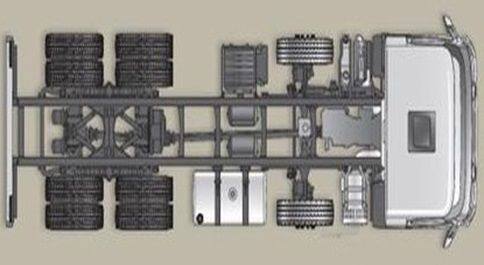

Simultaneous measurement of multiple axes: In addition to measuring toe and camber angles, it can also measure balance, clearance value, synchronization, wheelbase and other functions.

Heavy vehicle enclosure measurement: heavy vehicle 3D adopts three-dimensional full-angle measurement, true 3D full enclosure measurement, and whole bridge measurement, which can measure the toe-in, camber and other angles at one time.

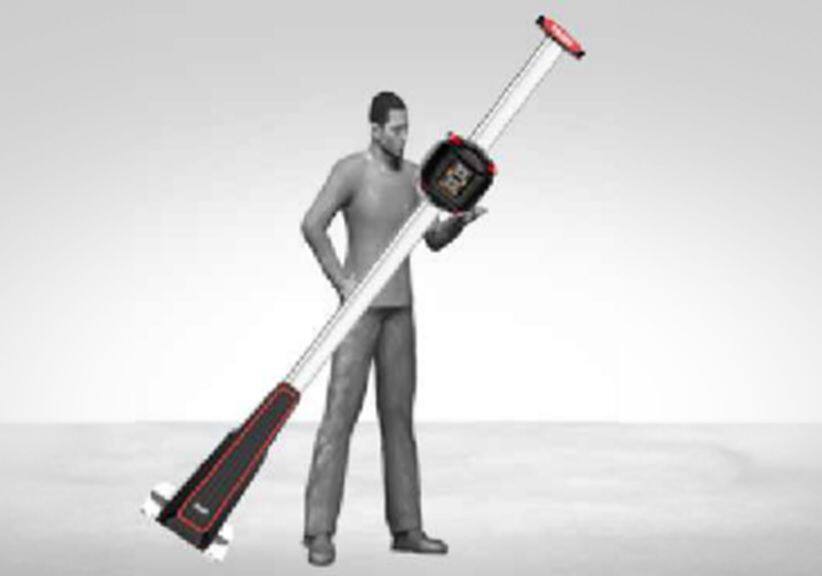

Movable: Operators can easily move the 3D locator, and the mobile design enables multi-station measurement. The mobile power mode is convenient for outdoor work.

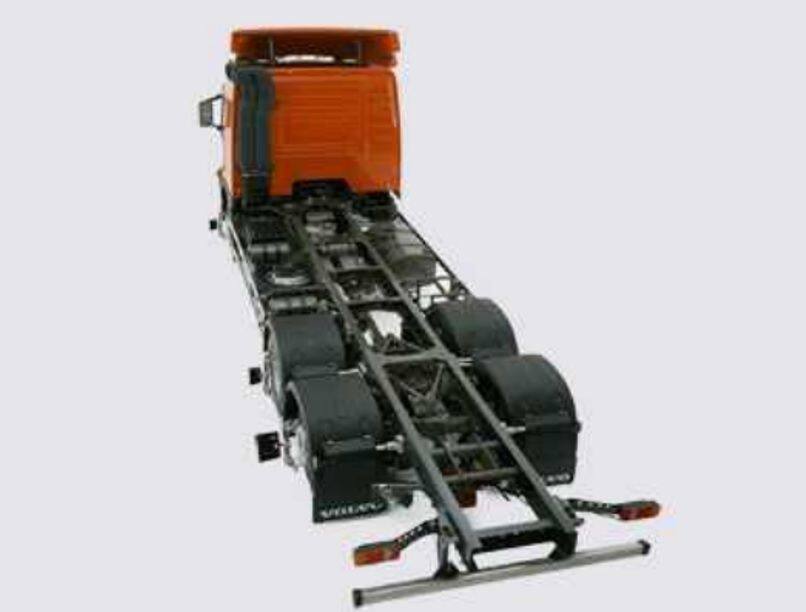

Compatible with long and short vehicles: Suitable for testing vehicles with different body lengths and chassis heights, with long and short wheelbase compatible modes, and can measure multi-axle and multi-wheel vehicles such as buses, small trucks, and large trucks.

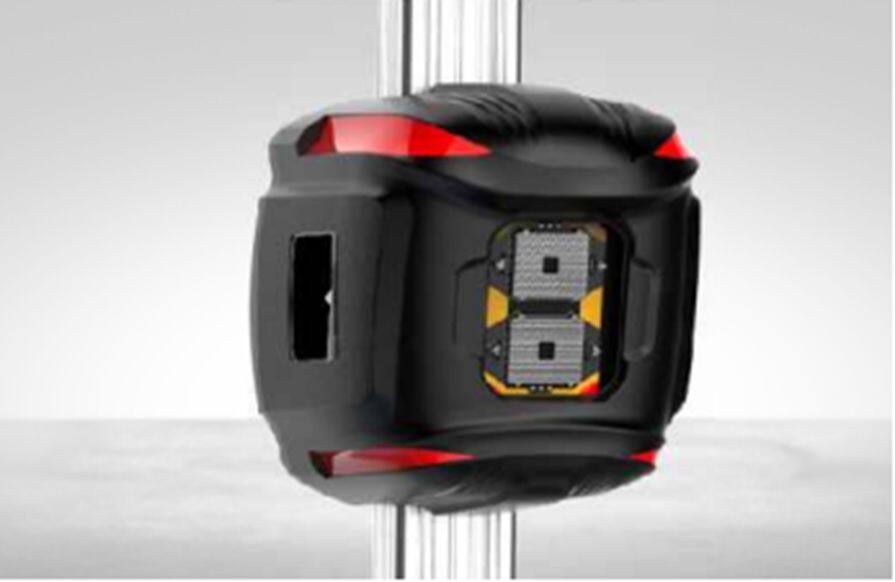

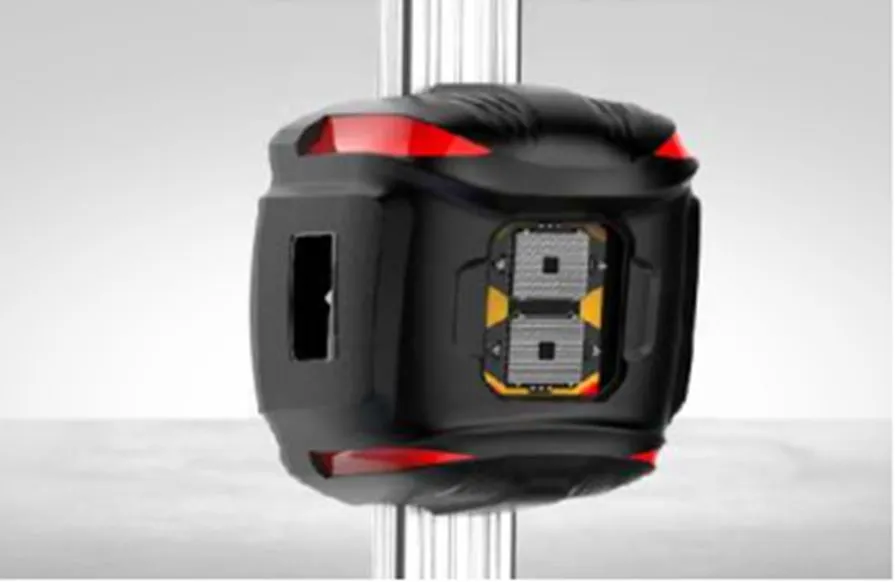

High-precision five-camera measurement: Five high-precision cameras are used to form two separate camera assemblies. Easy installation and maintenance.

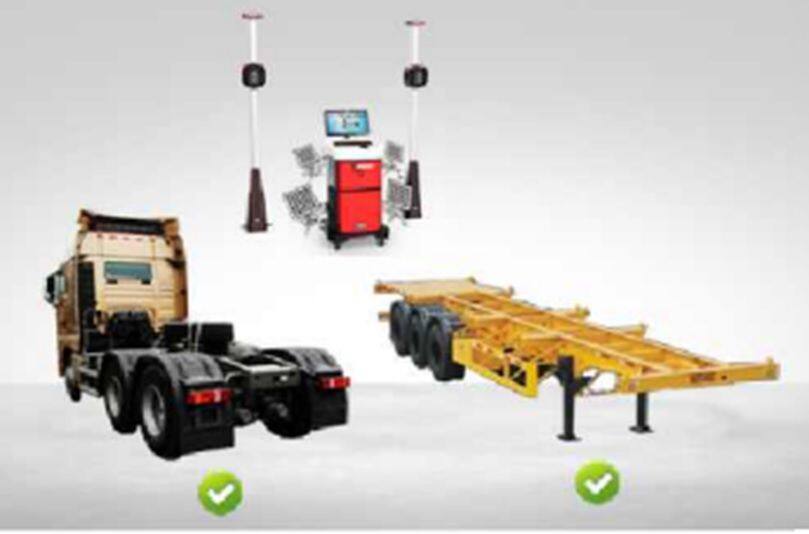

Compatibility measurement of truck and trailer: Compatible mode for large and small vehicles (commercial vehicles, passenger vehicles), ultra-long wheelbase measurement mode, multi-axle and multi-target measurement, one machine for multiple uses.

Measurement basis:

The measurement technology based on the vehicle body is more accurate and stable.

Camera measurement system: multiple cameras combined with multiple target disks create a revolutionary measurement method.

Target disk: no electronic components, replaces traditional electronic sensors, and eliminates equipment failures that may be caused by circuits. The structure is strong and does not require regular recalibration.

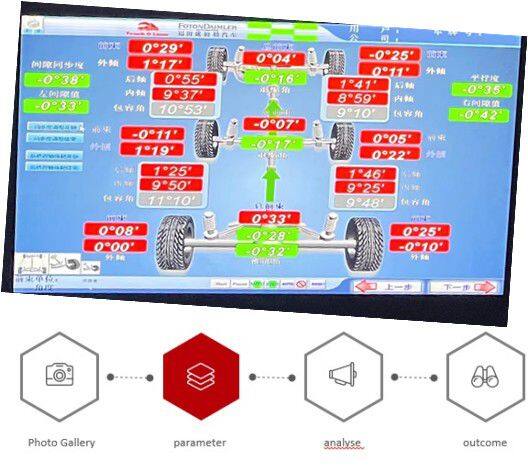

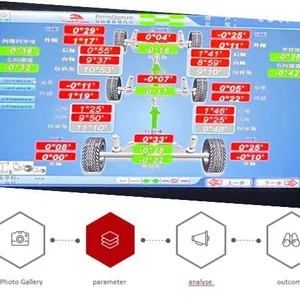

Software system: simple operation, read basic positioning data within two minutes.

Advantage:

Comparing with competitors:

Wheel alignment machine E3 configuration:

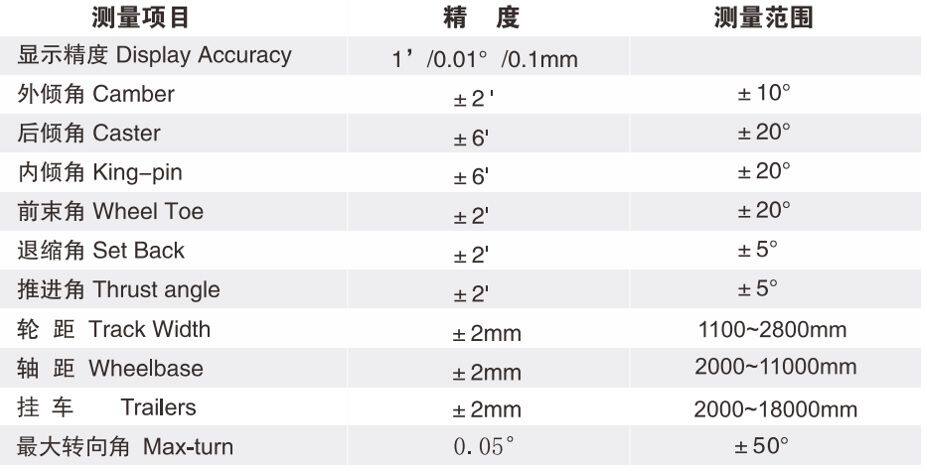

Specification

FAQ

Why do we need four-wheel alignment?

What is wheel alignment?

The wheel alignment machine  is used to detect the alignment parameters of the vehicle wheels, suspension system and steering system, and compare them with the original design parameters, guiding the user to make corresponding adjustments to the wheel alignment parameters to meet the original design requirements, so as to achieve the ideal vehicle driving performance, ensure the stability and safety of the vehicle driving, and reduce the uneven wear and fuel consumption of the car tires.

Tire wear and high fuel consumption are common problems for commercial vehicles (buses, trucks) around the world. The cause is the misalignment of wheels and axles. Various tests have shown that correct wheel alignment can save 8% of fuel consumption and increase tire life by more than 30%. Correct wheel alignment helps vehicles drive more comfortably and is conducive to traffic safety. Misalignment of the rear axle of a truck or trailer can cause abnormal tire wear, accelerated wear of parts, heavy steering wheels, vehicle deviation, increased fuel consumption, etc. These phenomena are all causes of vehicle performance degradation. To eliminate these problems and ensure the stability of the vehicle, the most effective way is to do wheel alignment. It not only ensures the normal driving of the car, but also extends the service life of the tires while saving fuel consumption. In order to save fuel and increase the service life of the tires, it is recommended that commercial vehicles be tested for wheel alignment once a year.

Under what circumstances is a four wheel alignment inspection necessary?

1.After every 50,000 km or 3 months of driving;

2.The vehicle deviates when driving straight;

3.The steering is unstable when driving straight;

4.The tires are abnormally worn;

5.The fuel consumption suddenly increases;

6.Replace the suspension or steering and related accessories with a new one;

7.Replace the tires;

8. The trailer is tail-spinning and the three axles are not parallel;

Safety tips:

1.The wheel alignment is best used with a pit, which should be basically level.

2. Do not use the wheel alignment machine or measuring head in a humid, vibrating, dusty or metal debris environment, and do not allow the alignment machine or measuring head to contact rainwater, to prevent electric shock.

3.When the equipment is not in use, the computer should be turned off according to the normal procedure, and then the power switch behind the control box should be turned off, and the power plug of the equipment should be unplugged from the socket.

4.The equipment operation steps require the vehicle to move, otherwise the vehicle parking brake should be pulled up. And the tires should be covered with wooden squares.

5.When lifting the body to make rim compensation, the safe operation of the jack should be followed.

6.When checking and adjusting the alignment parameters, high-temperature parts such as the exhaust system, manifold, engine and radiator should not be touched.

7.Replacing vehicle parts and repairing the wheel alignment machine require professional operation.
