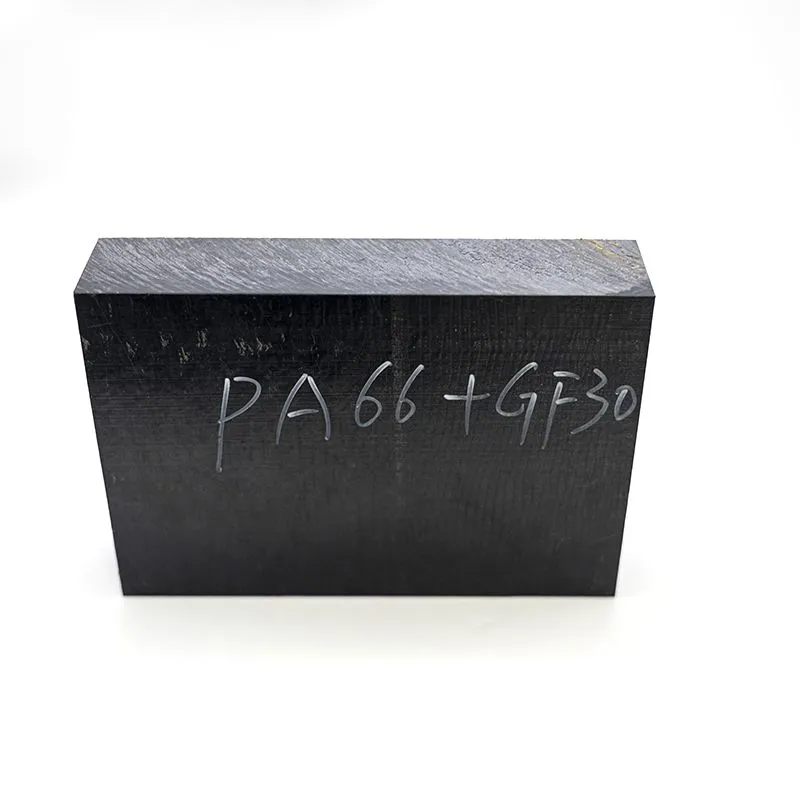

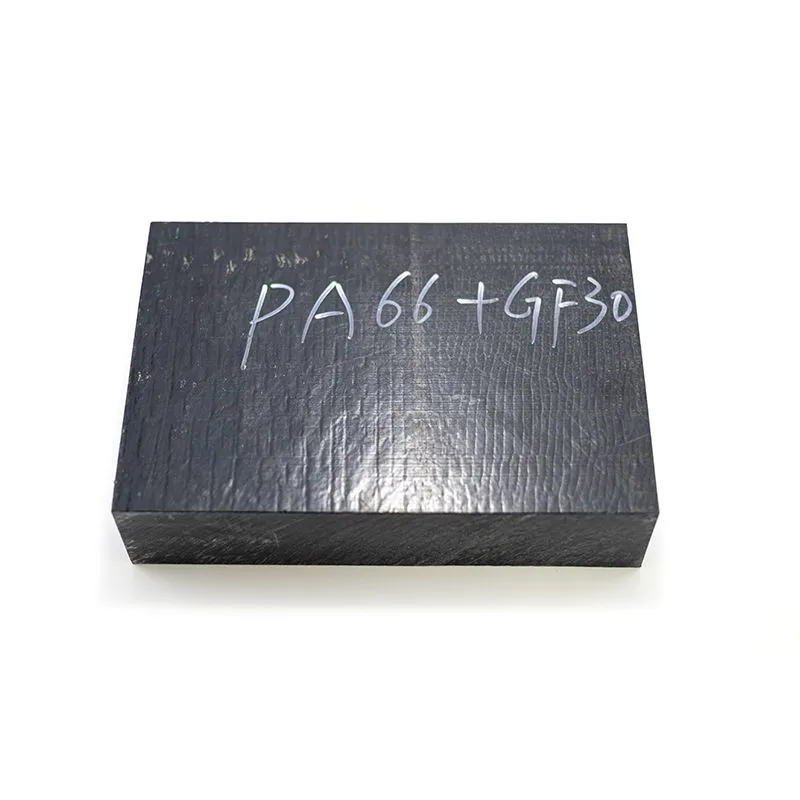

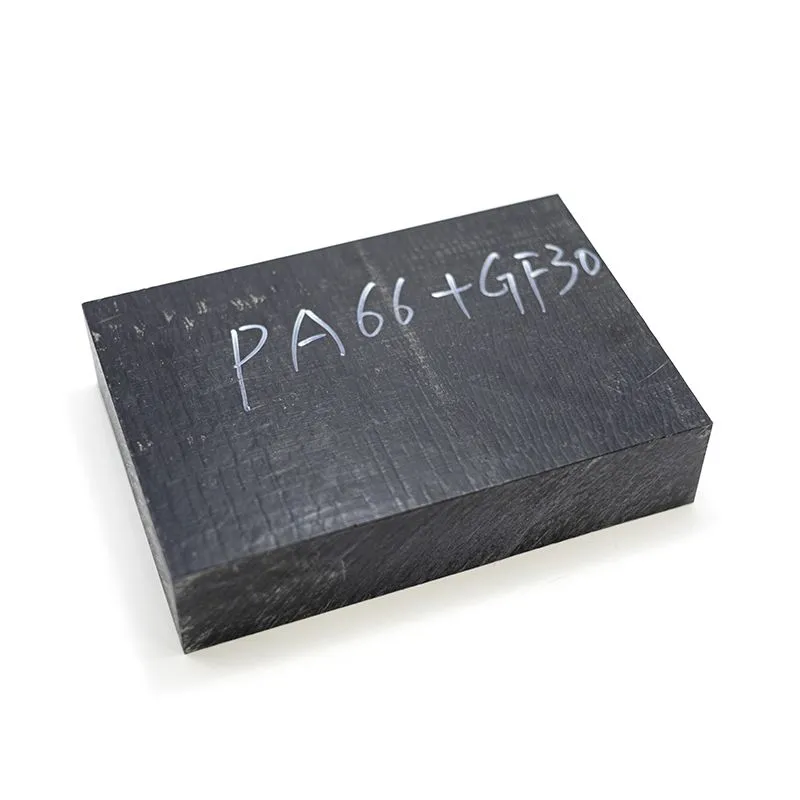

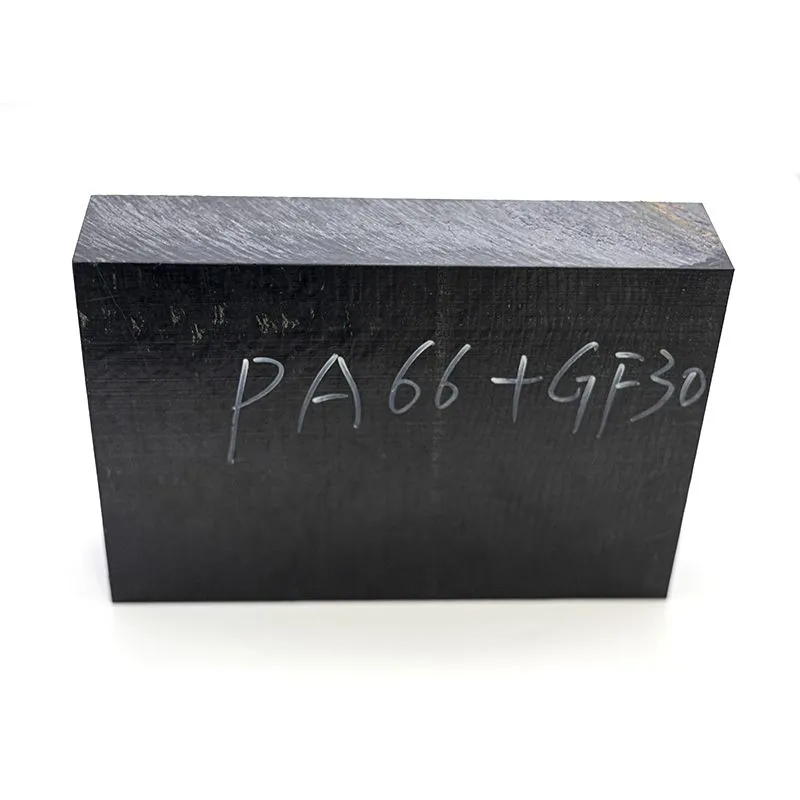

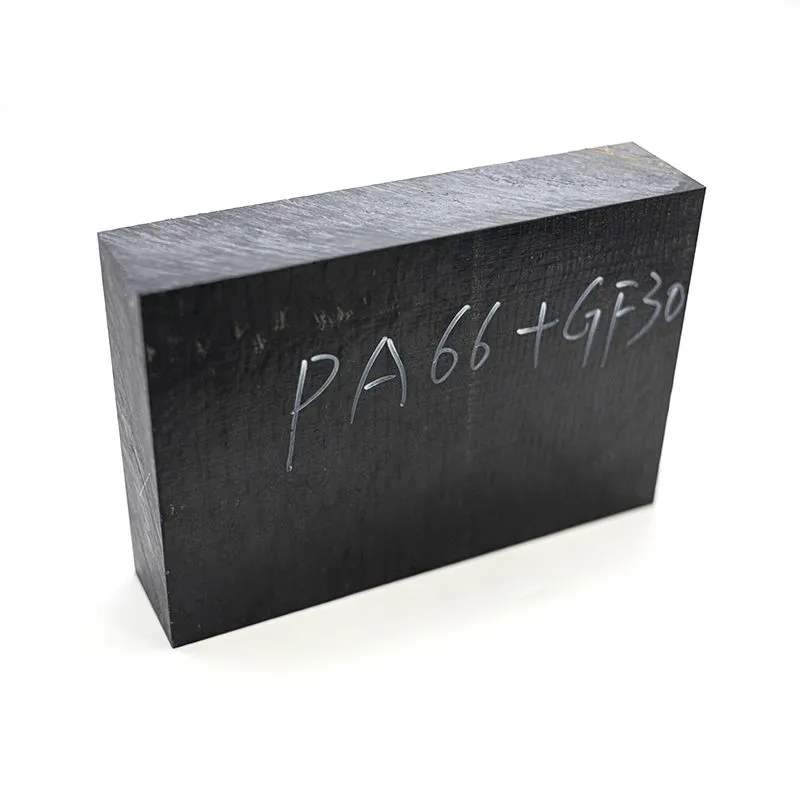

Modified Material PA66+GF Sheet Rod Tube Extrusion Plastic Sheet
USD $300 - $1000
/ Kilogram
1 Kilogram(Min.Order)
- 100000 Kilogram / Kilograms per Month
- NINGBO
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customize Nylon Gears Injection Molding High Precision Plastic Gear
-
Custom Color Plastic Spur Gear Customized Self Lubricating Plastic Nylon Gear
-
Custom Plastic Accessories Gears Plastic Helical Gears
-
Three Chamber Diaphragm Pump Diaphragm Boost Pump Membrane Water Purifier RO Pump Valve Parts
-
Modified Plastic Material PPS GF40 Xytron G4080hre Sheet for Hydrogen Fuel Cell Stack
-
PPS GF40 Xytron G4080hre Sheet/Plate/Board for Hydrogen Fuel Cell Stack
Product Details
| Brand Name: | MBH | Place of Origin: | China | Material: | Other, PPS+GF40 |
| Size: | as Per Customer′s Request | Thickness: | as Per Customer′s Request |
Product Description
| Base Polymer | Polyamide 66 |
| Filler/Additive System | GF30 |
| Special Features | improved sliding / wear |
| Market Segment | Automotive,Machinery |
| Application Area | injection moulded parts |
| Typical Applications | functional components,bearings and sliding elements |
| Mechanical properties | Test Method(ISO/IEC) | Unit | Numeric |
| Tensile strength at break | DIN EN ISO 527 | Mpa | 160/140 |
| Elongation at break | DIN EN ISO 527 | % | 3/5 |
| Tensile modulus of elasticity | DIN EN ISO 527 | Mpa | 8000/7500 |
| Hardness | ISO 2039/1 | - | 175 |
| Impact strength | DIN EN ISO 179 | KJ/ | 40 |
| Thermal properties | Test Method(ISO/IEC) | Unit | Numeric |
| Glass transition temperature | DIN 53 765 | ºC | 72/5 |
| Heat distortion temperature | DIN 53 765 | ºC | 250 |
| Other properties | Test Method(ISO/IEC) | Unit | Numeric |
| Density | DIN 53 479 | g/cm³ | 1.35 |
| Material | Brand | Size (Rod) | Services | Application |
| PA66+GF30 | MBH | T 5 10 20 30 35 40 50 60 70 80 90 100 or customized | sheet/rod/profile extrusion and machining | sliding/wear/bearing area |
Ningbo MBH, Founded in 2012, with its headquarters in Stuttgart, Germany, is a supplier of special engineering plastic application solutions in Ningbo, including all kinds of customized plastic extrusion and parts CNC machining.
we have for example extruded PEEK, PFA, PEI, PVDF, PCTFE, POM etc, or we could help modify the materials as your requested. our production and processing department has accumulated years of experience, providing comprehensive product design, processing, installation, and usage consultation to global customers.
Material Including:
High-Temperature resistance Material:
PBI,PEEK,PI,PAI,PEI,PPSU,PES,PSU,PPS,LCP etc.
Engineer Plastic:
POM,PA,PPA,UPE,POK,PPO etc.
All series of Fluoropolymer Thermoplastic:
PTFE,PVDF,PFA,ECFTE,PCTFE,ETFE,FEP etc.
Elastomeric Material:
TPU (moulding concreted), TPU(thermoplasticity), TPEE etc.
Other specific special functional Material:
TPX,COP,COC etc.
Other customizable modified Material by filling aramid fiber, carbon fiber, carbon nano-tube, PBO, molybdenum disulfide, PTFE, mineral, glass fiber, ceramic, boron nitride, silicon nitride etc.
High-Temperature resistance Material:
PBI,PEEK,PI,PAI,PEI,PPSU,PES,PSU,PPS,LCP etc.
Engineer Plastic:
POM,PA,PPA,UPE,POK,PPO etc.
All series of Fluoropolymer Thermoplastic:
PTFE,PVDF,PFA,ECFTE,PCTFE,ETFE,FEP etc.
Elastomeric Material:
TPU (moulding concreted), TPU(thermoplasticity), TPEE etc.
Other specific special functional Material:
TPX,COP,COC etc.
Other customizable modified Material by filling aramid fiber, carbon fiber, carbon nano-tube, PBO, molybdenum disulfide, PTFE, mineral, glass fiber, ceramic, boron nitride, silicon nitride etc.
