Product Details
Brand Name: | bliiot | Place of Origin: | China | Model Number: | S272 |
Product Description

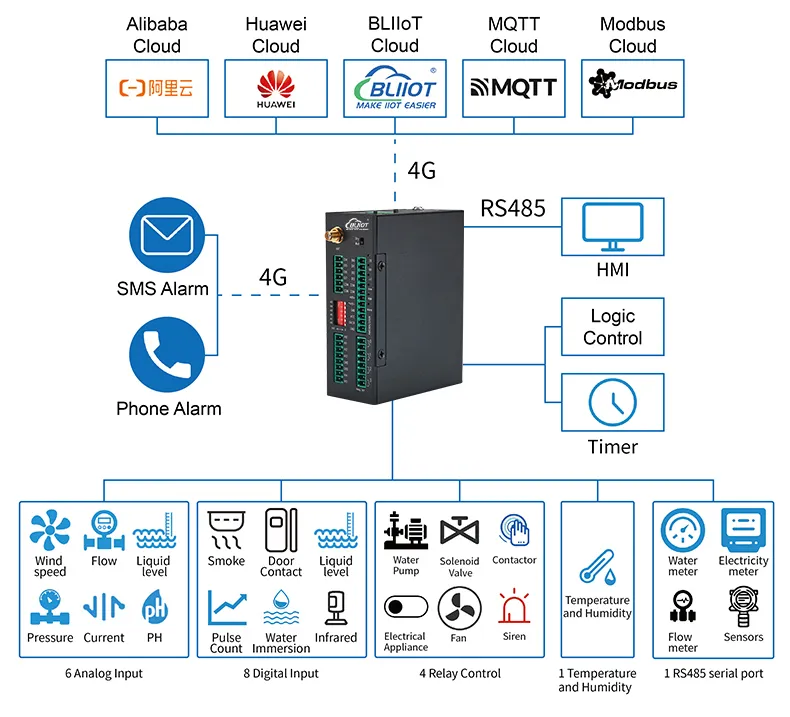

The Cellular IoT Modbus RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides 8 digital inputs, 6 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity, and RS485 serial port, supports 80/224/320 mapping registers via Modbus RTU protocol. It can monitoring and operates the I/O ports by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically.
The Cellular IoT Modbus RTU inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications, it can be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications according to the TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful if you need remote control onsite devices with low cost solution.
The Cellular IoT Modbus RTU is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a remote switch, remote I/O, remote smart PLC, timer switches.
The Cellular IoT Modbus RTU can be used as remote access control for BTS monitoring, the authorized users can open the gate or turn on the machine with a free charge call at specified time, this is useful for daily maintenance to save the time of traditional authorized.
The Cellular IoT Modbus RTU supports transparent data transmission and performs as Modbus Slave over GPRS/3G/4G network and RS485 serial port. Moreover, the Cellular IoT Modbus RTU can be used as Modbus RTU Master to reading smart meters, I/O modules, PLC, and converts to SMS alert once triggered the threshold value, or transmit data to remote server over GPRS/3G/4G network.
Typically applications:
BTS Monitoring, Security Alarm System applications, Supervision and monitoring alarm systems, Automatic monitoring system, Vending Machines security protection, Pumping Stations, Tanks, Oil or Water levels, Buildings and Real Estate, Weather Stations, River Monitoring and Flood Control, Oil and gas pipelines, Corrosion protection, Temperatures, water leakage applications, Wellheads, boat, vehicle, Energy saving, street lights control system, Valve controls, Transformer stations, Unmanned machine rooms, Control room application, Automation System, M2M, Access Control System, etc.
Item | Reference Scope |
DC Power supply | Standard adapter: DC 12V/2A Range 9-36VDC |
Power consumption | Standby:12V/50mA; Working Max.: 12V/150mA |
GSM Frequency | 850/900/1800/1900Mhz |
3G/4G | Optional: WCDMA/TDD-LTE/FDD-LTE |
TCP/IP stack | TCP,UDP |
SIM interface | Supporting 3V and 1.8V SIM Card |
External antenna | SMA Antenna interface, 50 Ohm, Gain: 3dB |
Serial Interfaces | 1 USB Port |
Protocols | SMS, GPRS UDP,TCP, MQTT,Modbus RTU over TCP and King Pigeon RTU protocol. |
RS485 | 1 RS485, Support Transparent transmission and Modbus RTU Slave, Modbus RTU Master. |
Digital Inputs | 8 Digital input, NC/NO type, one of it can be used as Pulse Counters; |
Analog Inputs | 6 Analog Inputs. 12 bit resolution, 0-5V or 0-20mA or 4-20mA; |
Temp.&Hum Inputs | Temperature range: -40°C to +80°C, Humidity Range: 0~100%RH; |
Relay Outputs | 4, Rated: 5A/30VDC,5A/250VAC |
Power Outputs | 2 Port, for external device; |
Extend I/O Tags/Mapping Registers | Max.128 |
Memory Capacity | Internal 8G SD card inside, can save the data for 100000events. |
Backup Battery | 3.7V 900mAH |
Temperature range | -20-+70 °C |
Humidity range | Relative humidity 95% (condensation free) |
Exterior dimension | 195mm*88mm*30mm |
Net Weight | 350g |
