Product Details
Brand Name: | BLIIoT | Place of Origin: | China | Model Number: | BL304 |
Product Description
The BL304 series Embedded ARM Computer use NXP i.MX8M Mini Quad-core 64-bit processor, running speed up to 1.8GHz, with advanced ARM 4-core Cortex-A53 architecture, 2GB DDR4 RAM, support one general-purpose Cortex®-M4 400MHz core processor, 8G eMMC.

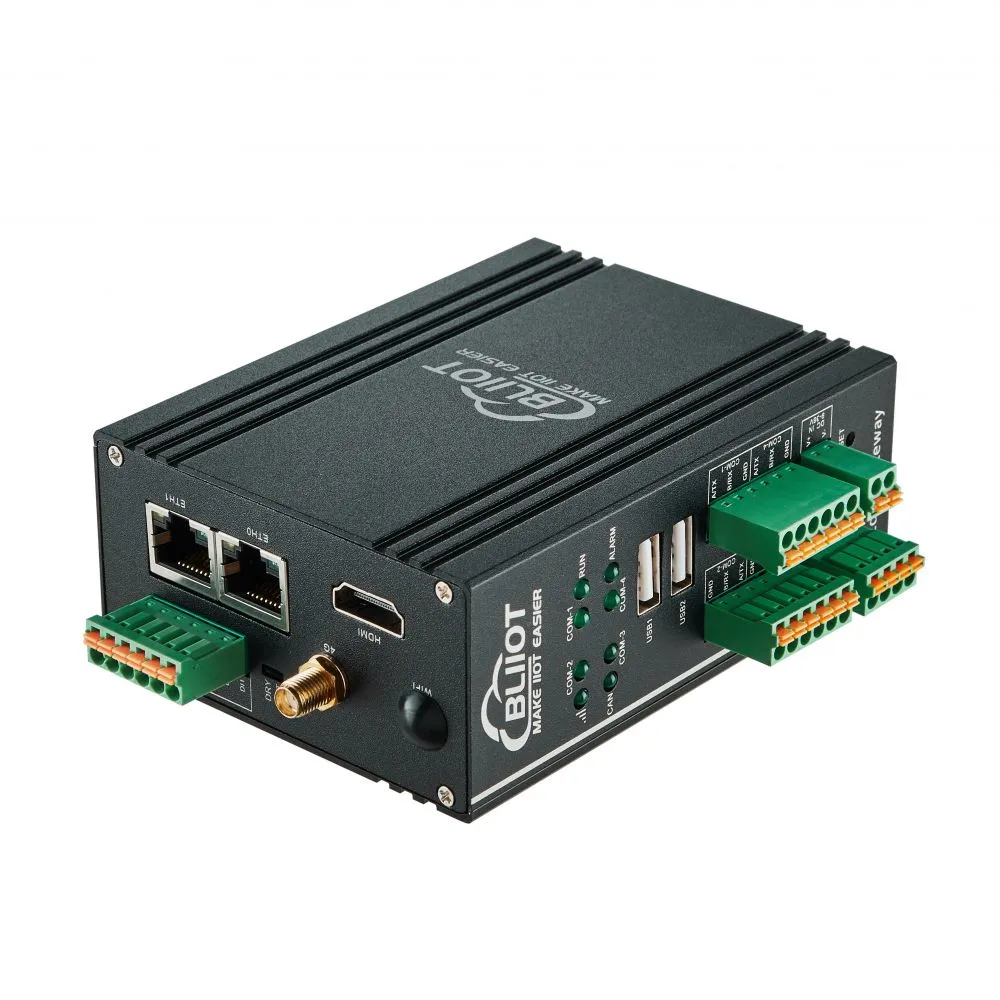

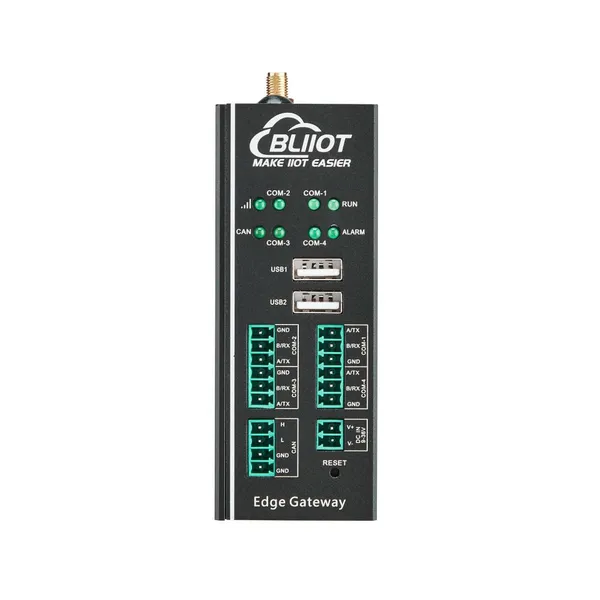

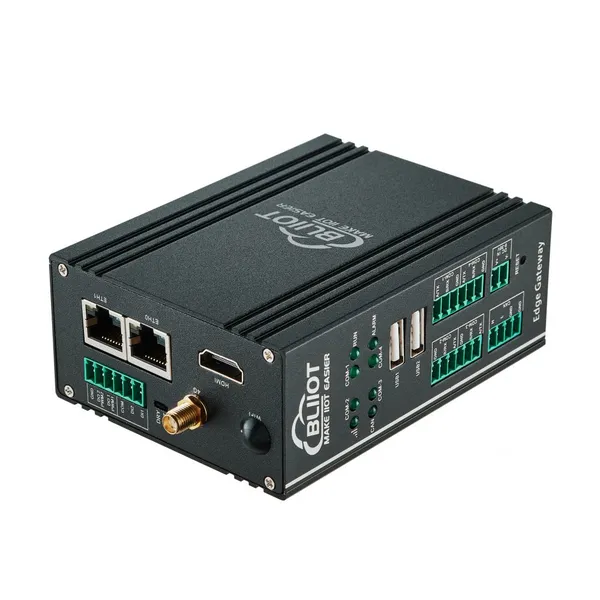

BL304 comes with 4 RS485 or RS232, 1 CAN port, 2 Ethernet ports, 2 DI, 2 PWM output and 2 USB port, 1 power input/output port, 1 HDMI, 1 Mini PCIe expansion slot for a wireless module.
The computer supports LINUX, Ubuntu, Debian, Node-Red, QT, Python, C++; MySQL, InfluxDB, SQLite, Docker, Ignition, and Eclipse. This tiny embedded computer is widely applicable to a variety of industrial solutions.
NXP i.MX8M Mini processor, ARM Cortex-A53 architecture
Comes with Ethernet ports, RS485 or RS232 serial ports
1 Mini PCIe expansion slot for 4G/WiFi module
Supports LINUX, Ubuntu, Debian; Node-Red, QT, Python, C++; MySQL, InfluxDB, SQLite; Docker, Ignition, Eclipse.
Automatic frequency reduction or restart when the chip is overheated
Chip frequency can be adjusted manually
Multiple sleep modes, with timing wake-up function
IP30 protection; metal shell and system are safely isolated; DIN rail installation
110mmx43mmx83mm(LxWxH) tiny embedded computer
Model BL304 BL304T Processor iMX8M iMX8M CPU Frequency MAX 1.8GHz MAX 1.6GHz RAM 2G DDR4 2G DDR4 Flash 8G eMMC 8G eMMC ETH 1x100M, 1x1000M 1x100M, 1x1000M USB 2 2 RS232/RS485 4 4 CAN 1 1 SD slot 1 1 MINI-PCIe 1 1 4G(GPS)/WIFI √ √ SIM slot 2 2 HDMI 1 1 DI 2 2 DO 2 2 Temperature 0ºC~70ºC -40ºC~70ºC
Item | Parameter | Description |
System | Processor | i.MX8M Mini Quad-Core 64-bit, 1.8HGz |
RAM | 2GB DDR4 | |
Flash | 8GeMMC | |
Power | Input Voltage | DC 9~36V |
Power Consumption | Normal: 360mA@12V, MAX 550mA@12V | |
Wiring | Anti- Inverse Connection Protection | |
Ethernet Port | Interface Spec | 2 x RJ45, 1x10/100Mbps, 1x10/100/1000Mbps, adaptive MDI/MDIX |
Protection | ESD ±16kV (contact), ±18kV (air), EFT 40A (5/50ns), Lightening 6A (8/20µs) | |
Serial Port | QTY | 4 x RS485/ RS232 |
Baud Rate | 300bps-115200bps | |
Data Bit | 7, 8 | |
Parity Bit | None, Even, Odd | |
Stop Bit | 1, 2 | |
Protection | ESD ±8kV (contact), ±15kV (air) EFT 2KV, 40A (5/50ns) | |
CAN Port | QTY | 1 |
MAX Speed | 1Mbps | |
SIM Card | QTY | 2 SIM Card Slot |
Spec | Drawer type slot, support 1.8V/3V SIM/UIM card (NANO) | |
Protection | Built-in 15KV ESD Protection | |
Digital Input | QTY | 2 |
Input Type | Both Dry contact and Wet contact(NPN) | |
Dry Contact | Close: Short circuit Open: Open circuit | |
Wet Contact | Logic 0: 0-2.5VDC Logic 1: 10-30VDC | |
Isolation protection | 2KVrms | |
Digital Output | QTY | 2 |
Output Type | PWM | |
USB Port | QTY | 1xmicro USB, 2x USB2.0 |
Protection | Over Current Protection | |
SD Card Slot | QTY | 1 |
Spec | Supports SD, SDHC and SDXC (UHS-I) cards | |
HDMI | QTY | 1 |
Antenna | QTY | 1x Cellular antenna, 1xWiFi Antenna |
Type | SMA Hole Type | |
4G Module (Optional) | L-E version | GSM/EDGE:900,1800MHz WCDMA:B1,B5,B8 FDD-LTE:B1,B3,B5,B7,B8,B20 TDD-LTE:B38,B40,B41 |
L-CE version | GSM/EDGE:900,1800MHz WCDMA:B1,B8 TD-SCDMA:B34,B39 FDD-LTE:B1,B3,B8 TDD-LTE:B38,B39,B40,B41 | |
L-A version | WCDMA:B2,B4,B5 FDD-LTE:B2,B4,B12 | |
L-AU version | GSM/EDGE:850,900,1800MHz WCDMA:B1,B2,B5,B8 FDD-LTE:B1,B3,B4,B5,B7,B8,B28 TDD-LTE:B40 | |
L-AF version | WCDMA:B2,B4,B5 FDD-LTE:B2,B4,B5,B12,B13,B14,B66,B71 | |
CAT-1 version | GSM:900,1800 FDD-LTE:B1,B3,B5,B8 TDD-LTE:B34,B38,B39,B40,B41 | |
WiFi(Optional) | Interface | PCIe |
Protocol | IEEE 802.11b/g/n | |
Mode | STA, AP | |
Frequency | 2.4GHz | |
Channel | Ch1 ~ Ch13 | |
Security | Open, WPA, WPA2 | |
Encryption | AES, TKIP, TKIPAES | |
Connection | 8(Max) | |
Speed Rate | 150Mbps(Max) | |
Transmission distance | Outdoor/Open area, up to 20 meters | |
SSID | Support | |
Indicator | QTY | LEDx8 |
Environment | Working | 0~70ºC, 10~90% RH |
Others | Case | Metal Case |
Size | 110mmx43mmx83mm(LxWxH) | |
Protection | IP30 | |
Mounting | DIN-Rail Mounting |
