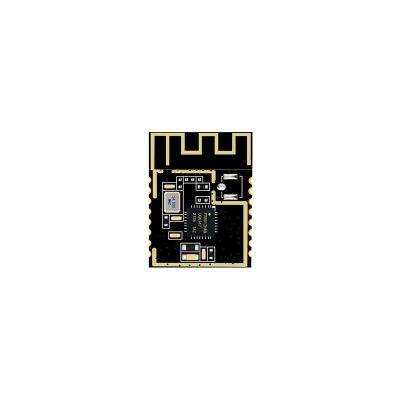

Cost-Effective High-Speed master-slave supported Bluetooth Module TS-M1035

The TS-M1035 is a high-speed BLE 5.1 Bluetooth module that supports serial port transparent transmission, master-slave mode, and AT commands. Users can easily modify parameters such as serial port baud rates and device names using the provided AT commands, offering flexible and straightforward operation. This module boasts excellent stability, ultra-low cost, and high reception sensitivity. It is available with either a built-in or an external antenna option, catering to various project needs.

Model No.: TS-M1035

Features

Bluetooth Version: BLE 5.1
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+10Bm
Receive Sensitivity: -95dBm
Air Rate: 250Kbps/1Mbps/2Mbps
Antenna: PCB Onboard / IPEX Antenna
Advise Range: 80m

Memory: 48KB RAM
Size: 20*15*1.5mm
Pin/GPIO: 16/12
Power Supply: 2.5~4.3V
Operating Temperature: -40℃~+105℃
Peripheral Interface: UART/SPI/I2C/ADC
Serial Transparent Transmission Rate: BLE 20KB/s

Applications

Smart home
Location tracking
Bluetooth electronic scale
Intelligent educational equipment
Vehicle testing equipment
Measurement and monitoring system
Bluetooth wireless data transmission
Industrial sensors and controls
Medical equipment monitoring and wireless control
