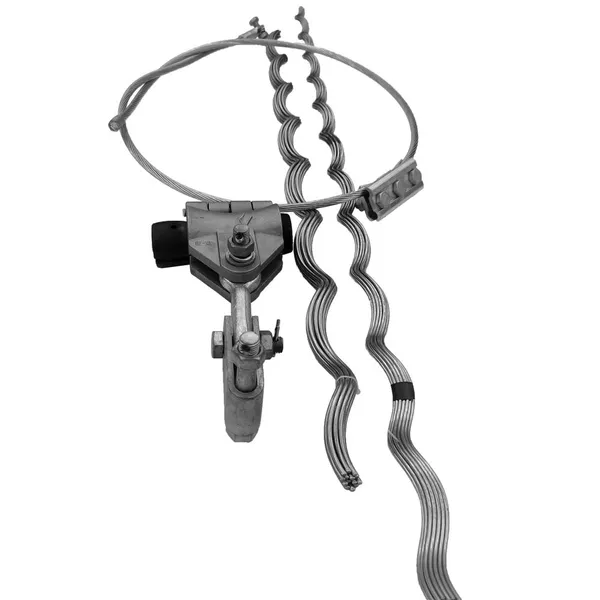

Large span suspension fixture for OPGW optical cable

Product Description

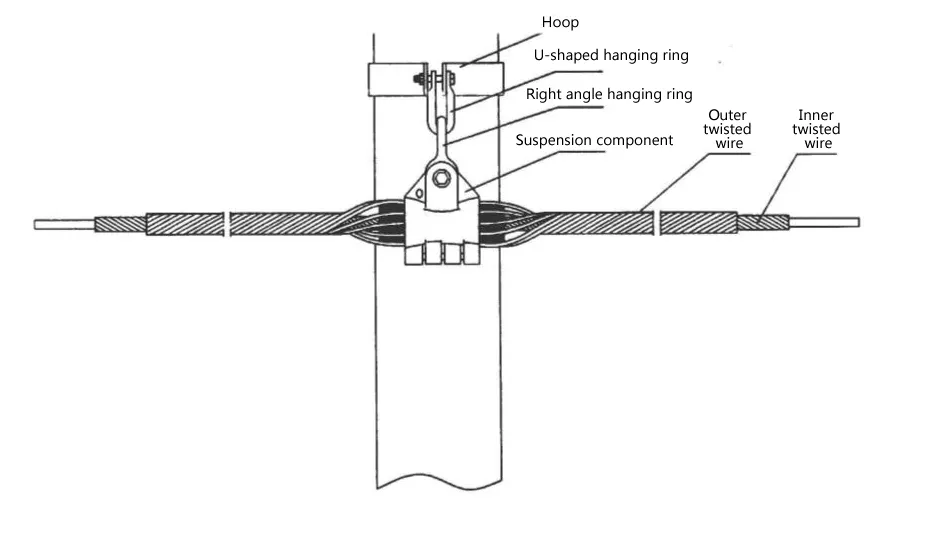

Internal twisted wire, external twisted wire, U-shaped hanging ring, right angle hanging ring, suspension sleeve, grounding wire, etc.



Characteristic



a. The suspension clamp has a large contact area with the OPGW optical cable, with uniform stress distribution and no stress concentration points. At the same time, it enhances the stiffness of the optical cable at the hanging point, providing better protection.

b. Has good dynamic stress tolerance and can provide sufficient grip strength (18% UTS) to protect OPGW optical cables from safe operation under unbalanced load conditions.

c. This structure is equipped with flexible rubber clamps to enhance self damping and reduce wear.

d. End rounding treatment has increased the corona initiation voltage.

e. The high-quality aluminum alloy material improves the mechanical and anti-corrosion properties of the wire clamp, greatly extending its service life.



Ordering Notice



a. Select appropriate suspension clamps based on parameters such as the outer diameter and breaking force of OPGW optical cables.

b. The quantity configuration is: 1 set/straight rod.

c. The direction of rotation of the twisted wire inside the clamp is opposite to that of the outer layer of OPGW. The standard configuration is based on the right rotation of the outer layer of OPGW. If the outer layer of OPGW is twisted to the left, it should be specified in the purchase contract.

d. Select appropriate connecting fittings (such as UJ screws, U-shaped hanging rings, UB hanging plates, etc.) based on the hanging points on the tower.



OPGW optical cable with suspension clamp selection table







The company's standard products are suitable for right-handed OPGW optical cables, and customers can also order left-handed products. If you have any needs, please consult the company.
