Water spray test spray head IEC 62368-1:2023 Figure Y.3
- 1000 Piece / Pieces per Month
- SHENZHEN
- T/T
- 2 days
-
Aluminium Vessel for Drop Test of IEC 60335-2-3 21.102
-
IEC 62368-1 clause 9.6.2 Wireless Charging Foreign Object Test Kit
-
JSD-K02 Test probe ABCD-Power supply Kit of IEC 61032:1997
-
Test finger ISO 20957-1:2013 Figure 1
-
Test probe A IEC 61032-Probe A-Figure 1 JUSDATEST
-
IEC61032-Probe B-Figure 2 Test probe B IP2X test
Product Details
| Brand Name: | JUSDATEST | Place of Origin: | China | Model Number: | JSD-IEC62368-1-FIGY.3 |
Product Description

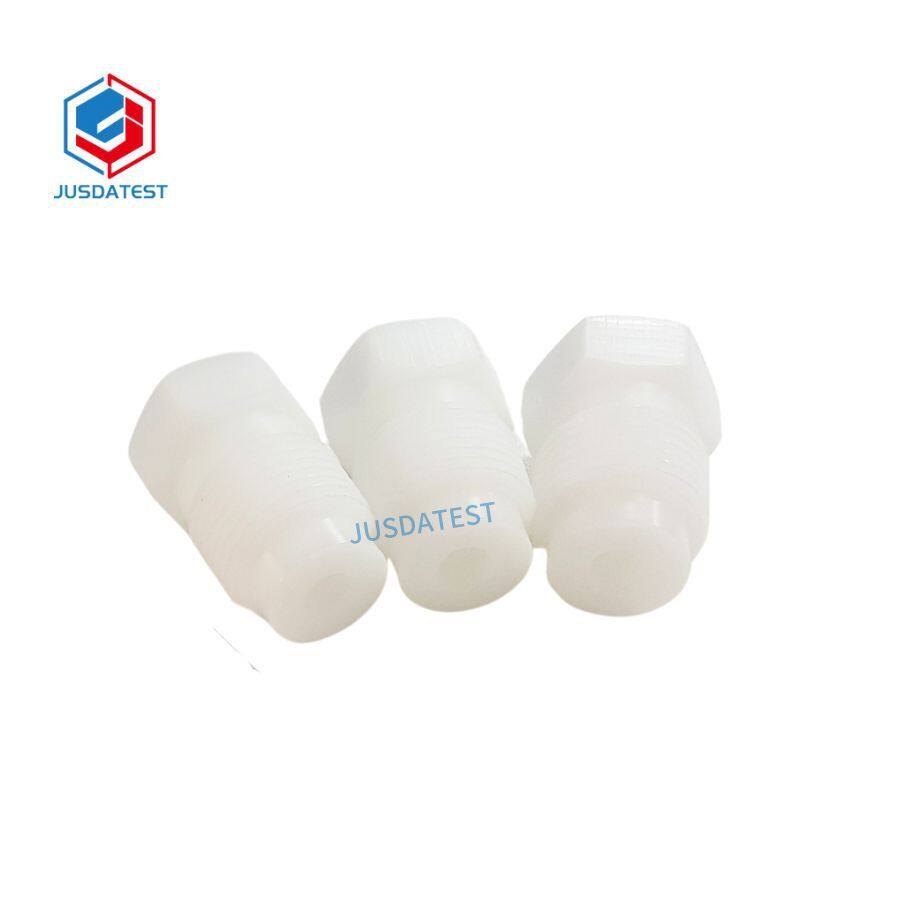

Water spray test spray head
According to Figure Y.3 in Appendix Y5.3 of standard IEC62368-1:2023.
Y.5.3 Water spray test

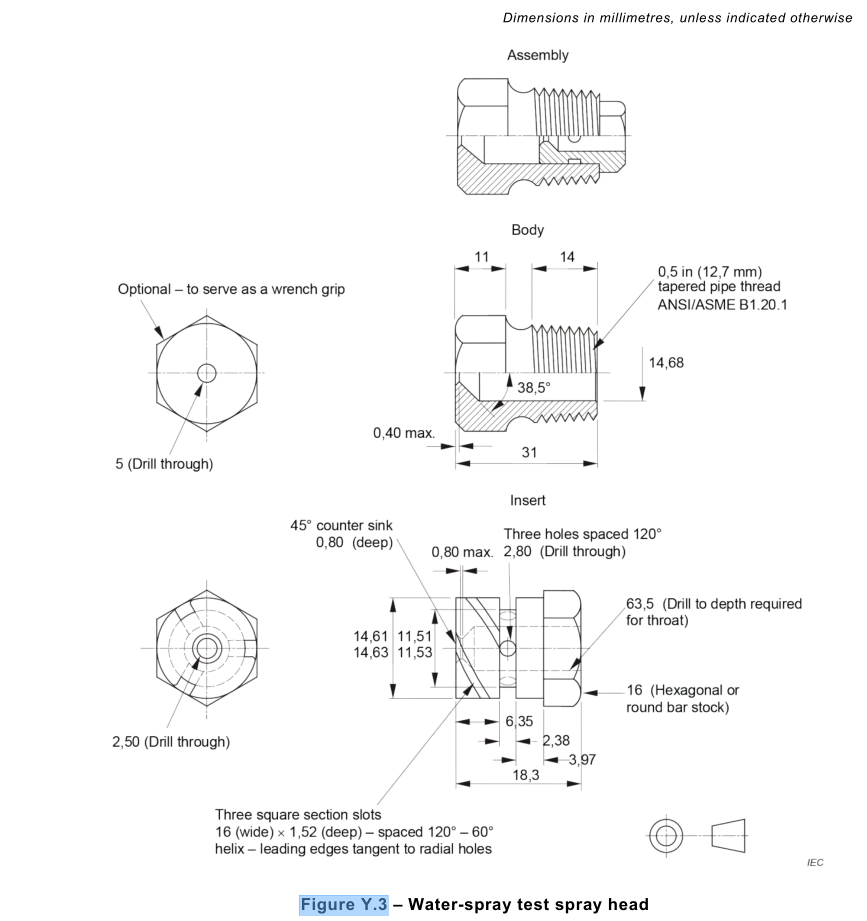

The water-spray test apparatus, using fresh water, is to consist of three spray heads mounted in a water supply pipe rack as shown in Figure Y.2. Spray heads are to be constructed in accordance with the details shown in Figure Y.3. The outdoor enclosure is to be positioned in the focal area of the spray heads so that the greatest quantity of water is likely to enter the outdoor enclosure. The water pressure is to be maintained at 34,5 kPa at each spray head.
The outdoor enclosure is to be exposed to the water spray for 1 h.
