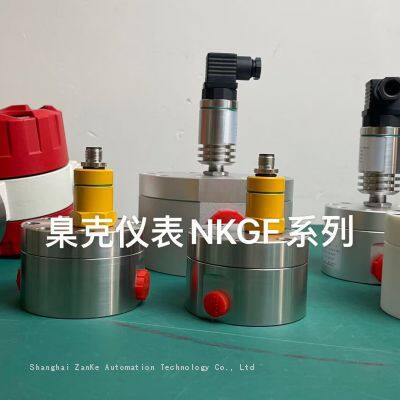

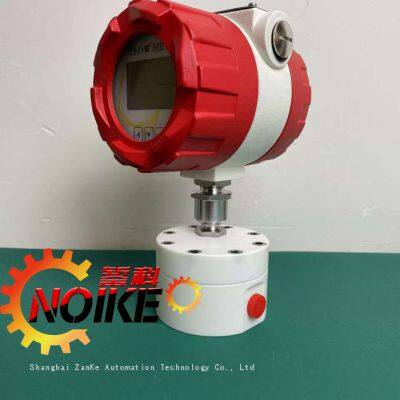

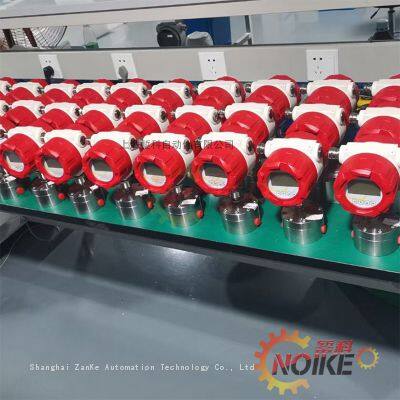

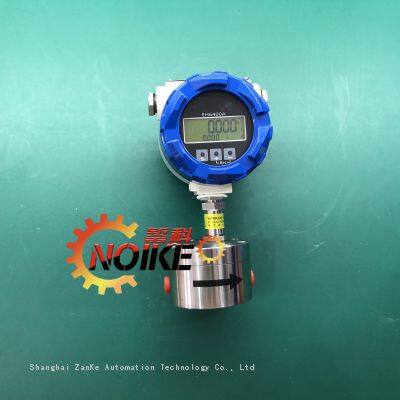

NOIKE Oval Gear Flowmeter NKGF

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shanghai
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

臬克

Place of Origin:

China

Model Number:

NKGF

Product Description

Product Overview:

The gear flow sensor has built-in double gears to operate, and calculates the volume of the medium through the high-precision gear volume to achieve the measurement of micro fluid media. It is a new type of volumetric flow sensor, used for precise continuous or discontinuous measurement of the flow or instantaneous flow of liquid in the pipeline.

Technical Parameters:

△Measuring range: Measuring range: 0.005～330L/min (support customized range)

△Output signal: pulse, 4-20mA, PNP/NPN

△Measurement accuracy: 0.5%F.S

△Repeatability: 0.1%F.S

△Power supply: 16～30VDC

△ Pressure resistance: aluminum (150bar) stainless steel (400bar) PP (pressure resistance 50bar)

△Material: Shell: aluminum, stainless steel, PP

△Display: stainless steel

Technical Parameters:

Following are the benefits or advantages of Oval Gear Flowmeter:

➨It delivers higher measurement accuracy (about 0.25%).

➨It is suitable for high viscosity media.

➨It operates in both the directions viz. forward and reverse.

➨Inlet and outlet sections are not required as there is no flow profile.

➨It does not require any external power supply.

➨It can be used for high temperatures (upto 300oC) and pressures (upto 10 MPa).

➨Wide range of materials are used for its construction.

Applications:

*Resin and glue measurement

*Hydraulic oil, lubricating oil, grease measurement, fuel oil measurement, ink, asphalt measurement

*Liquid nitrogen, freezing liquid, solvent measurement edible oil, fish oil and food filling measurement

*Chemical and anti-corrosion requirements fluid measurement fluid quantitative control system
