Hnj-Dr-28e Intelligent Rapid Freeze-Thaw Test Chamber

Standard Exporting Package

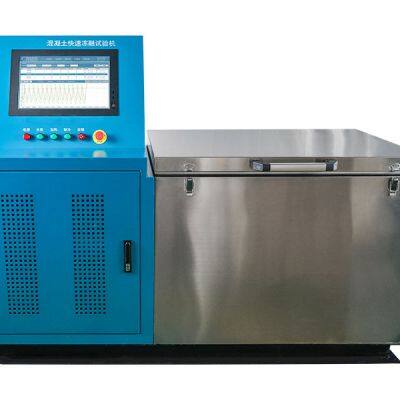

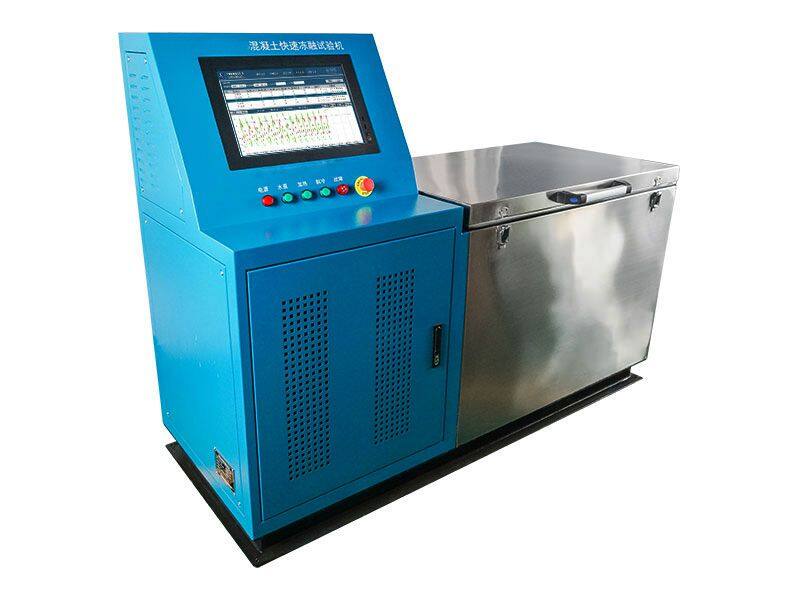

 HNJ-DR-28E Intelligent Rapid Freeze-Thaw Test Chamber

IntroductionThis equipment is suitable for determining the frost resistance of concrete specimens under conditions of freezing and thawing in water, represented by the number of rapid freeze-thaw cycles they can withstand. The HNJ-DR-28E Rapid Freeze-Thaw Test Chamber for Concrete has been confirmed its high reliability by long-term user experience. It provides an important quality assurance for the testing of long-term performance and durability of concrete, meeting the needs of research institutes, colleges and universities, design, construction, quality inspection and other departments in related industries for rapid freeze-thaw testing of concrete.Operating Procedures1. Prepare prismatic specimens of (100×100×400) mm, with a central specimen embedded with a center temperature sensor.
2. Record the specimen number and measure the initial dynamic modulus and mass of the specimen.
3. Place the specimen rack inside the test chamber and fill the chamber with 125L of antifreeze liquid.
4. Place the specimen into a rubber bucket, and then place the rubber bucket on the specimen rack inside the chamber, with the central specimen positioned in the middle of the rack.
5. Pour clear water into the rubber bucket, ensuring the liquid level is at least 5mm above the specimen, and close the chamber lid.
6. Power on the equipment, open the software, and click the "Manual Test" button to start the water pump test.
7. Unscrew the air vent of the water pump, wait for the antifreeze liquid to overflow, and after checking for no air bubbles, tighten the screw.
8. After running for 3 minutes, click the "Stop Water Pump Test" button to stop the pump, filling the pipeline with antifreeze liquid.
9. Create a new test, input the test information, and start the test, performing water pump venting and cleaning the pipeline filter screen every month.
10. After reaching the specified number of cycles, measure the dynamic modulus and mass of the specimen and record the results.
11. At the end of the test, remove the specimens and the rubber bucket, store the antifreeze liquid in a sealed container for dry storage, and clean the chamber and pipelines.Technical SpecificationNumber of Specimens:28 specimens
Temperature Calibration Accuracy:0.1ºC
Central Temperature Control Range:Minimum temperature (-18±2)ºC, Maximum temperature (5±2)ºC
Refrigeration Compressor:Imported
Temperature Control Precision:±0.5ºC
Data Presentation:Real-time plotting of test curves, quick viewing of data lists
Compressor Power:5P
Touch Screen Computer:19-inch touch screen
Material:304 stainless steel
Insulation Layer:80mm polyurethane foam insulation
Electrical Components:Schneider, Omron, Taiwan Mingwei
Input Voltage:380V±10%, 50Hz
Heating Power:8kW
Weight:440kg
External Dimensions:Indoor unit 1870×845×1505 (mm), Outdoor unit 1420×550×1315 (mm)
