BS03 Gas Alarm Detector To Harmful Gas

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

China

Product Description

Fixed Gas Detector Description

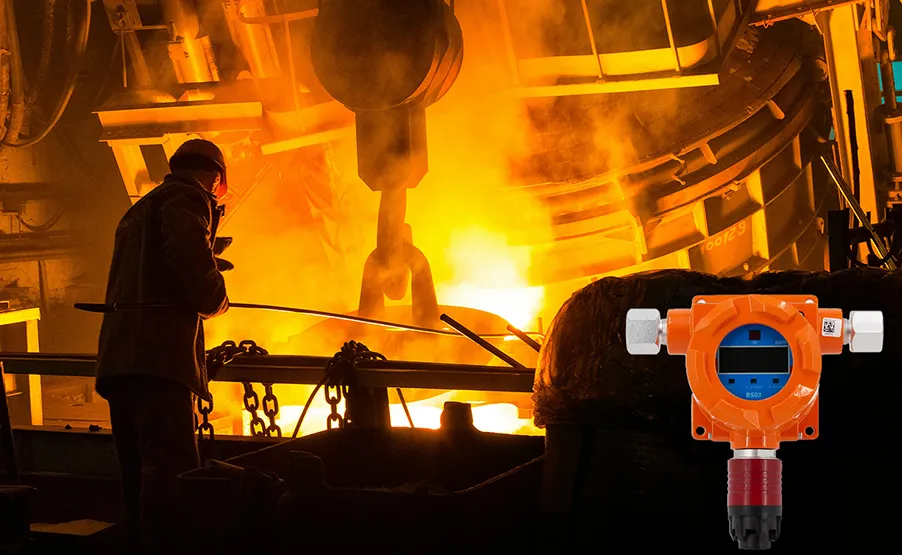

BS03 is a fixed gas detector installed in a place where potential gas hazard exists to measure oxygen, toxic gas and combustible gas. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LED screen and LED lights and can be connected to the control panel with a standard 4-20mA analog output.

It is applicable to explosion-proof places: Steelworks, Petrochemical plants, Shipyards, Watertreatment plants, Mines, Power plants, Food industry etc.

Fixed Gas Detector Key Features

Interchangeable smart sensor module
Intrinsically safe
Built-in sampling pump (optional)
Visual, audible and vibration alarm
Adjustable alarm levels and span calibration values
Password management
Self-test after power on
Self-diagnostic and self-correction function
Real-time clock

Fixed Gas Detector Specifications

Measuring gas	Combustible	Catalytic sensor/ NDlR sensor
	Toxic gas & O₂	Electrochemical sensor
	CO₂ gas	NDlR sensor
	VOCs	PID sensor
Measuring range	Refer to our gas list
Measuring accuracy	+5%F.S.
Sensor life	Catalytic sensor: 3 years Electrochemical: 2 years (1 year for O₂ sensor) NDlR sensor: 5 years PiD sensor: 0.6 to 1 year
Measuring type	Diffuse naturally
Signal output	4-20mA
Alarm output signal	2 programmable relays
Cable / distance	1.5 MM² , 3wire, shielded, 1000m (maximum)
Conduit connection	G3/4
Response time	Catalytic sensor: T90≤30s Electrochemical: T90≤60s NDlR sensor: T90≤10s PlD sensor: T90≤10s
Mounting type	Wall mounted
Working temperature	Toxic gas: -20°C~50°C Combustible gas: -40°C~70°C
Working humidity	≤95%RH(no condensation)
Operation voltage	DC24V+25%
Consumption	<2W
Ingress Protection	IP65
Housing material	Chamber: Aluminum alloy Sensor cover: Stainless steel
Dimension and weight	162mm×208mm×103.5mm， about 2.1kg
Approval	Ex II 2G Ex db IIC T6 Gb
