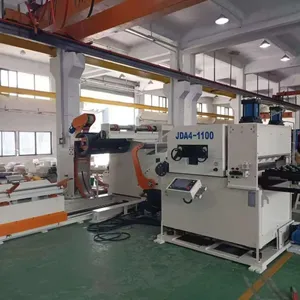

Automatic high-precision three-in-one High thickness straightener feeder Manufacturer
USD $2000 - $30000
/ Set
1 Set(Min.Order)
- 15 Unit / Units per Month
- SHENZHEN
- T/T Cash
- 7 days
You May Like
-
Full automatic high precision straightening machine Extra thin steel straightener machine
-
Precision type decoiler with straightener two-in-one High precision Variable straightener
-
Punching steel bar decoiler and straightening two-in-one equipment two-in-one straightener machine price
-
Automatic high-precision three-in-one High thickness straightener feeder Punch three-in-one high speed feeder machine
Product Details
| Brand Name: | Punch steel Bar three-in-one uncoiler straightener feeder machine | Place of Origin: | China | Model Number: | JDA4-600 |
| Certification: | ISO 9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
| Weight: | 4800KG | Dimension(L*W*H): | 3.8*2.15*1.8M | Voltage: | 220V&380V |
| Condition: | New | Power(W): | 7.5KW | CNC or Not: | Normal |
| Power Source: | Mechanical |
Product Description
| Model | JDA4-600 | JDA4-800 | JDA4-1000 | JDA4-1300 |
| Width of Material (mm) | 70-600 | 70-800 | 70-1000 | 70-1300 |
| Thickness of Material (mm) | 0.6-6.0mm | |||
| Max. Coil Weight (Kg) | 5000 | 5000 | 7000 | 10000 |
| Coil I.D.(mm) | 508 | 508 | 508 | 508 |
| Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 |
| Max. Speed (m/min) | 16~24m/Min | 16~24m/Min | 16~24m/Min | 16~24m/Min |
| Feed Accuracy | ±0.1/100mm | |||
| Maximum feeding length(mm) | ~500 | |||
| Work Rollers（Pcs） | Up 6/ Down 5 | |||
| Feed Line Height | Accoring to customers’ Requirements | |||
| Power Supply | 220V&380V | |||
| Uncoil Expansion | Hydraulic Expansion | |||
| Air pressure（Mpa） | 0.49 | 0.49 | 0.49 | 0.49 |
| Uncoil Motor (Kw) | 2.2 | 2.2 | 3.7 | 7.5 |
| control system | PLC+touch Screen | |||
| Material:Medium and high strength steel plate | ||||
| Material Thickness：1.0～6.0 mm Note: Please refer to the correction ability table for thickness x width | ||||
| Material Width：100 ～ 1800 mm | ||||
| Yield Strength ：≤1370 N/mm2 | ||||
| Coil Inner Diameter:Φ450~φ530mm/φ480~φ530mm/φ580~φ630mm | ||||
| Coil Outside Diameter:max φ 1600 mm | ||||
| Coil Weight:3000~15000kg | ||||
| Standard Configuration: Photoelectric arc control system Feed outlet guide rack device Press arm device The feeding line height is adjusted by screw worm gear Dial indicator Arc control roller The rack contains air pressure disc brake device Rack variable frequency speed regulation Optional Configuration Feed line height electric adjustment device Hydraulic automatic loading trolley | ||||
