OEM Factory Excavator Earth Auger Drill Post Hole Digger

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Product Information

The spiral drill can replace the original drilling equipment in power pole drilling construction, tree planting, pit drilling, building pile driving drilling, and photovoltaic power generation drilling. Moreover, this equipment can achieve high efficiency, flexibility, safety, low cost, and multiple uses per machine. Using an excavator as a carrier, it can drill holes at any position within the diameter of the digging arm without moving the entire machine. It can drill vertically, at any angle, or horizontally, truly achieving efficient drilling and greatly reducing non drilling time.

Model	ZX-2000	ZX-2500	ZX-6000	ZX-20000	ZX-25000
Torque (Nm)	639-2190	830-2847	1685-6057	13043-19564	16503-24755
Oil pressure (Bar)	70-240	70-240	80-260	160-240	160-240
Oil flow (lpm)	25-57	27-65	40-115	80-170	80-170
Speed (rpm)	43-99	100-300	30-78	16-33	12-26
Height (mm)	585	700	780	1100	1130
Diameter (mm)	200	200	250	360	370
Weight (kg)	70	150	130	280	290
Tonnage (Ton)	1-2.5	1-3	4.5-6	13-20	15-22

Model	ZX-2000	ZX-2500	ZX-6000	ZX-20000	ZX-25000
Torque (Nm)	639-2190	830-2847	1685-6057	13043-19564	16503-24755
Oil pressure (Bar)	70-240	70-240	80-260	160-240	160-240
Oil flow (lpm)	25-57	27-65	40-115	80-170	80-170
Speed (rpm)	43-99	100-300	30-78	16-33	12-26
Height (mm)	585	700	780	1100	1130
Diameter (mm)	200	200	250	360	370
Weight (kg)	70	150	130	280	290
Tonnage (Ton)	1-2.5	1-3	4.5-6	13-20	15-22

Model	ZX-2000	ZX-2500	ZX-6000	ZX-20000	ZX-25000
Torque (Nm)	639-2190	830-2847	1685-6057	13043-19564	16503-24755
Oil pressure (Bar)	70-240	70-240	80-260	160-240	160-240
Oil flow (lpm)	25-57	27-65	40-115	80-170	80-170
Speed (rpm)	43-99	100-300	30-78	16-33	12-26
Height (mm)	585	700	780	1100	1130
Diameter (mm)	200	200	250	360	370
Weight (kg)	70	150	130	280	290
Tonnage (Ton)	1-2.5	1-3	4.5-6	13-20	15-22

Model	ZX-8000	ZX-12000	ZX-15000	ZX-30000	ZX-45000
Torque (Nm)	2717-8152	3281-10662	5024-15071	20510-35323	23561-45624
Oil pressure (Bar)	80-240	80-260	80-240	180-310	180-310
Oil flow (lpm)	70-150	70-150	80-170	80-225	80-225
Speed (rpm)	33-70	27-58	20-43	11-31	20-45
Height (mm)	1000	1040	1060	1150	1411
Diameter (mm)	270	330	350	370	442
Weight (kg)	180	230	270	300	442
Tonnage (Ton)	6-15	5-9	10-15	15-30	20-36

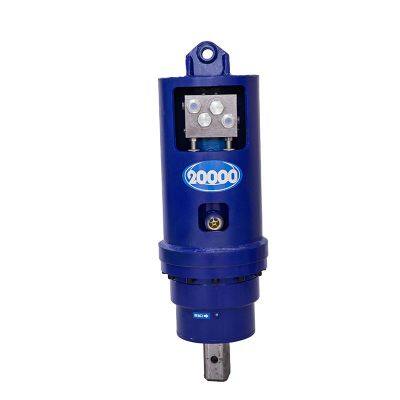

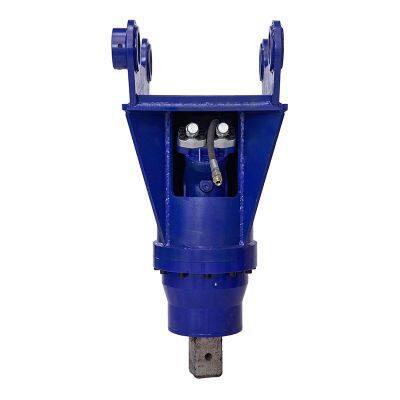

Product Show

Product Features

1.Strong drilling ability: can drilling under various geological conditions, including soil, rock, etc. 2.Efficient operation: improve the efficiency and speed of drilling with the power and flexibility of the excavator. 3.Adjustment: The length, diameter and angle of the auger can usually be adjusted according to the specific construction requirements. 4.Easy to install and remove: it can be quickly installed at the arm end of the excavator, and can be easily removed after use.

Product Details

The American hydraulic motor ensures strong power, and the two-stage planetary gearbox doubles efficiency, ensuring durability and reliabilit

Split type output shaft, allowing for easy replacement of drill rods of different lengths and diameters, making it easy to excavate various types of pits

The spacing between spiral blades is small, making mud removal more effective

The spacing between spiral blades is small, making mud removal more effective

Product Application

Widely used in scenarios such as steel sheet pile driving, photovoltaic pile driving, pit excavation, tree planting, drainage system drilling, pile foundation engineering drilling, etc

Packing & Delivery

Company Information

Shandong ZhongxXie Machinery Co., Ltd.

Shandong ZhongxXie Machinery Co., Ltd. was established in 2019 and is located in Shandong, China. It is a company that integrates research and development, production, international trade, e-commerce, network services, and logistics transportation.

Our current main products cover multiple categories such as excavators, bulldozers, drilling machinery, new energy photovoltaic pile drivers, rollers, loaders, cranes, forklifts, and tracked transport vehicles, providing you with excellent products and a good experience.

FAQ

Q: How is the quality of your products? A: Our machines are manufactured strictly in accordance with national and international standards, and we test each device before delivery to ensure the normal use of the product Q: How about the price? A: We are a manufacturer that integrates research and development, production, and after-sales service. We can offer you more favorable prices. Q: What should we do if there is a problem with the product? A: Our engineers will analyze the problem for you and find the best solution. Q: Do you provide OEM or ODM services? A: Yes, we offer customized services where you can provide the necessary information to meet the diverse needs of global clients with different budgets. Q: How to use this machine? A: We will send you videos and operation manuals, and inform you how to use and maintain the machine.
