Home > Products > promotion products > Laboratory Vertical Planetary Ball Mill Nano Powder Grinding Machine

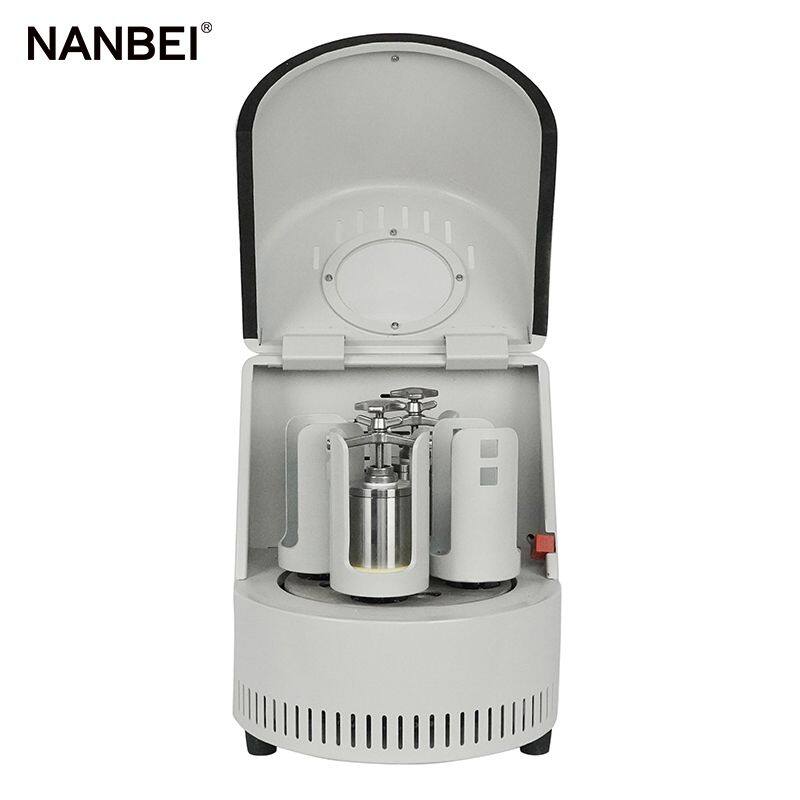

Laboratory Vertical Planetary Ball Mill Nano Powder Grinding Machine
- 1000 Set / Sets per Month
- T/T L/C D/P D/A Credit Card PayPal Cash
- 7 days
-
AD500S-H Laboratory High Shear Emulsifier Homogenizer Mixer
-
Flash Fire Point Apparatus Fully Automatic Closed Cup Flash Point Tester
-
Water Analysis Lab Titration Moisture Analyzer Karl Fischer Titrator
-
Laboratory Mixing Machine V Shape Granule Powder Mixer Blender
-
Medical Sterilization Equipments Ethylene Oxide Sterilizer ETO Sterilizer
-
Laboratory Cryogenic Tank Liquid Nitrogen Tank Biological Container
Product Details
| Brand Name: | NANBEI | Place of Origin: | China | Model Number: | XQM-0.4A |
| Type: | Ball Mill | Warranty: | 1 year | Weight: | 30KG |
| Dimension(L*W*H): | 760*490*570mm | Condition: | New | Voltage: | 220V |
| Power(W): | 0.75kw |
Product Description
Lab vertical planetary mini ball grinding machine
Feature and Description
1.3D curve shape design elegance and fashion.
2.Delicate and precise,exquisite workmanship.
3.Special gear with low noise,lower about 15-20db compared with common gear.
4.Humanization design,convenient operation.
Usage and Application
Shell of the machine is designed to be in vertical semi-circle style that is stamped and formed by precise molding
with delicate.Generous and stable outlook.Planetary disc is made by whole casting and machined parts are made
by NC machining process,drive gears are made precisely from special materials.All these factors ensure stability
and low noise of machine when running at high speed.Pressing devise of pots is convenient to operate,safe and
reliable.
Technical data
| Transimission mode | gear drive |
| Working mode | 2 or 4 pots needed |
| Max load volume | 2/3 of jar volume |
| Machine capacity | 0.4L |
| Grinding pot capacity | 50ml |
| Feed size | 3mm-10mm |
| Output size | ≥0.1um |
| Power | 0.25KW |
| Voltage | 220V50Hz |
| Total running time can be setted | 1-9999min |
| Revolution speed | 45-335rpm |
| Rotation speed | 90-870rpm |
| Speed control | Frequency control |
