Home > Products > Ductile Iron Pipe > ISO2531 EN545 EN598 black iron pipe manufactures tyton joint cement-mortar lined ductile iron pipe
ISO2531 EN545 EN598 black iron pipe manufactures tyton joint cement-mortar lined ductile iron pipe
USD $740.00 - $850.00
/ Ton
50 Tons(Min.Order)
- 10000 Ton / Tons per Month
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Manufacturing K9 ductile iron pipe sizes cast iron water supply pipe DN400 500 600 K7 K8 DI pipes
-
Bitumen painting 450mm Class K9 cement mortar lining ductile cast iron pipe for drinking water and water supply
-
ISO2531 water pipeline large diameter C30 C40 C50 C64 C100 black surface ductile cast iron pipe
-
Black ductile cast iron pipe high quality ISO2531 DN80-DN2600 tyton joint K9 cast iron pipes
-
ISO4179 BS EN545 EN598 cement coating thickness black restricted joint tyton push-on socket cast ductile iron pipes
-
Manufacturer suppliers K7 K9 K8 C40 C30 C25 ductile cast iron round water pipe ductile iron pipe
Product Details
| Brand Name: | SOLID | Place of Origin: | China |
Product Description
Products Description
SOLID products strictly meet the below standards:
ISO 2531 Ductile iron pipes, fittings and accessories for pressure pipelines.
BSEN545 Ductile iron pipes, fittings and accessories and their joints for water pipelines. Requirements and test methods.
BSEN598 Ductile iron pipes, fittings, accessories and their joints for sewage application-requirements and test methods.
ISO7186 Ductile iron pipes, fittings, accessories and their joints for the construction of drains and sewers outside buildings.
ISO4179 Ductile iron pipes for pressure and non pressure pipelines-Centrifugal cement mortar lining-general requirements.
ISO8179 Ductile iron pipes-External zinc coating.
ISO4633 Rubber Seals – joint rings for water supply, drainage and sewerage pipelines-specs for materials.
ISO 8180 Ductile iron pipes – Polyethylene Sleeve
ISO 2531 Ductile iron pipes, fittings and accessories for pressure pipelines.
BSEN545 Ductile iron pipes, fittings and accessories and their joints for water pipelines. Requirements and test methods.
BSEN598 Ductile iron pipes, fittings, accessories and their joints for sewage application-requirements and test methods.
ISO7186 Ductile iron pipes, fittings, accessories and their joints for the construction of drains and sewers outside buildings.
ISO4179 Ductile iron pipes for pressure and non pressure pipelines-Centrifugal cement mortar lining-general requirements.
ISO8179 Ductile iron pipes-External zinc coating.
ISO4633 Rubber Seals – joint rings for water supply, drainage and sewerage pipelines-specs for materials.
ISO 8180 Ductile iron pipes – Polyethylene Sleeve

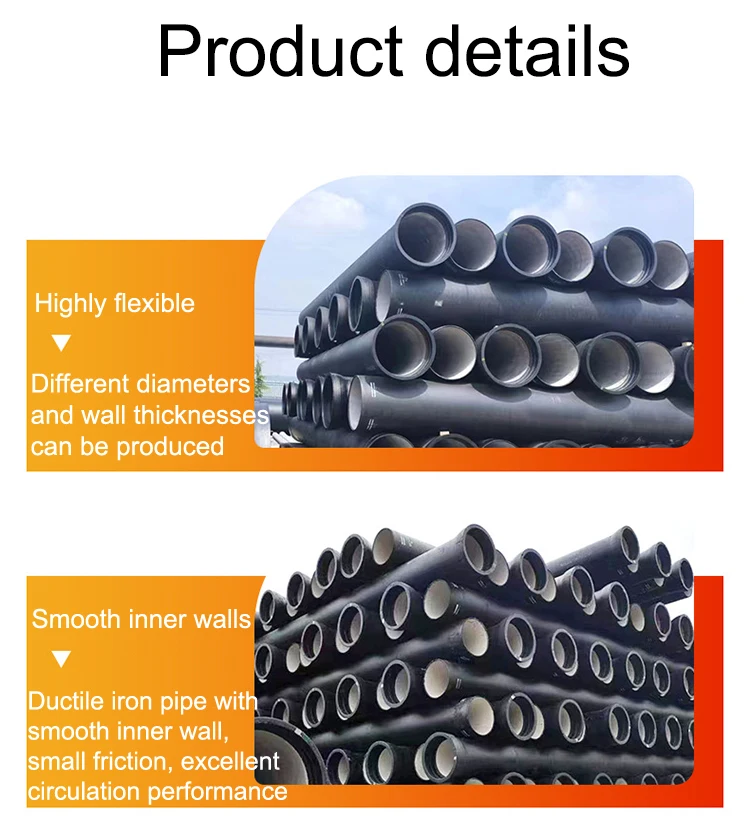

Ductile iron pipe
Introducing the Ductile Iron Pipe - a reliable and durable solution for various fluid transportation needs. Designed to withstand extreme conditions and deliver long-lasting performance, this pipe is the go-to choice for industries such as water supply, wastewater management, and gas distribution. The Ductile Iron Pipe is engineered with high-quality materials and advanced manufacturing techniques, resulting in a product that guarantees exceptional strength and flexibility. Its unique composition allows for superior resistance to corrosion, cracks, and leaks, ensuring a reliable and safe fluid transportation system. With its robust construction, the Ductile Iron Pipe can handle high-pressure applications, making it ideal for distribution networks and industrial pipelines. Its ability to withstand external loads, such as soil and traffic, further adds to its credibility in infrastructure projects. One of the key advantages of the Ductile Iron Pipe is its ease of installation. Featuring a push-on joint design, it enables quick and efficient assembly, minimizing downtime and labor costs. Additionally, its compatibility with a range of joints and fittings provides flexibility in system design and modifications. The Ductile Iron Pipe also stands out for its excellent flow characteristics. Its smooth interior surface ensures optimal hydraulic performance, minimizing friction loss, and maximizing flow capacity. This not only improves operational efficiency but also reduces energy consumption and operating costs. Furthermore, the Ductile Iron Pipe’s long service life adds significant value to any project. Its durability and resilience to environmental factors, including soil movements and temperature variations, contribute to its longevity. This translates into reduced maintenance and replacement costs over time. Another noteworthy feature of the Ductile Iron Pipe is its sustainable nature. Made from recycled materials, it aligns with environmental goals and reduces the carbon footprint associated with infrastructure development. Its recyclability also ensures that it can be repurposed at the end of its service life, contributing to a circular economy. Investing in the Ductile Iron Pipe means investing in a reliable, durable, and efficient solution for fluid transportation. Its exceptional performance, ease of installation, and long service life make it a top choice for infrastructure projects worldwide. Discover the advantages of the Ductile Iron Pipe and experience the peace of mind that comes with a robust and sustainable fluid transportation system. Choose a pipe that exceeds expectations and delivers reliable results for years to come.
Specifications:
1) The standard of pipe: ISO 2531, EN545 , EN598.
2) Pipe class: K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.
5) Internal lining: cement mortar lining as per ISO4179
6) Zinc coating: at least 130g/m2 as per ISO 8179
7) Bitumen painting: at least 70um as per ISO 8179
8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
9) DN 80 - 2,600 mm
10) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time
11) Checked by automatic inspection equipment
12) Chemical composition: (%)
3. a) C: 3.5 - 4.0
4. b) Si: 1.9 - 2.6
5. c) Mn:0.15 - 0.45
6. c) P: <0.06
7. d) S: <0.02
13) Mechanical properties
1. a) Tensile strength: ≥420MPa
2. b) Yield strength: ≥300Mpa
3. c) Hardness: ≤230HB
4. d) Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥7
1) The standard of pipe: ISO 2531, EN545 , EN598.
2) Pipe class: K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.
5) Internal lining: cement mortar lining as per ISO4179
6) Zinc coating: at least 130g/m2 as per ISO 8179
7) Bitumen painting: at least 70um as per ISO 8179
8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
9) DN 80 - 2,600 mm
10) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time
11) Checked by automatic inspection equipment
12) Chemical composition: (%)
3. a) C: 3.5 - 4.0
4. b) Si: 1.9 - 2.6
5. c) Mn:0.15 - 0.45
6. c) P: <0.06
7. d) S: <0.02
13) Mechanical properties
1. a) Tensile strength: ≥420MPa
2. b) Yield strength: ≥300Mpa
3. c) Hardness: ≤230HB
4. d) Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥7
14) Process and testing:
1. a) Induction furnace and treated metal (Chemical analysis of raw material, spheroidizing & Nodularity)
2. b) Casting (Visual check and weight check)
3. c) Heat treatment (Micro structure)
4. d) Hydrostatic test (Pressure test)
5. e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance)
6. f) Zinc spraying (Thickness testing)
7. g) Lining and coating (100% visual check, thickness testing randomly)
8. i) Marking and packing (100% visual check)
15) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc.
Packing: bundled with steel belts or in bulk
Shipment: in bulk or container
1. a) Induction furnace and treated metal (Chemical analysis of raw material, spheroidizing & Nodularity)
2. b) Casting (Visual check and weight check)
3. c) Heat treatment (Micro structure)
4. d) Hydrostatic test (Pressure test)
5. e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance)
6. f) Zinc spraying (Thickness testing)
7. g) Lining and coating (100% visual check, thickness testing randomly)
8. i) Marking and packing (100% visual check)
15) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc.
Packing: bundled with steel belts or in bulk
Shipment: in bulk or container
