50mm - 200mm Customized 12v 24V 48V High Torque Cnc Stepper Motor

FOB Price

USD $10 - $100 / Piece

10 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T
Delivery Detail:5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name:	ODM OEM	Place of Origin:	China	Type:	Hybrid
Phase:	2	Certification:	CCC, CE	Current / Phase:	2
Holding Torque:	High Torque

Product Description

50mm - 200mm Customized 12v 24V 48V High Torque Cnc Stepper Motor

Markets
* device, machine and plant manufacturing
* tufting machines
* labelling technology
* post- and package handling
* assembly automation

Specification

Item	Hybrid Stepper Motor
Model Number	86HS
Phase	2
Current / Phase	Customized (3 - 7A)
Application	CNC Machine
Shaft	Customized (Standard: 14mm D-shaft / Round / Keyway)
Body length	50mm - 200mm
Voltage	24V-48V
Frame Size	86*86mm
Torque	2.8N.m - 12.2N.m

Model No	Step Angle (°)	Rated Voltage (V)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (Kg.cm)	Motor Length (mm)	Leads No.	Motor Weight (Kg)
86HS65-3004	1.8	3.3	3	1.1	6.5	28	65	4	1.7
86HS68-4004	1.8	1.3	4	0.33	1.6	35	68	4	1.7
86HS78-4004	1.8	1.5	4	0.38	2.5	35	78	4	2.3
87HS78-4204	1.8	1.9	4.2	0.45	4	45	78	4	2.3
87HS78-6008	1.8	3.0	6	0.5	4	45	78	8	2.3
86HS82-4504	1.8	1.4	4.5	0.32	2.8	45	82	4	2.5
86HS82-5608	1.8	2.0	5.6	0.35	3	50	82	8	2.5
86HS100-5004	1.8	2.5	5	0.5	4	68	100	4	3.2
86HS100-5008	1.8	2.5	5	0.5	4	65	100	8	3.2
86HS118-6004	1.8	3.6	6	0.6	6	85	118	4	3.7
86HS118-5608	1.8	3.4	5.6	0.6	6	85	118	8	3.7
86HS156-5504	1.8	3.9	5.5	0.7	9	120	156	4	5.5
86HS156-6204	1.8	3.6	6.2	0.75	9	122	156	4	5.5

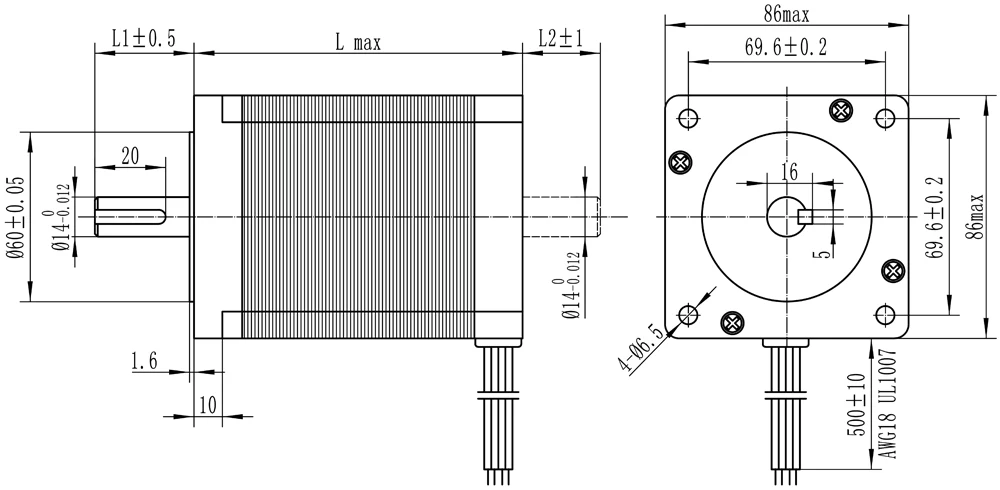

Dimensions(unit:mm)

Customized Design

Related Stepper Motor

Nema 17 Stepper Motor

Frame size: 42*42mm

Motor length: 29-60mm(can be customized)

Holding torque: 1.8-7Kg.cm

ODM&OEM: Provide

Nema 23 Stepper Motor

Frame size: 57*57mm

Motor length: 41-112mm(can be customized)
Holding torque: 0.32-3N.m
ODM&OEM: Provide

Nema 11 Stepper Motor

Frame size: 28*28mm

Motor length: 28-51mm(can be customized)
Holding torque: 450-1200g.cm
ODM&OEM: Provide

Nema 42 Stepper Motor

Frame size: 110*110mm

Motor length: 99-201mm(can be customized)
Holding torque: 11-33N.m
ODM&OEM: Provide
