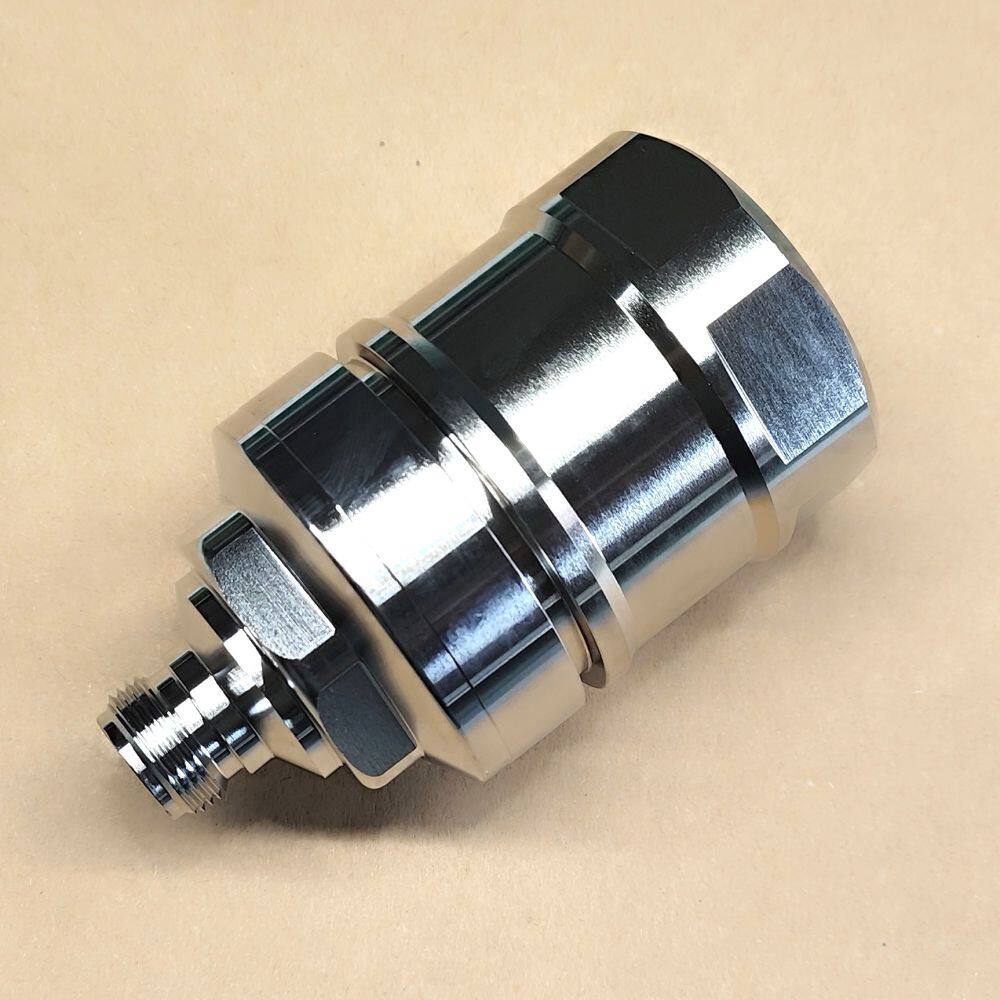

N Female Connector for 1-1/4" Radiating Cable

N Female Connector for 1-1/4" Radiating Cable

These high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface . The connectors provide outstanding value to users because they permit quick, easy and reliable installation at any location. They attach to prepared cable in one piece assuring error-free attachment. All connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in both type N 、DIN and 4310 interface.

FEATURES / BENEFITS

1、Fast and Easy Installation

2、Best in class PIM performance

3、Low VSWR

4、Totally Waterproof - Assures safe, long term operation in the harshest of environments.

5、RoHS (EU) and CRoHS (China) compliant .

Material and Plating

1、Inner Conductor Pin..............................................................................Brass / Silver Plating

2、Inner Conductor Socket.......................................................................Tin Bronze / Silver Plating

3、Insulator.....................................................................................................PTFE/TPX

4、Body & Outer Conductor.....................................................................Brass / Trimetal Plating

Electrical Specifications

1、Characteristics Impedance..................................................................50 Ohm

2、Frequency Range....................................................................................DC~3.8GHz

3、Insulation Resistance.............................................................................≥5000MΩ

4、Dielectric Withstanding Voltage........................................................2500V rms

5、Operating Voltage..................................................................................1500V rms

6、Center contact resistance....................................................................≤1.0 mΩ

7、Outer contact resistance......................................................................≤0.25 mΩ

8、Insertion Loss...........................................................................................≤0.10dB

9、VSWR..........................................................................................................≤1.10

10、PIM3(2*43dBm)................................................................................... ≤-155dBc

Environmental & Mechanical Specifications

1、Durability (matings)...............................................................................≥500 cycles

2、Mechanical Shock Test Method........................................................ MIL-STD-202, Method 213, Test Condition D

3、Vibration Test Method...........................................................................MIL-STD-202, Meth. 204, Cond. A

4、Temperature Range...............................................................................-65°C to +85°C

5、RoHS............................................................................................................Compliant
