Metallurgy Rolling Mill Wear Liner: Precision Rolling Assistant

Name: Metallurgy Rolling Mill Wear Liner: Precision Rolling Assistant
Brand: wodon
Availability: InStock

FOB Price

USD $100 - $300 / Square Foot

1 Square Foot(Min.Order)

Supply Ability 1000 Square Mile / Square Miles per Month
Port shanghai
Payment Terms:T/T L/C
Delivery Detail:14 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name:	wodon	Place of Origin:	China	Model Number:	72109000
Length:	1400	Thickness:	Uniform Overlay Thickness 0-0.5mm	Type:	Other, Wear Resistant Plate
Width:	3500	Application:	Other, Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard	Surface Treatment:	Other
Technique:	Other, Fcw, Saw	Standard:	AISI, ASTM, BS, DIN, GB, JIS	Grade:	AAAA
Special Use:	Wear Resistant Steel

Product Description

Metallurgy Rolling Mill Wear Liner: Precision Rolling Assistant

1, General Description

Chromium carbide composite cladding fusion bonded to a mild steel backing material.
The deposit has been realized by means of oscillated welding and a wear resistant coating applied by submerged arc welding.
Fine cracks perpendicular to the welding bead is normal due to natural stress relieving in a very hard matrix.
Very high volume of chromium carbides evenly distributed throughout the uniform thickness of the deposit.
Plate hardness ranges from HRC58-65.

2, Application

Wodonplate Suitable for applications involving high abrasion and low to medium impact.

Typical applications are as follows:

Bin and hopper liners
Slurry pipes and bends
Chute and feeders liners
Belt conveyors
Dump truck bodies liner
Mining and earth moving equipment
Mill shell liners
etc...

3, Specification

Thickness(backing plate + weld overlay)	L x W (mm)
4+4, 5+5	1,400 x 3,000
6+6, 8+5, 8+6, 8+8	1,400 x 3,500
10+8, 10+10, 10+20, 12+12, 12+20, 14+26, 12+32, 20+30..	1,400 x 3,500 2,100 x 3,500

Carbon	Silicon	Manganese	Chromium	Iron
3.5-6.0%	1.0-3.0%	1.0-3.0%	27-40%	Balance

Note: Carbon and Chromium content varies in different plate thickness.

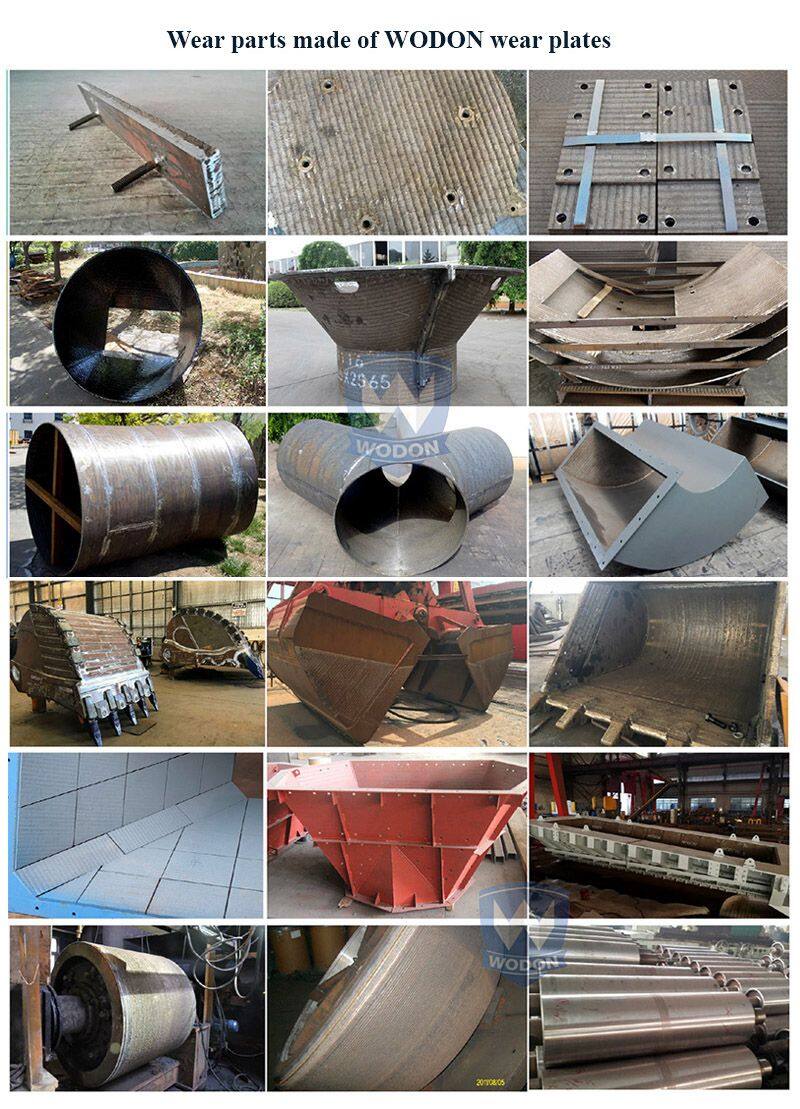

4, Fabrication
The backing mild steel plate provides Wodon brand overlay plates with structural integrity, which makes our overlay plates fabricated with zero damage to welding overlay, regardless of the shape and complexity of the structure. Wodon has the capabilities to manufacture and further process such fabrications or to supply formed, read-to-go wear liners.

Cutting: Wodon overlay plates could be cut by plasma, waterjet, laser. Plasma cutting is the recommended method for cutting our plate

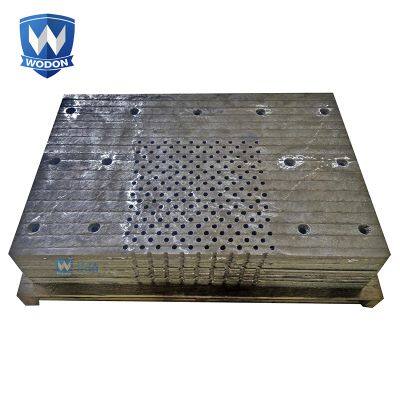

Drilling: Straight holes and countersunk holes
Studs Welding: Wodon plate can be fabricated with studs welded to backing of wear plate (M12, M16, M20 and M24)
Joint Welding: Wodon wear plate can be welded and assembled into kinds of wear parts
