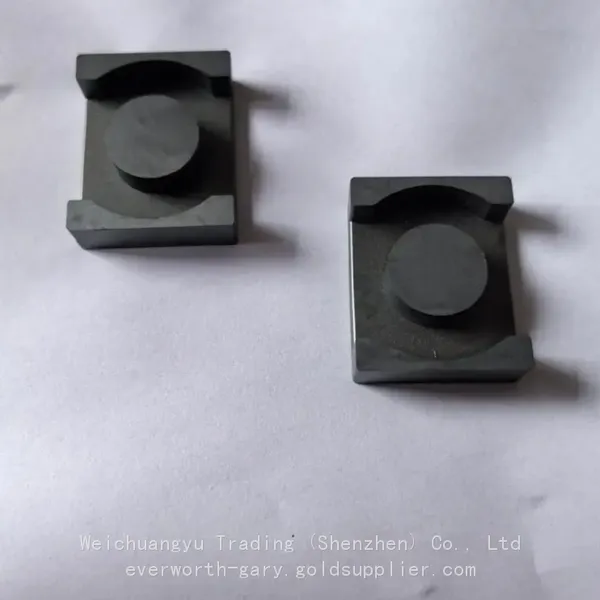

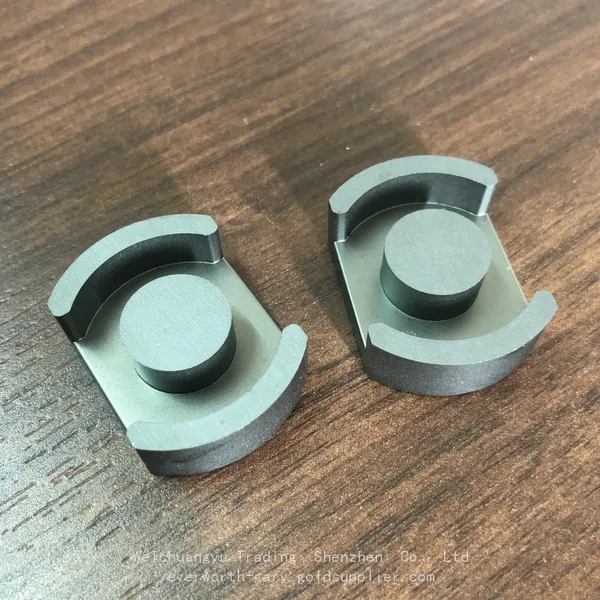

FERROXCUBE Ferrite Cores ER32/6/25-3C95 CLM-ER32/6/25-C

RefreshRetryDiagnosis

code：

vid:

uuid:

requestId:

Time：

提示信息

Subtitle/CC

Speed

Quality

Audio Track

SpeedNormal

Subtitle/CC

Audio Track

Quality

00:00 / 00:00

OKCancel

EVERWORTH represents the following brands:

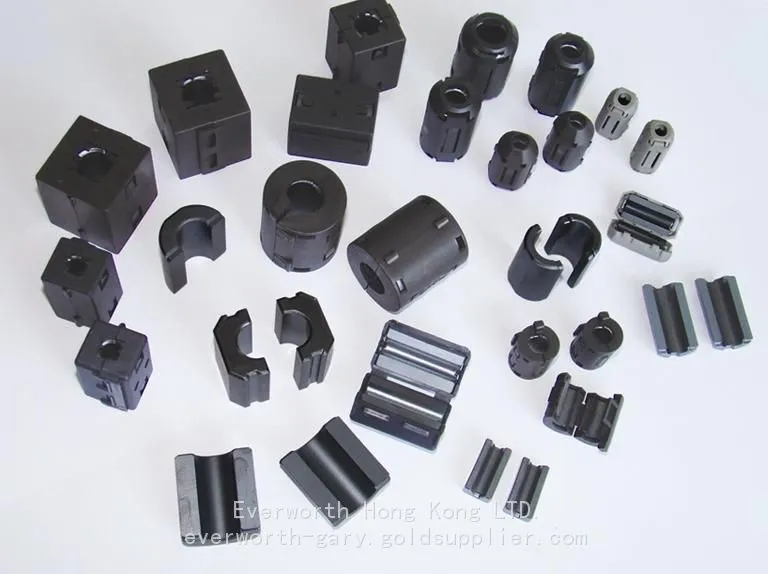

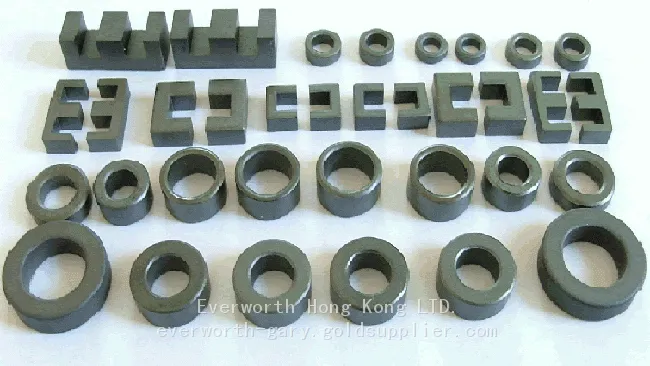

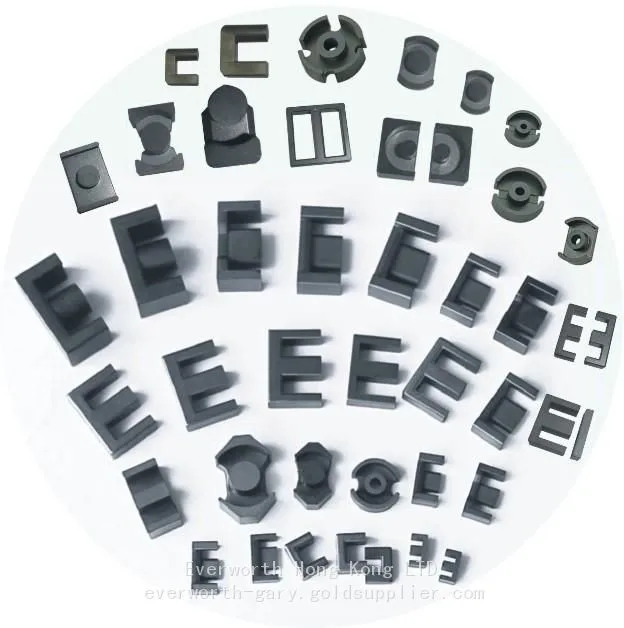

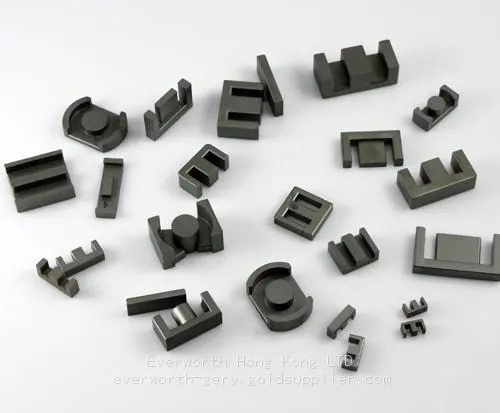

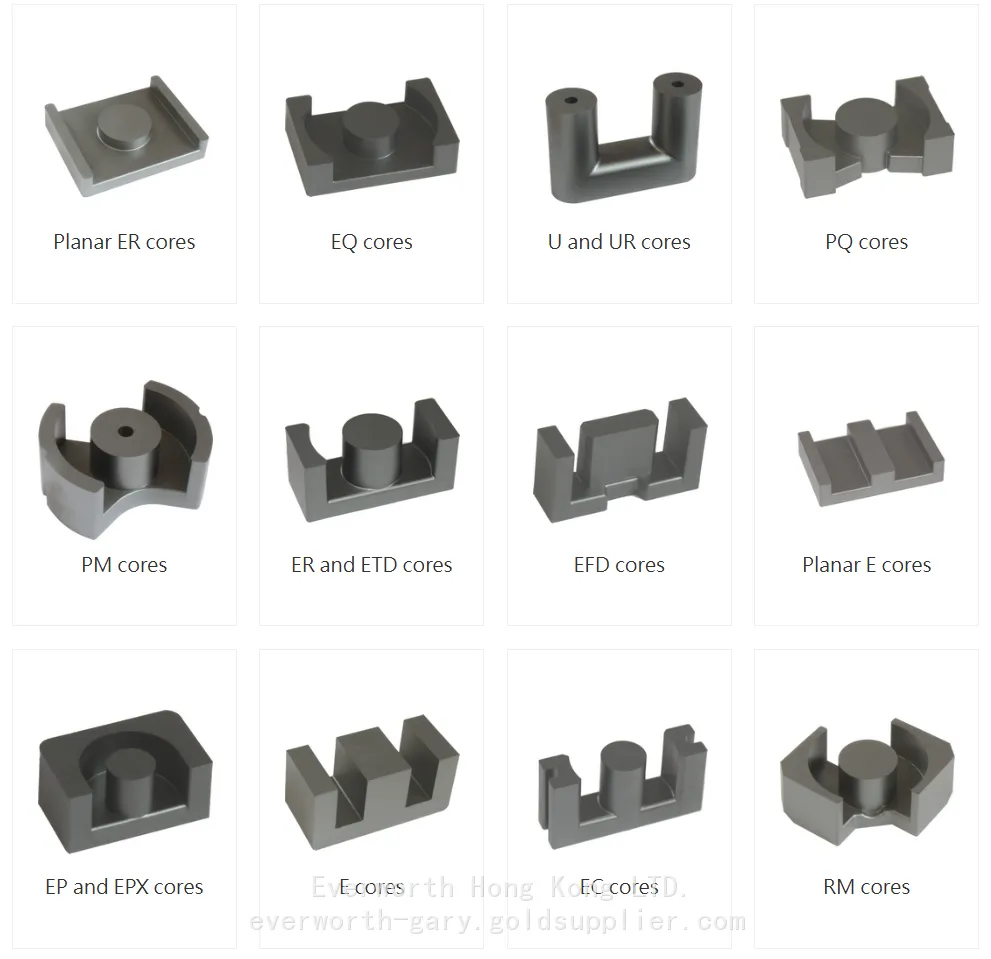

1.Ferrite Core: Ferroxcube, MAGNETICS,DMEGC,EPCOS/TDK,ARNOLD,Laird,ACME,Fair-Rite,CSC；

2. Thin film capacitors:FEIDA, Japan OKAYA (discharge tube, filter, surge protector, X2 capacitor);

3. Bobbin: FERROXCUBE,SHULIN

4. Customize high-frequency and low-frequency transformers, wound inductors, etc;

Material properties:

3C91 3000 370 220 is an intermediate frequency power material with low power loss around 60 ° C, used for power supplies and general transformers with frequencies up to 0.33 MHz

3C92 1500 460 280 is a low-frequency, high Bsat power material used for output chokes and power inductors with frequencies up to 0.2 MHz

3C94 2300 380 220 is a low-frequency power material used for power supplies and general transformers with frequencies up to 0.3 MHz

3C95 3000 410 215 is a medium low frequency power material with low power loss in the range of 25 to 100 ° C, used for power transformers with frequencies up to 0.4 MHz. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile/handheld devices.

3C96 2000 440 240 Medium low frequency power materials for power supplies and general transformers with frequencies up to 0.4 MHz

3C97 3000 410 215 is a medium low frequency power material with low power loss in the range of 50 to 140 ° C, used for power transformers with frequencies up to 0.4 MHz. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile/handheld devices.

3F36 1600 420 230 is a medium to high frequency power material used for power supplies and general transformers with frequencies ranging from 0.3-1 MHz. Low power loss in the range of 25 to 100 ° C. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile handheld devices.

3F4 900 350 220 is a high-frequency power material used for power supplies and general transformers with frequencies of 1-3 MHz

3F46 750 430 280 is a high-frequency power material used for power supplies and general transformers with frequencies of 1-3 MHz. The temperature characteristics have been adjusted and can operate stably within the range of 25-100 ° C. The product size is 40mm larger

4C65 125 340 350 Low permeability NiZn ferrite for RF tuning, broadband, and balun transformers
