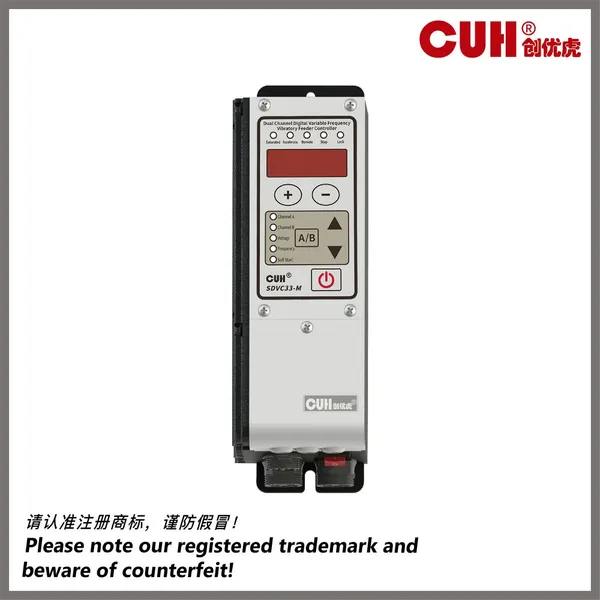

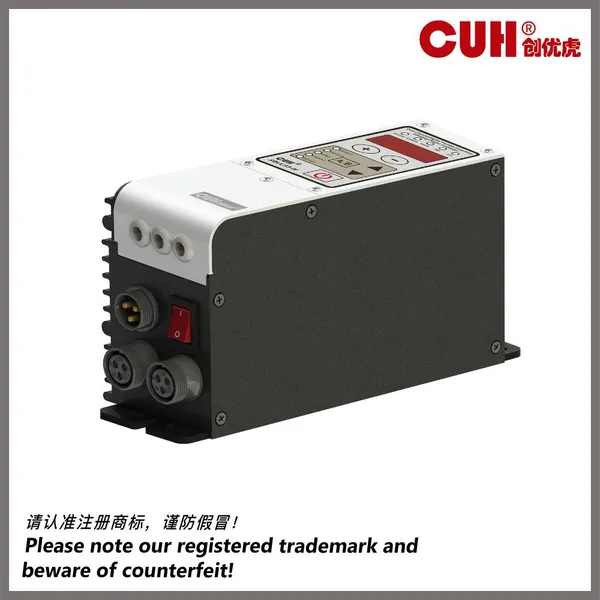

SDVC33-M（3.5A）Dual Channel Digital Variable Frequency Vibratory Feeder Controller

SDVC33 Dual Digital FM Vibration Feed Controller is a compact general-purpose dual FM output controller that provides unique performance through the use of the latest electronic technology and careful design. Its special features include:

◆Dual-channel power output that can distribute current arbitrarily, supports setting the overcurrent protection current of each channel.

◆Dual-channel working mode can choose frequency tracking, voltage tracking, or frequency-voltage dual tracking.

◆During frequency tracking, the phase difference between the two outputs can be set from -180°~180°.

◆The output frequency range covers 5Hz to 999.9Hz with 0.1Hz accuracy.

◆Brake function to quickly stop the vibratory feeder by shifting the current phase by 180° during the soft-stop process.

◆Intelligent photoelectric ports support photo-sensors, NPN, or PNP switch sensors.

◆Overflow control port supports NPN, PNP, or auto-adaptive type.

◆Control output port supports NPN, PN, P, or push-pull output mode.

◆The remote speed control port can be cross-selected, allowing one potentiometer to control two outputs at the same time.

◆The remote control coefficient function can magnify or reduce the control effect of the remote control voltage by 1 time.

◆LED display brightness adjustment function supports 32-level brightness adjustment.

◆User parameter save and restore function, allowing users to set parameters and save them in the user group for easy recovery.

◆Factory reset function supports sub-channel A/B recovery or whole controller recovery.

◆Complete protection functions include: main output short-circuit protection, overcurrent protection, overheating or overcooling protection, undervoltage/overvoltage protection, control output short-circuit protection, 24V output short-circuitprotection, speed regulation 5V output short-circuit protection.
