Mud-stone separator: reduce labor costs and improve production efficiency

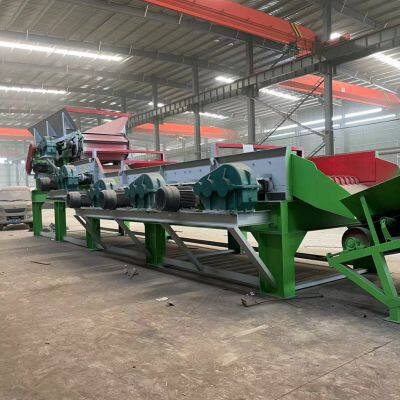

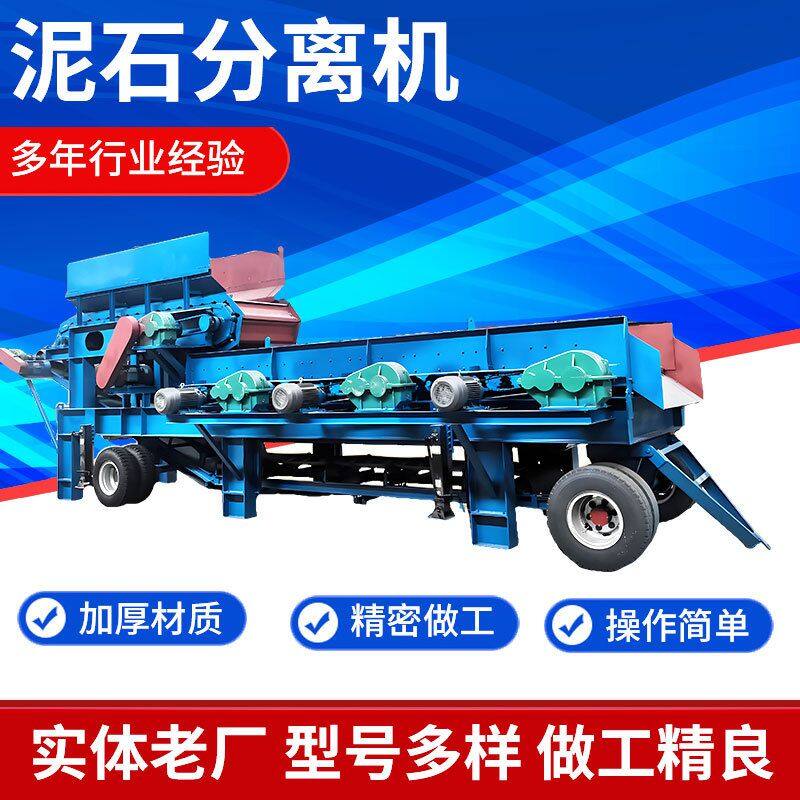

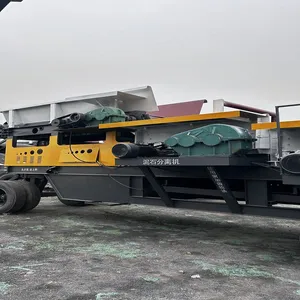

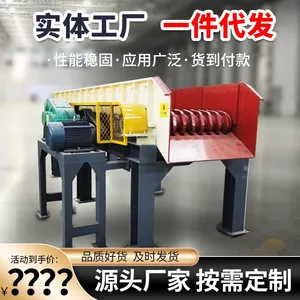

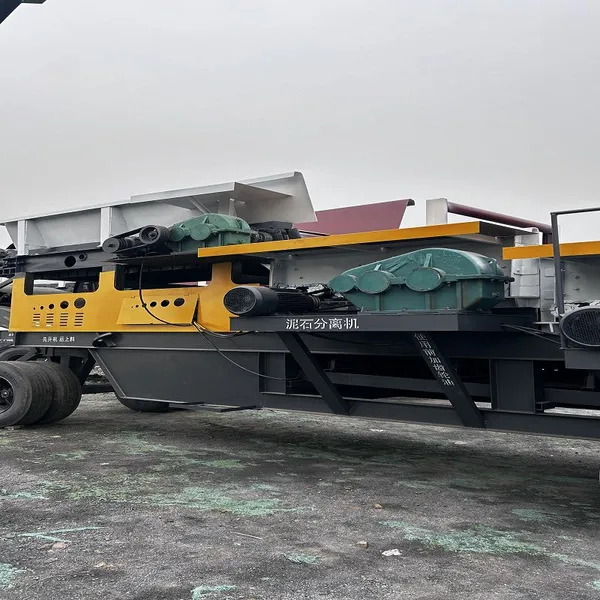

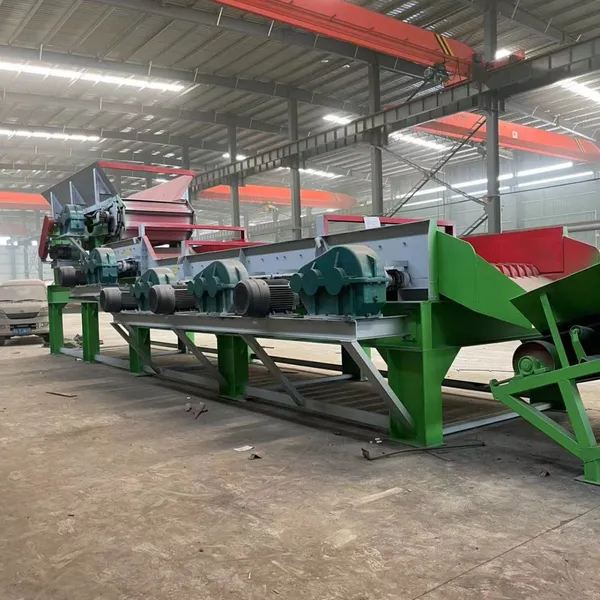

The mud and stone separator is an efficient and adaptable equipment used to separate mixtures such as soil and stone.

I. Working principle:

The mud and stone separator achieves precise stratification and rapid screening by simulating the natural precipitation process and strengthening the collision and condensation effect between particles. When the equipment is working, the motor drives the linkage shaft of the multi-stage device to carry out a regular flipping movement, and the sieve layout on the roller rotates through the gear to drive the wheel chain. After the material enters the equipment, according to the size of the sieve gap, the material larger than the gap is transported from the top of the sieve plate to the next process, while the material smaller than the gap falls from the bottom of the collection belt and is sent out of the equipment by the belt machine.

II. Equipment features:

1. High efficiency: The mud and stone separator can accurately separate mud and stone mixtures, improve the classification efficiency of solid waste, strong processing capacity and high production efficiency.

Two. Adaptability: The equipment is suitable for a variety of materials such as viscous soil with high water content and sand and stone of different sizes, and can carry out particle size separation and maintain continuous operation.

3. Reliability: The equipment design is solid and reliable, the maintenance rate is low, and it can handle a large number of materials to ensure long-term stable operation.

4. Environmental protection: The mud and stone separator reduces the dependence on chemical auxiliaries in the separation process and reduces the risk of environmental pollution. At the same time, it adopts a closed design to effectively reduce dust pollution.

III. Instructions for use:

1. Installation and inspection: The equipment should be fixed on a special foundation and fixed by pre-buried bolts. After the new screening machine is installed, it needs to be checked for idle operation to ensure that the motor rotates synchronously and reversely, and there is no abnormal sound.

Two. Operation steps: Before starting the machine, you need to check whether the bearing seat butter, reducer lubricating oil, etc. are sufficient. When starting the machine, turn on the mud and stone separator first. After the speed is adjusted to the best, turn on the feeder and belt conveyor. When screening materials, materials should be evenly put in to avoid large impact damage to the equipment.

3. Adjustment and maintenance: Users can adjust the speed of the screening machine according to the gap of the screening machine and the specific gravity of the material to achieve the best screening effect. The equipment needs to be filled with butter and lubricating oil regularly, check whether the bearing block screws are loose, and carry out necessary maintenance.

IV. Field of application:

Mud and stone separators are widely used in mining, construction sites, concrete mixing stations, household waste treatment and other fields. In mining, it is used to separate silt and impurities in ores; in construction sites, it is used to separate sand and soil in construction waste to realize the reuse of resources; in concrete mixing stations, it is used to clean and separate residual concrete in concrete mixers; in household waste treatment, it is used to separate recyclables and non- Recyclables promote the recycling and reuse of resources.
