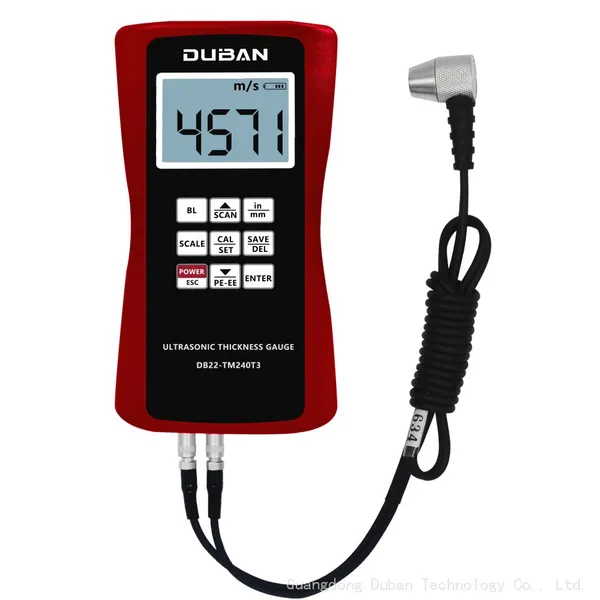

Ultrasonic Thickness Gauge DB22-TM240T3

【Product Descriptions】

The instrument is suitable for thickness measurement andcorrosion measurement of boilers, oil storage tanks, pipes,pipes, slabs, forgings, flanges, hull, deck, rails and machinedparts in petrochemical industry, shipbuilding industry,automobile manufacturing industry, power station and machine manufacturing industry. For most of the ultrasonic materials can be used to measure the thickness of the instrument, such as: metal, ceramic, plastic, nylon, glass and so on.

【Product Features】

* Multi-mode: Pulse-Echo mode (used for flaw and pit detection) and Echo Echo mode (used for measure ments eliminating paint or coating thickness).

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use USB/RS-232 data output to connect with PC.

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the downand-back

travel path, and then multiplied by the velocity of sound in the material.

【Product Specifications】

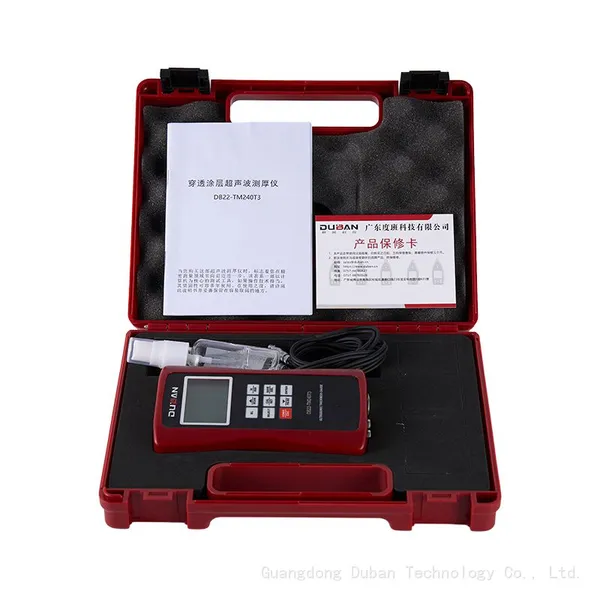

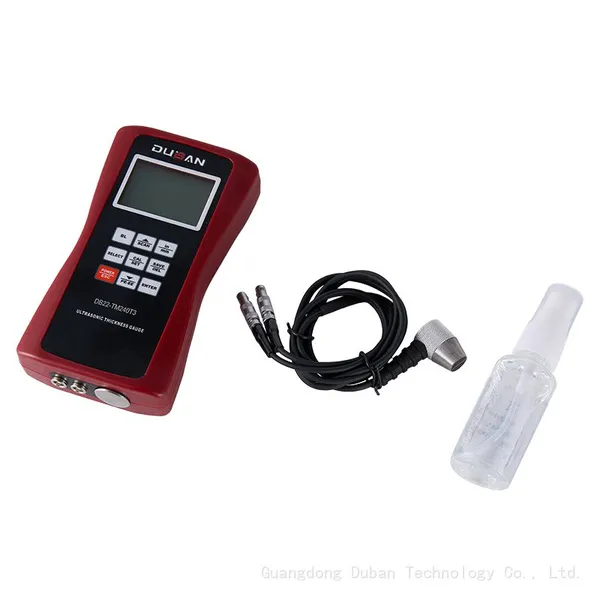

【Product Accessories】
