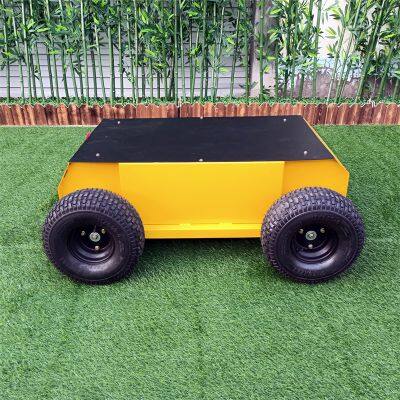

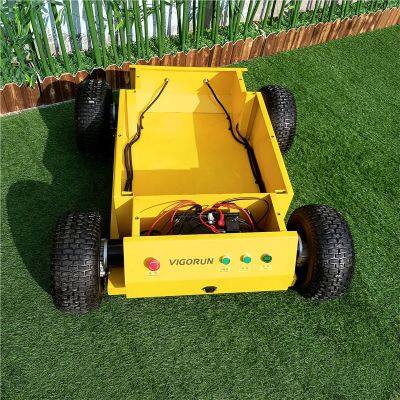

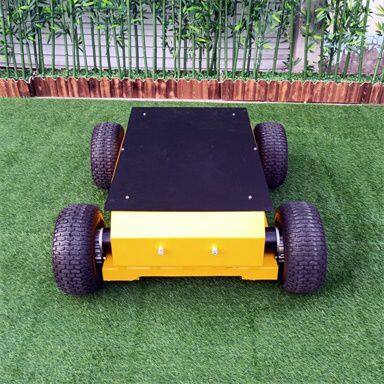

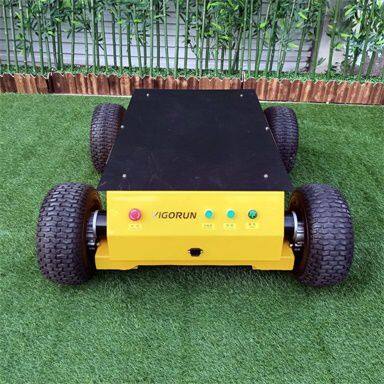

Remote Control Robot Base (RWC200)

Remote Control Robot Base (RWC200)

Official website:

Email: 816@ssrbot.com/ vigoruntech16@gmail.com

WhatsApp/WeChat: +86 19563012862

Features:

1) Beautiful

The remote control robot chassis is beautiful in appearance. The fuselage is large, and the space reserved for development is sufficient.

2) Strong

The bottom of the fuselage is reinforced to carry heavy loads. The installation position of the travel motor has also been reinforced to prevent deformation and displacement.

The tires are lawn tires with a width of 15cm, which are beautiful, durable, large in width and strong in support.

3) Mature technology

This product is modified on the basis of our very mature remote control lawn mower, an economical chassis product.

It adopts the mature walking motor controller on our remote control lawn mower, which has the characteristics of sensitive response and fast response speed.

The built-in smart chip can intelligently detect the current and heating conditions, which can ensure stable use all year round.

And it has a slow start function, the operation is smooth, and there will be no frustration when accelerating or decelerating suddenly.

4) Scalability

Equipped with a function expansion HUB, which can control additional 4 channels, it can easily control and expand other functions required by customers without professional remote control knowledge.

On the basis of our chassis, you can freely add other functional modules to create a new vehicle that meets your own needs.

Specification:

Walking Speed: 0~6km/h

Working Temperature: -20~55°

Min Ground Clearance: 90mm

Remote Control Range: 200m

Walking Motor

Motor Type: Brush electric traction

Voltage / Power: 24V / 350W

Reduction Ratio：23.2:1

Rotating Speed: 75RPM

Rated/Max Output Torque: 18.4/55Nm

Wheel: 15X6.00-6 vacuum tire

Battery: 24V 20Ah

Remote Control Channel: 7

Extended Controllable Channel: 4

Rated Payload: 200kg

Wheelbase: 810mm

Track: 890mm

Overlay Panel: 990*625mm

Machine Size: 1170*1050*430mm

Machine Weight: 98kg

Package Size: 1250*1110*610mm

Gross Weight: 130kg
