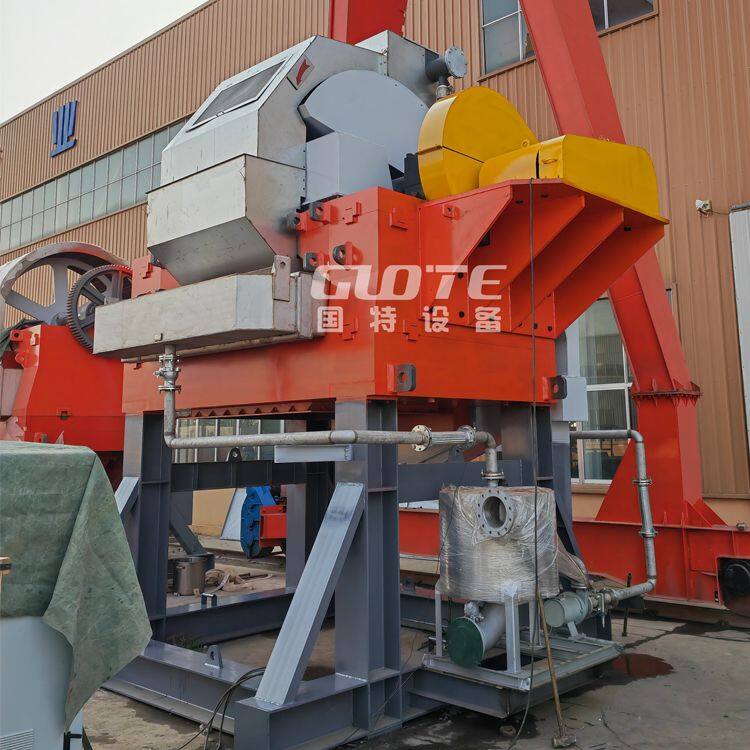

1.8T Mineral Separator Vertical Ring Wet High Gradient Magnetic Separator for Iron Ore Hematite, Magnetite

for weak magnetic metal ore such as -1.2 mm (-200 mesh accounting for 20-30%) Hematite, Limonite,Siderite, manganese ore, ilmenite, Wolframite, black scheelite separation, black tungsten and cassiterite separation.

Outstanding Advantages

1. Unique magnetic medium with high induced magnetic field，The magnetic medium adopts a patented product developed by GUOTE company, which can generate a high gradient magnetic field with an induced field strength of over 20000 Gauss. 2. The oil-water composite dual cooling method is a cooling method used by the national special equipment vertical ring high gradient magnetic separator. It adopts the principle of oil-water heat exchange and uses flushing water to quickly remove the heat generated by the coil, making the temperature rise of the coilless than 25 ° C and making the magnetic field more stable. 3.The vertical ring high gradient magnetic separator is equipped with a fault diagnosis system and a remote control system, achieving intelligent operation and control of the equipment. 4. According to the characteristics of different materials, pulse devices can be selected, which have the characteristics of good ore flushing effect, good sorting effect, and water saving.

Introduction of Working Principle

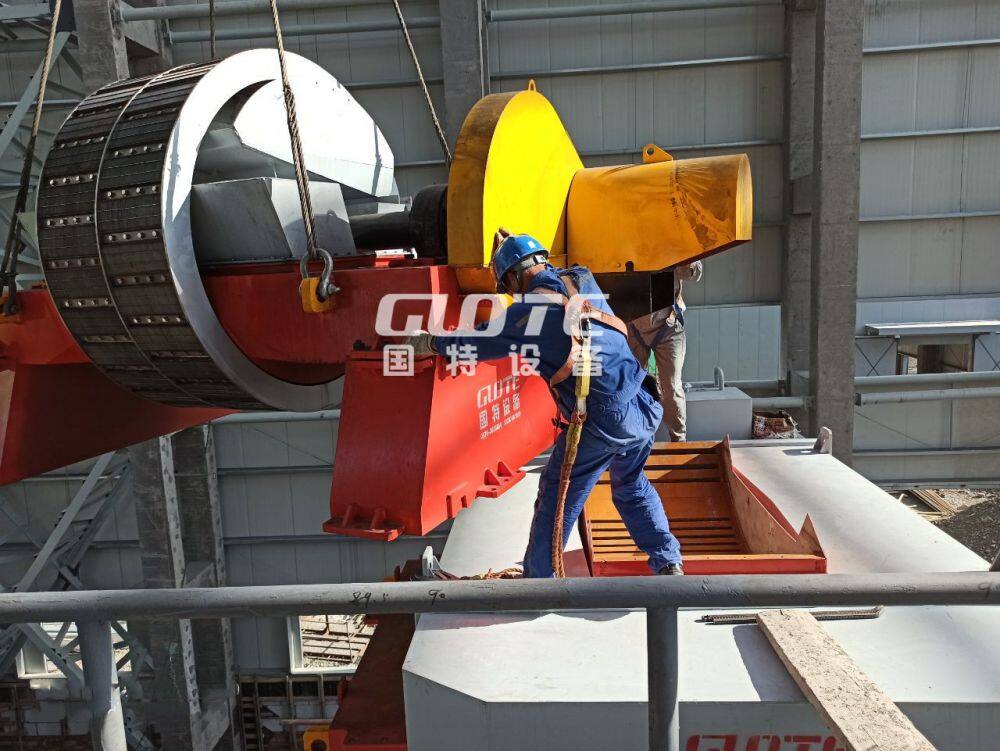

The slurry enters the feeding hopper through the feeding pipe, and flows through the gap of the upper magnetic field through the rotating ring. The induction magnetic medium composed of high conductivity stainless steel rods inside the rotating ring is magnetized in the background magnetic field, forming a high gradient magnetic field on the surface of the magnetic medium. The magnetic particles in the slurry are adsorbed on the surface of the magnetic medium, and are carried to the top non magnetic field area as the rotating ring rotates. The magnetic material is flushed into the concentrate hopper through flushing with pressure flushing water, Non magnetic particles flow into the tailings hopper along the gap below the magnetic pole and are discharged. To achieve material sorting. The magnetic medium at the lower part of the rotating ring is immersed in the liquid level of the ore slurry. At the same time as the ore slurry is injected, the stroke box installed on one side of the tailings tank continuously moves back and forth, causing the ore slurry in the sorting room to fluctuate up and down through the drum film. The pulsating fluid force keeps the ore particle group in a loose state throughout the sorting process, effectively removing impurities from the particle group and significantly improving the grade of the concentrate.
